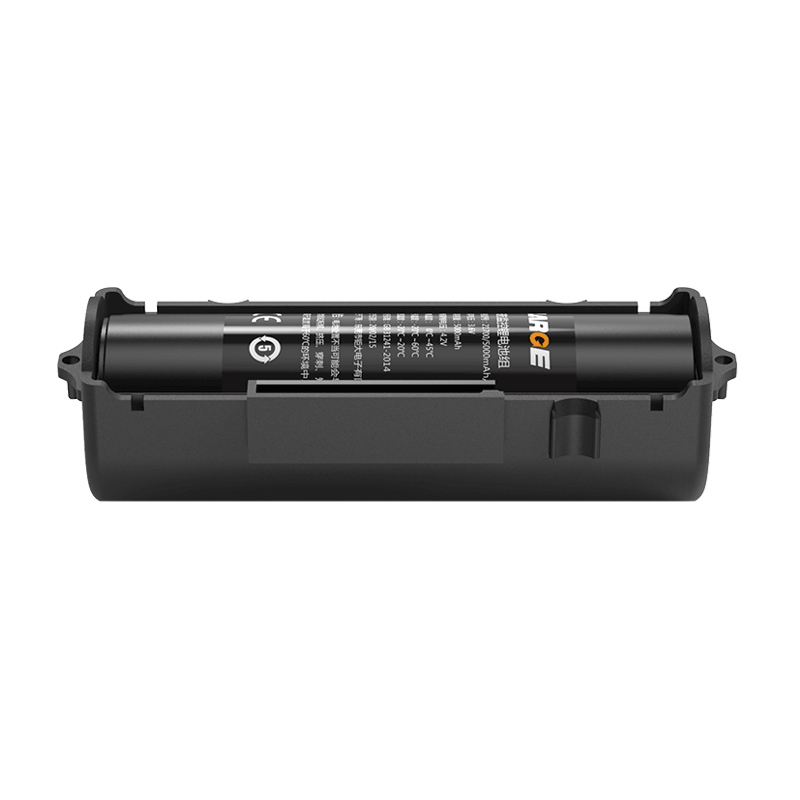

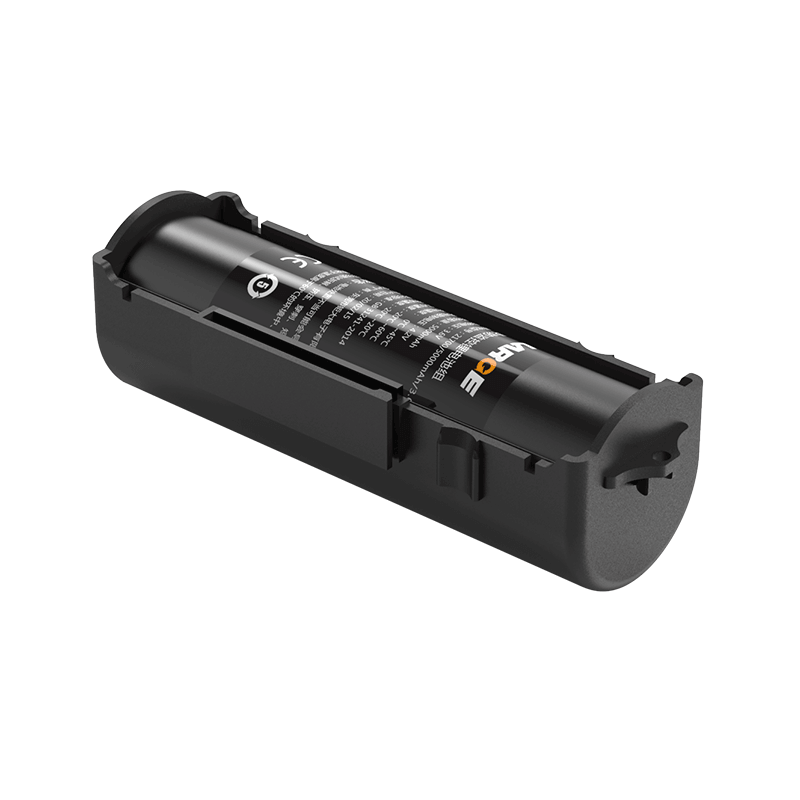

21700 3.6V 5000mAh Lithium-ion Battery for Security and Monitoring

Customization | Free Battery Solution

Product Detail

Project number: 01DQ0023-56

Cell model: 21700/5000mah /3.6V

Battery size: 21700/5000mah /3.6V

Nominal voltage: 3.6V

Nominal capacity: 5000mAh

Charging current: ≤ 2.5A

Discharge current: 2.5A

Instantaneous discharge current: 6A

Discharge cut-off voltage: 2.8V

Finished product internal resistance: ≤150mΩ

Battery weight: 100g

Product size: 24.4*24.6*79.0mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ° C to 20 ° C

Intelligent lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: Security monitoring
