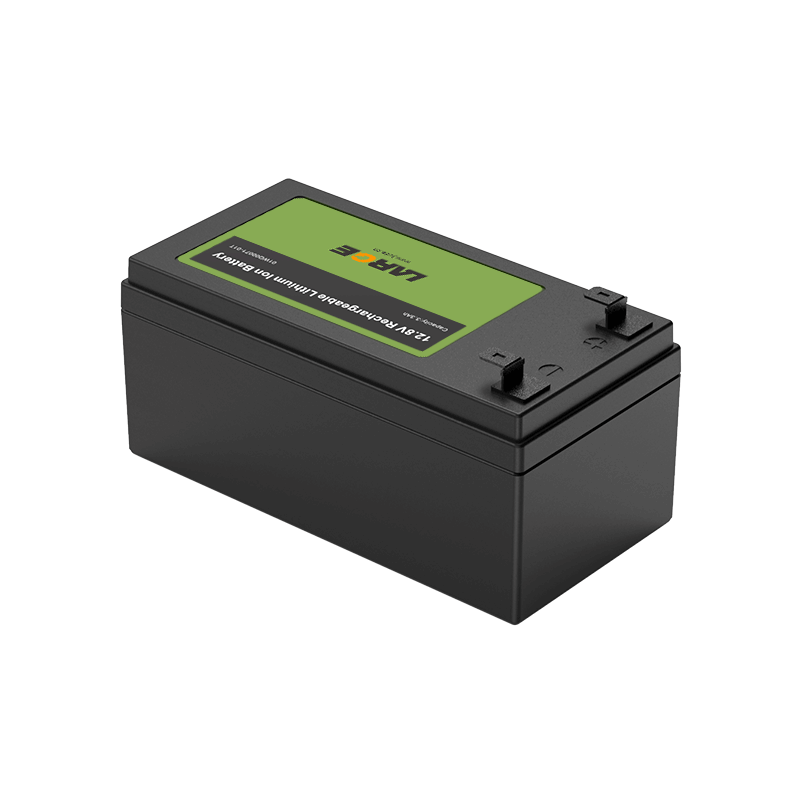

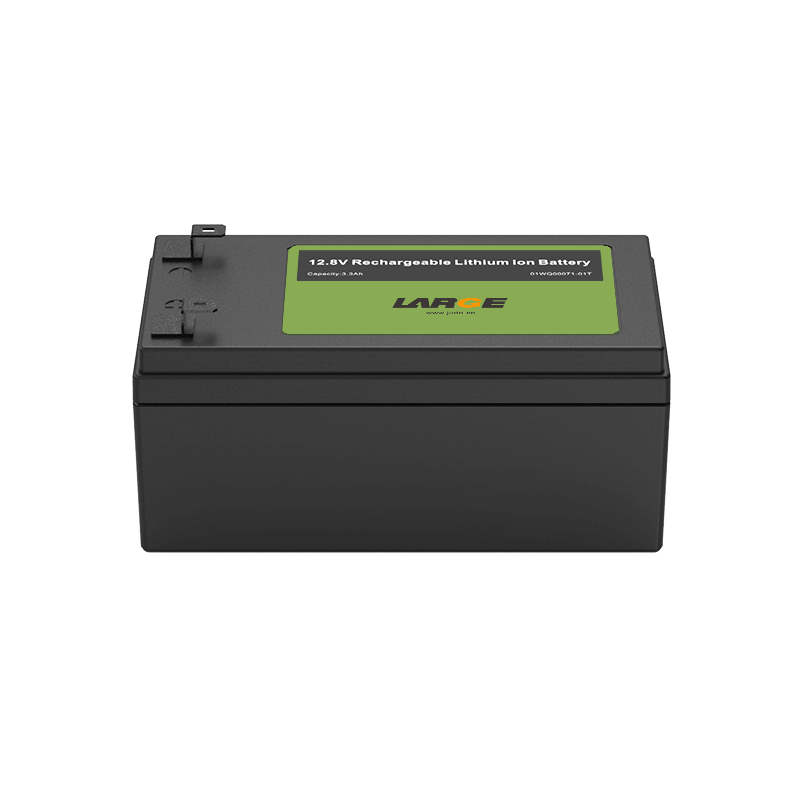

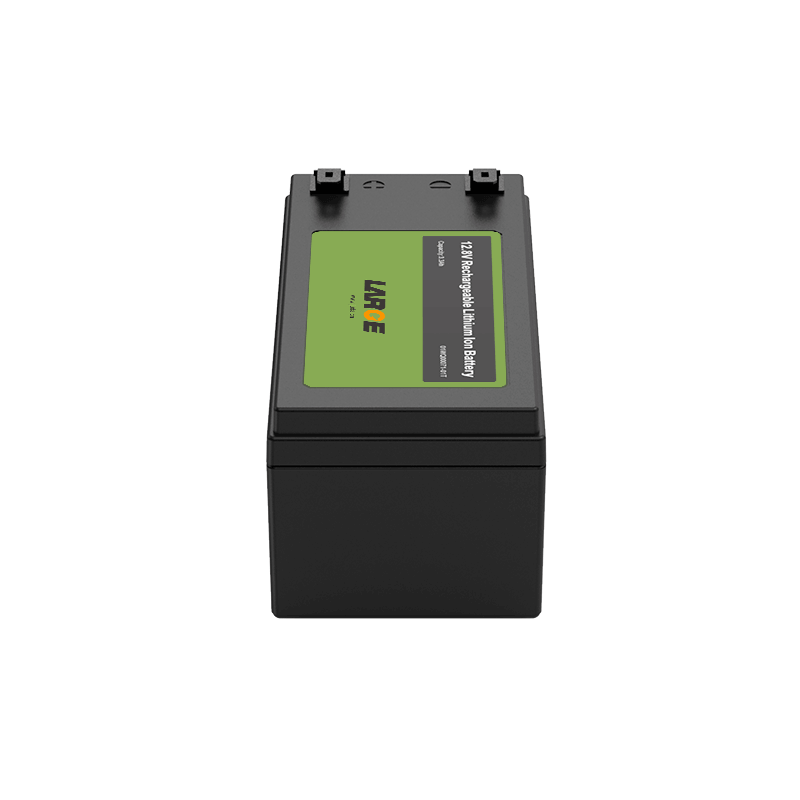

Custom Lithium ion Battery Pack
Project number: 01WQ00071-01T
Cell model: IFR26650/3300mah /3.2V
Battery specification: IFR26650-4S1P/ 3.3Ah /12.8V
Nominal voltage: 12.8V
Nominal capacity: 3.3Ah
Charging voltage: 14.4V
Charging current: ≤4.0A
Discharge current: 6.0A
Instantaneous discharge current: 8A
Discharge cut-off voltage: 10.0V
Product internal resistance: ≤240mΩ
Battery weight: 500g
Product size: 59.5*67.3*134.1mm
Charging temperature: -20 ~ 45℃
Discharge temperature: -40 ~ 60℃
Storage temperature: -20 to 35°C
Intelligent lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: Signal detection
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
