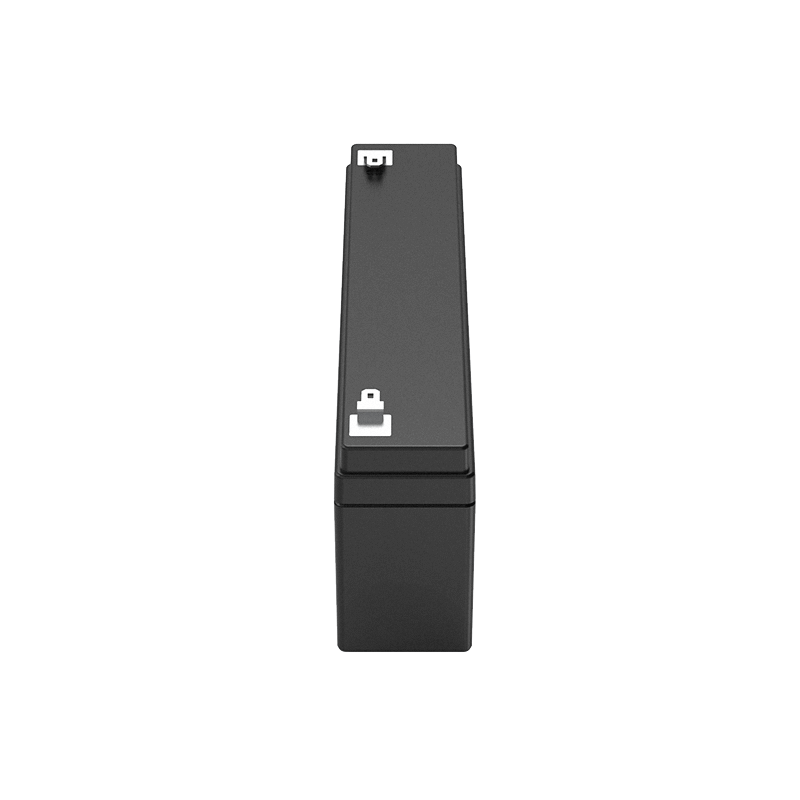

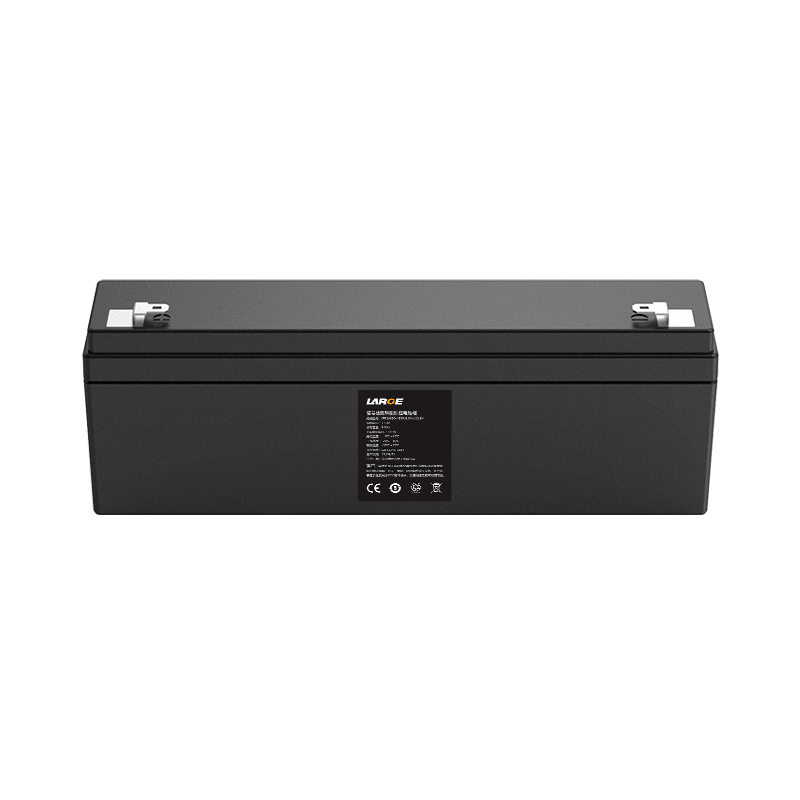

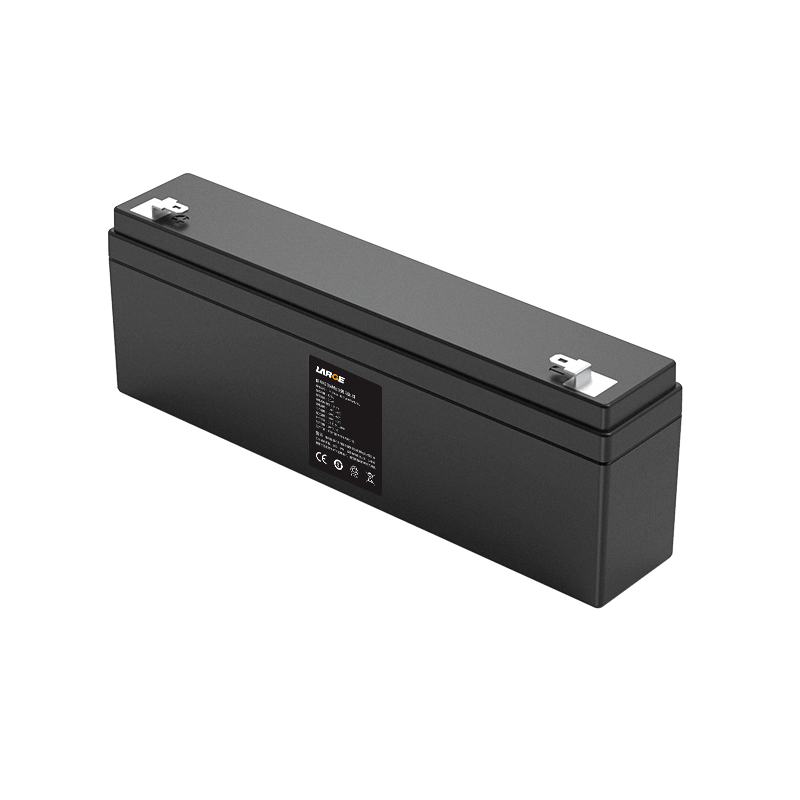

Custom Lithium ion Battery Pack
Project number: 01WQ00071-02
Cell model: IFR26650/4000mah /3.2V
Battery specification: IFR26650-4S2P/ 8.0Ah /12.8V
Nominal voltage: 12.8V
Nominal capacity: 8.0Ah
Charging voltage: 14.4V
Charging current: ≤4.0A
Discharge current: 6.0A
Instantaneous discharge current: 8A
Discharge cut-off voltage: 10.0V
Product internal resistance: ≤240mΩ
Battery weight: 1000g
Product size: 94.0*65*151mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 to 35 ° C
Intelligent lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: Signal detection
