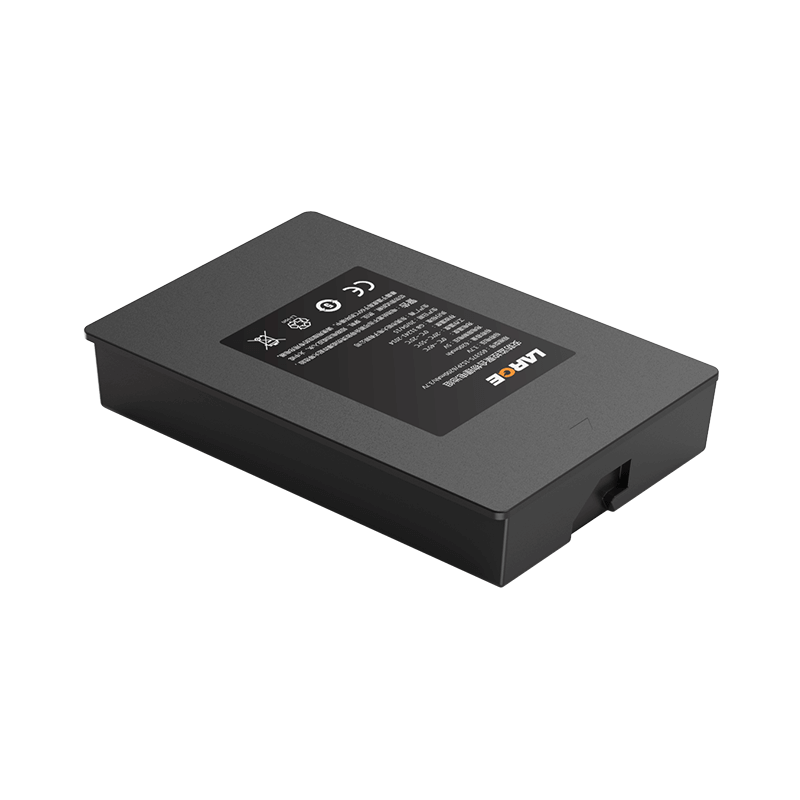

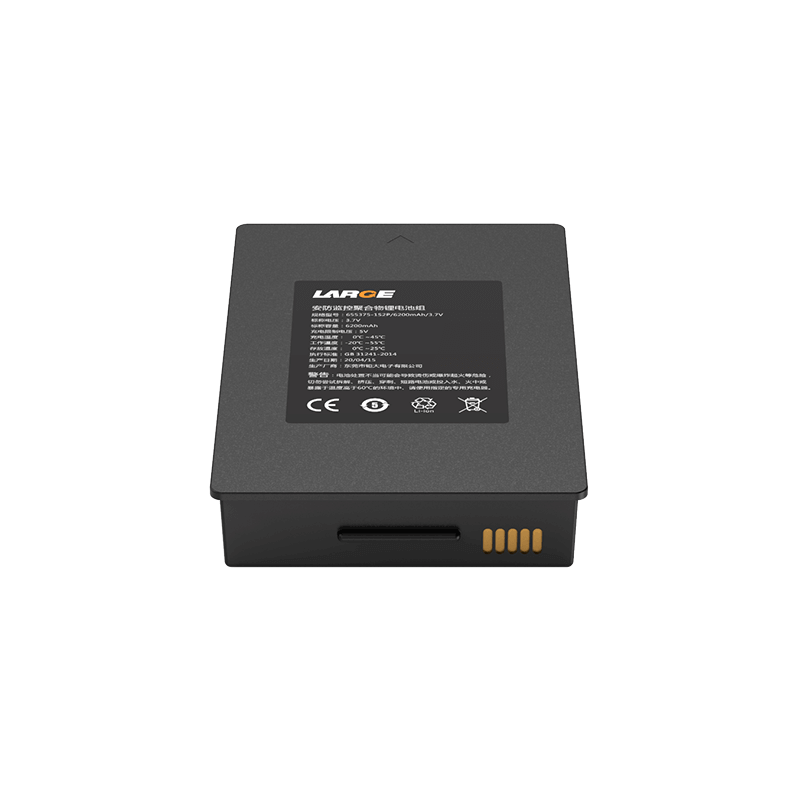

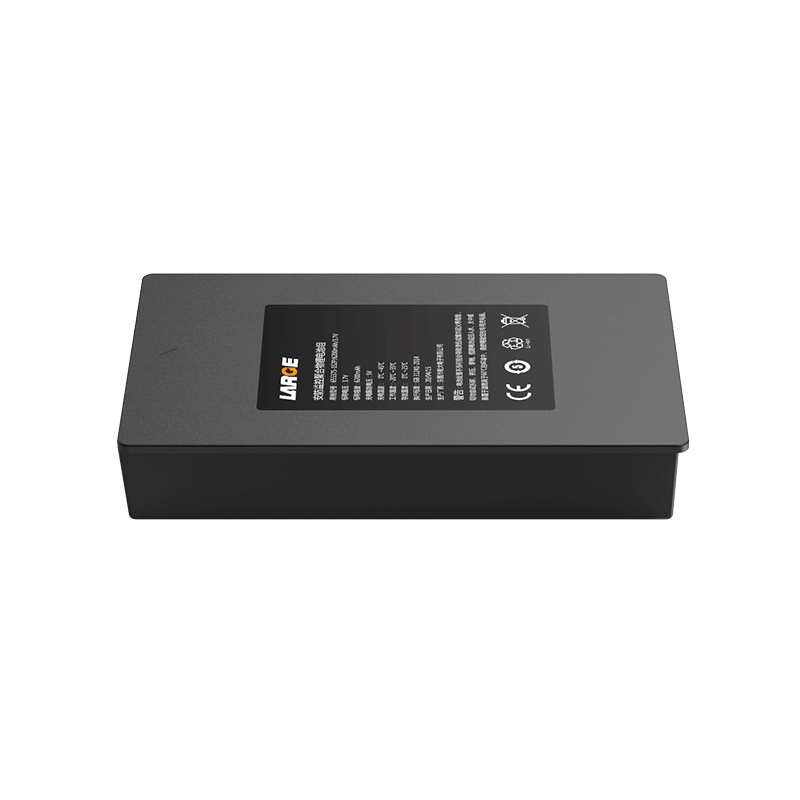

Custom Lithium ion Battery Pack
Project number: 01DQ0023-55
Cell model: 655375/3100mah /3.7V
Battery specification: 655375-1S2P/6200mAh/3.7V
Nominal voltage: 3.7V
Nominal capacity: 6200mAh
Charging voltage: 5V charging
Charging current: ≤ 3.1A
Discharge current: 3.1A
Instantaneous discharge current: 10.0A
Discharge cut-off voltage: 3.0V
Internal resistance: ≤250mΩ
Battery weight: 150g
Product size: 16.2*60.4*93.9mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 55℃
Storage temperature: 0 to 25°C
Intelligent lithium battery protection: charging management, short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: Security monitoring
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
