Project number: 35AQ1008-03
Cell model: LA524885L/2700mAh/3.7V; LA528985L / 5200 mah / 3.7 V

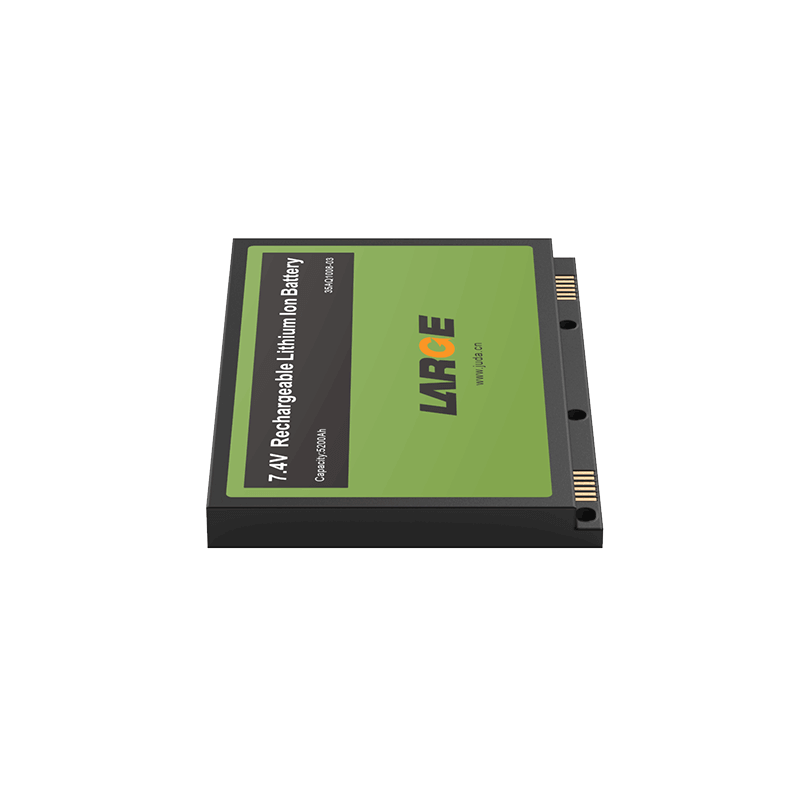

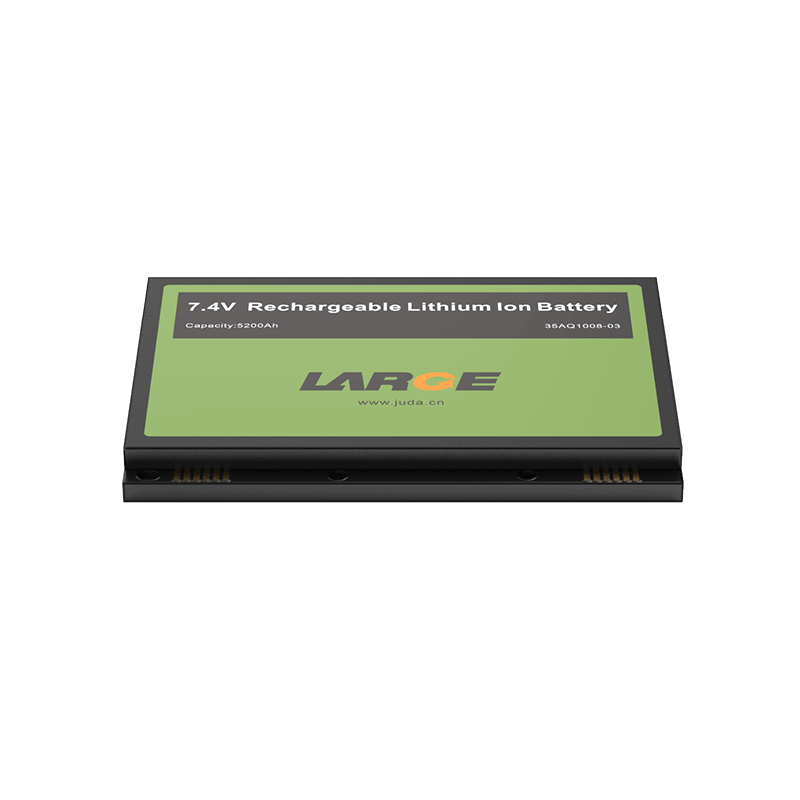

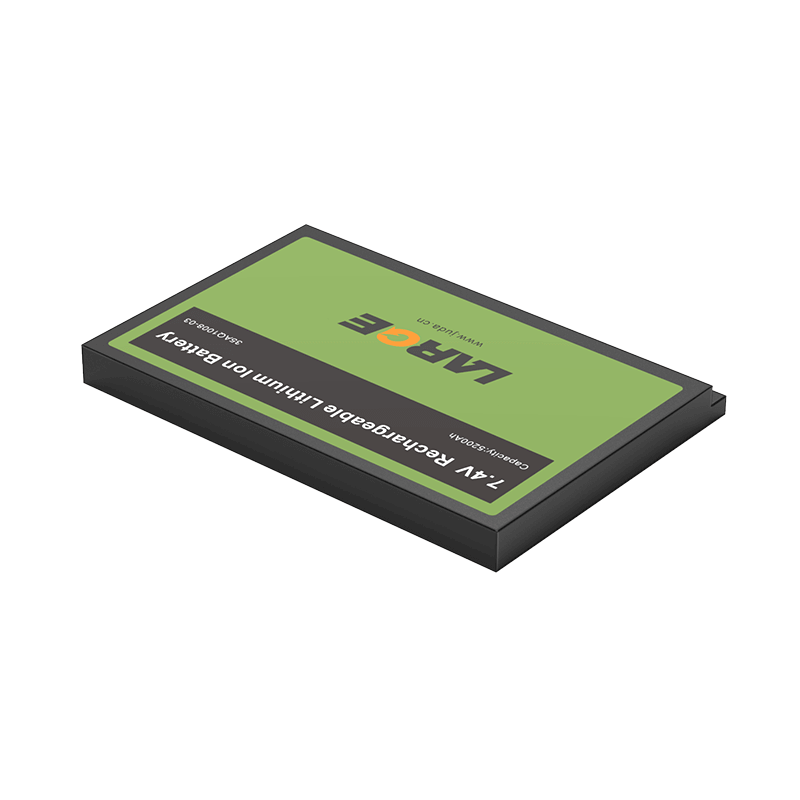

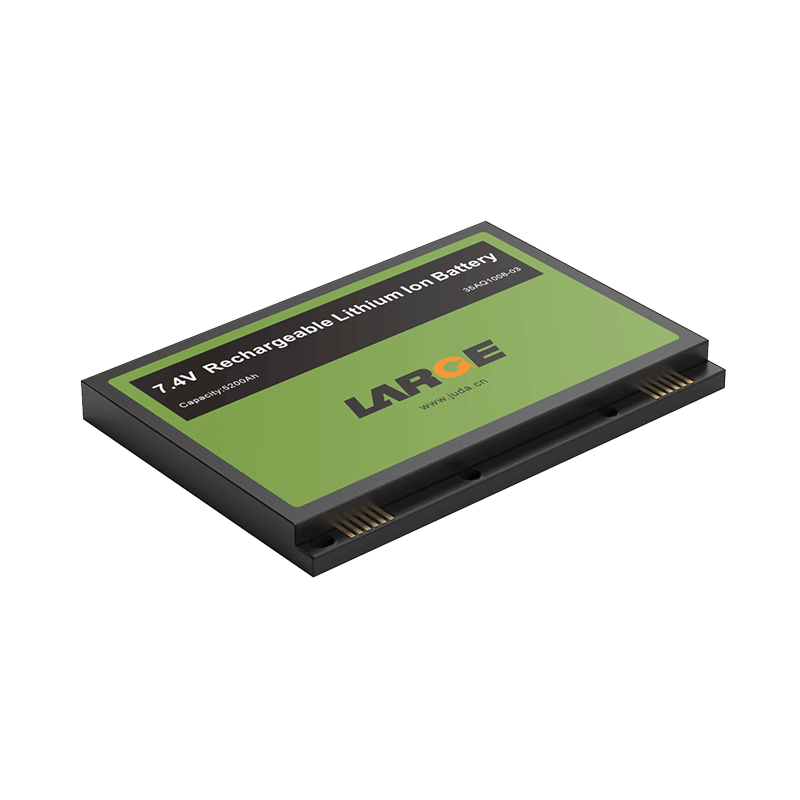

Battery specification: JDM-1008-03/2S1P/2700mAh/5200mAh-7.4V
Nominal voltage: 7.4V
Nominal capacity: 2700mAh/5200mAh
Charging voltage: 8.4V
Charging current: ≤1.325A/ 2.575A
Discharge current: 1.325A/2.575A
Instantaneous discharge current: 4.0A
Discharge cut-off voltage: 5.0V
Product internal resistance: ≤180mΩ
Battery weight: 260 g
Product size: 12*99.8*114.8mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -40 ~ 60℃
Storage temperature: 0 to 25 ° C
Intelligent lithium battery protection: power management, short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: Ruggedized laptop
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
