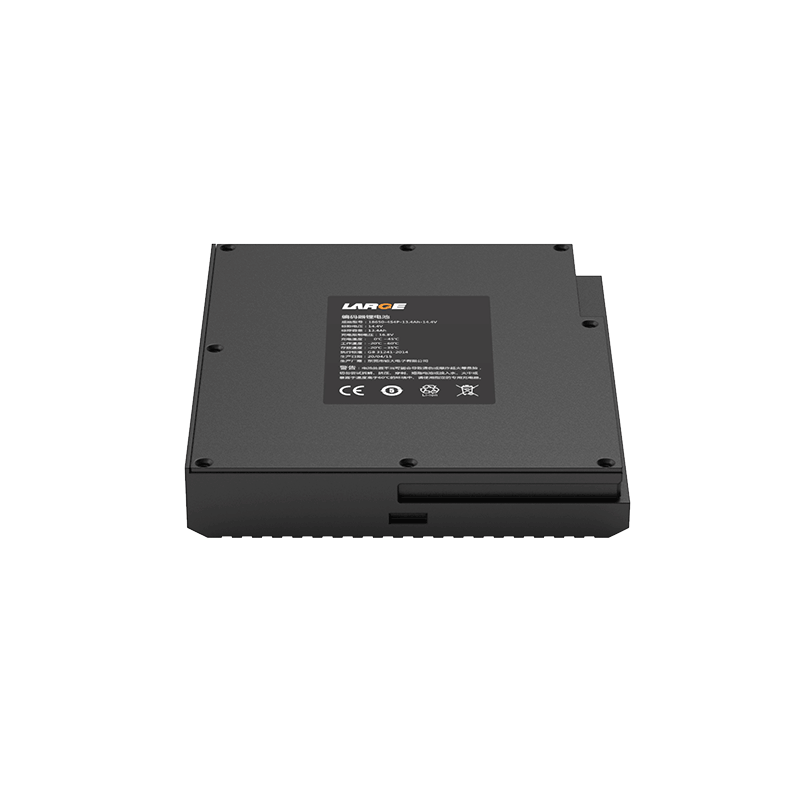

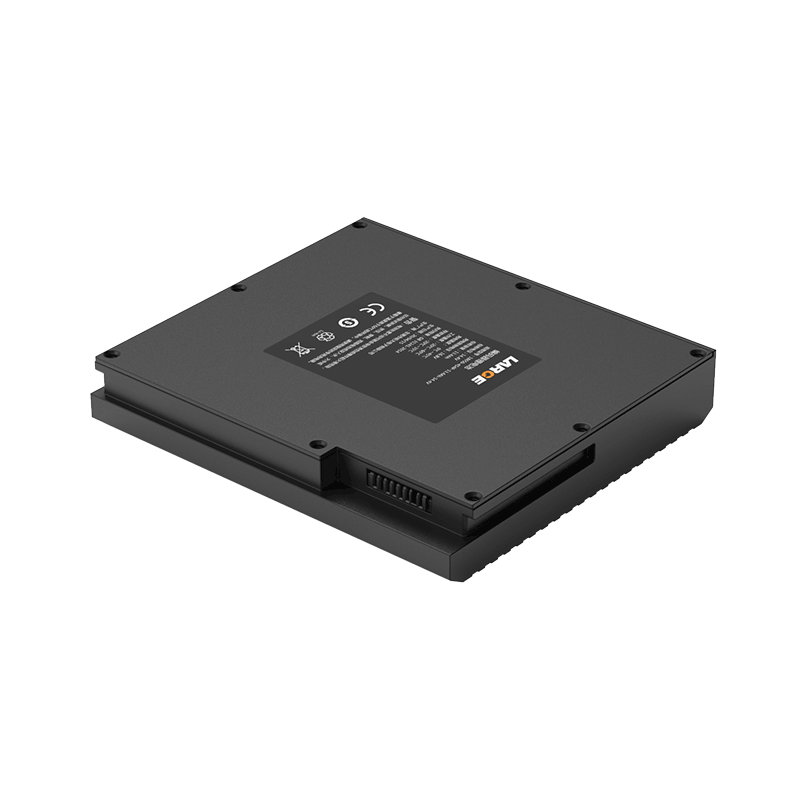

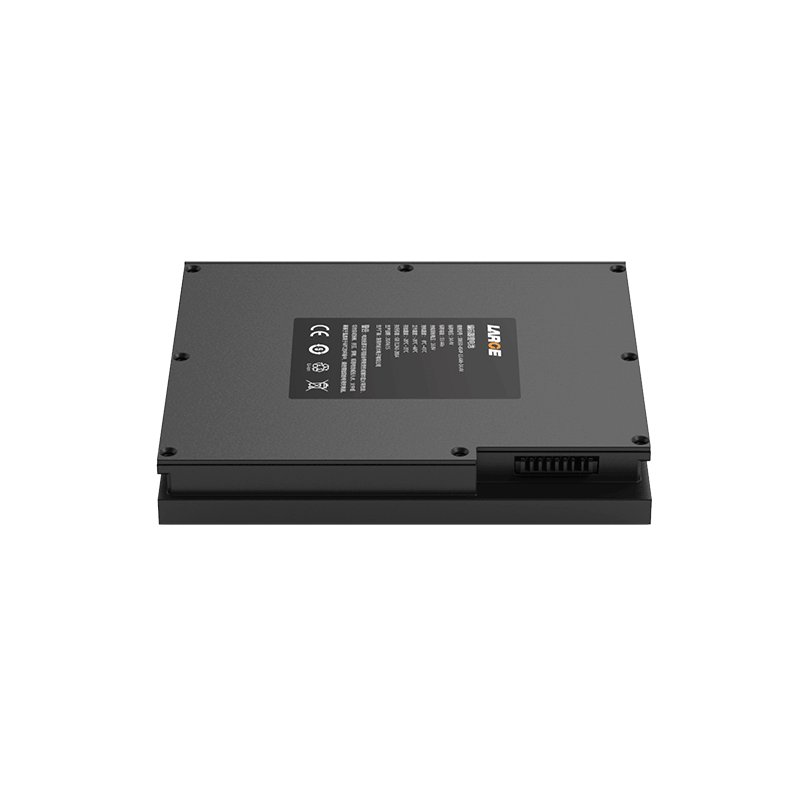

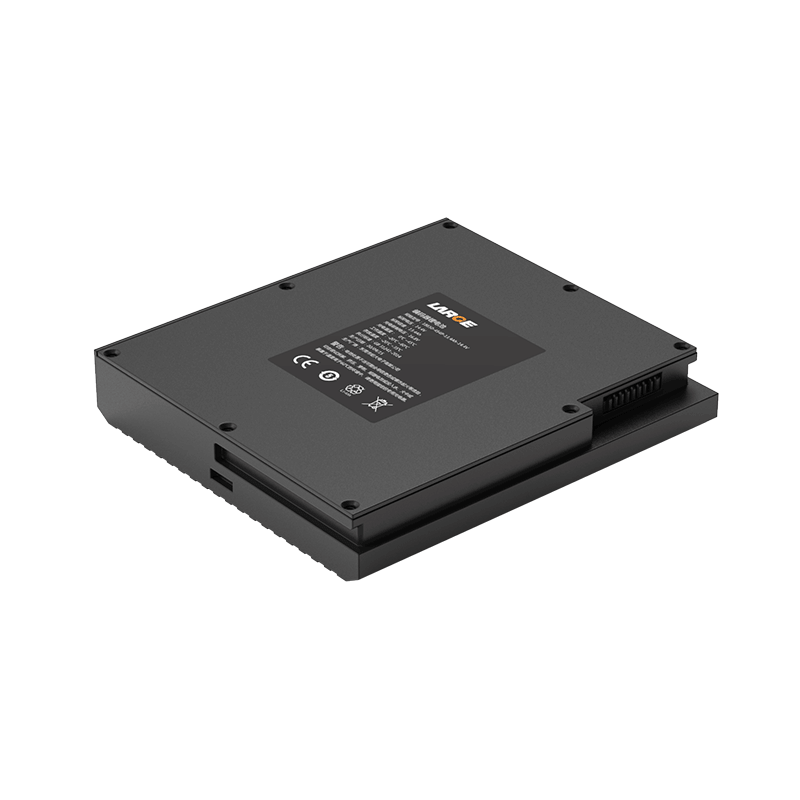

Custom Lithium ion Battery Pack
Product number: 08DQ0022-05
Cell model: 18650-3350MAH-3.6V
Battery specification: 18650-4S4P-13.4AH-14.4V
Product size: 260*182*23.5mm (Max)
Nominal voltage: 14.4V
Nominal capacity: 13.4Ah
Charging voltage: 16.8V
Charging current: ≤3A
Discharge current: ≤6A
Discharge cut-off voltage: 11.2V
Product internal resistance: ≤180mΩ
Battery weight: 1000g
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60 ℃
Storage temperature: -20 to 35°C
Battery case: plastic case
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over temperature protection, over current protection,ESD protection, etc.
Application: encoder, portable handheld devices
Product Features
1.The ABS+PC shell with aluminum alloy shell, adds reliability and firmness to the battery
2.Battery protection management: Adopt imported protection chips with high stability, high precision monitoring and precise control, to minimize safety risks.
3.Data communication management: The SYSTEM uses The Ti-Smbus software to manage the chip, transmit data precisely and control the temperature precisely, minimizing security risks.
4.The battery pack has good safety, nice discharge performance and high rate, supporting 3C discharge and its discharging power is up to 90%.
5.The battery pack is safe, has good discharge performance and long cycle life.
6.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
