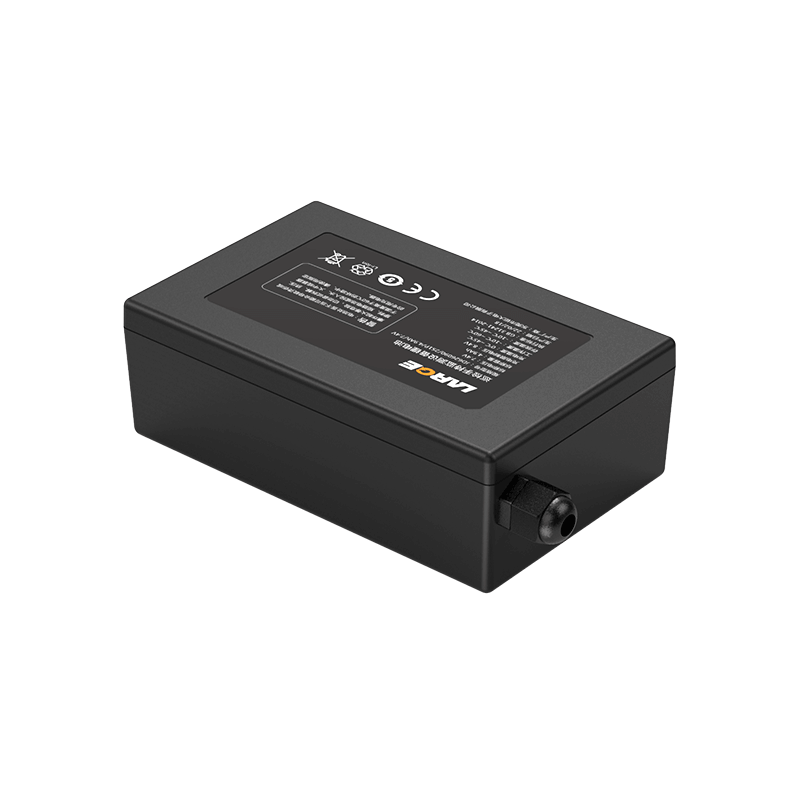

Custom Lithium ion Battery Pack
Product number: 08DQ0057-01
Cell model: 21700-4900MAH-3.60V
Battery specifications: 21700-3S4P-19.2Ah-10.8V
Product size: 150mm*94mm*50mm
Nominal voltage: 10.8V
Nominal capacity: 19.2A
Rated capacity: 18.8A
Charging voltage: 12.6V
Charging current: 10A
Discharge current: 30A
Discharge cut-off voltage: 7.5V
Product internal resistance: ≤180mΩ
Battery weight: 1100g
Charging temperature: 0~+45℃
Discharge temperature: -20~+60℃
Storage temperature: -20~+45 ° C (less than 1 month); -20 ~ 35 ℃(less than 3 months); -10~+25℃ (less than 12 months)
Battery package: plastic case;
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, over temperature protection, etc.
Application: B ultrasound equipment
Product Features
1.Plastic shell and ultrasonic process are simple, reliable and easy to install.
2.SMBUS communication protocol
3.Output terminal: Adopt the output mode of GB UL wire to increase conductive reliability.
4.Battery protection management: Adopt imported protection chips with high stability, high precision monitoring and precise control, to eliminate potential safety hazards to the maximum.
5.The battery pack is safe, has good discharge performance and long cycle life.
6.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
