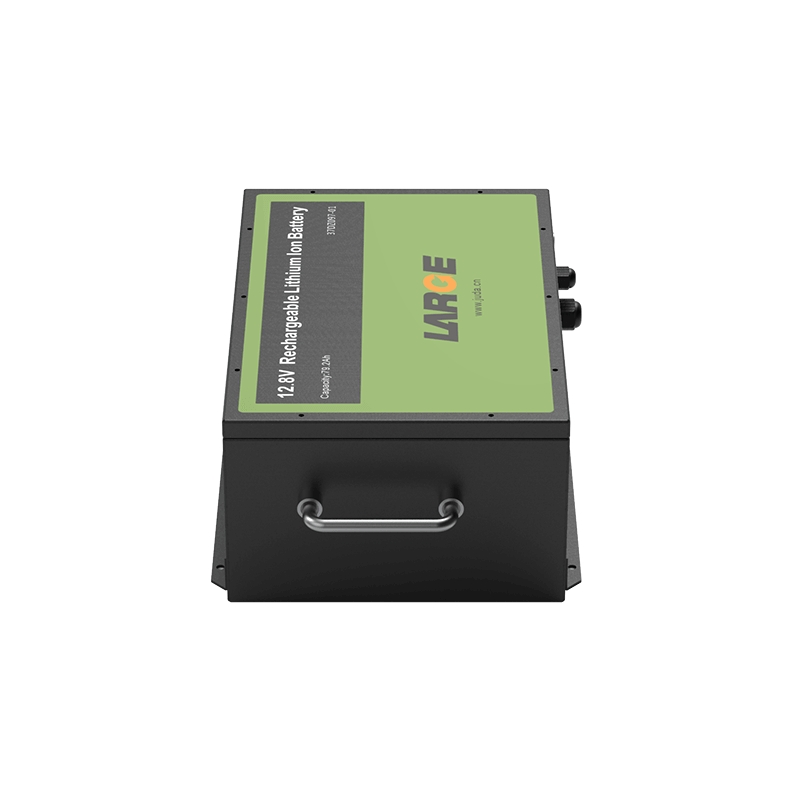

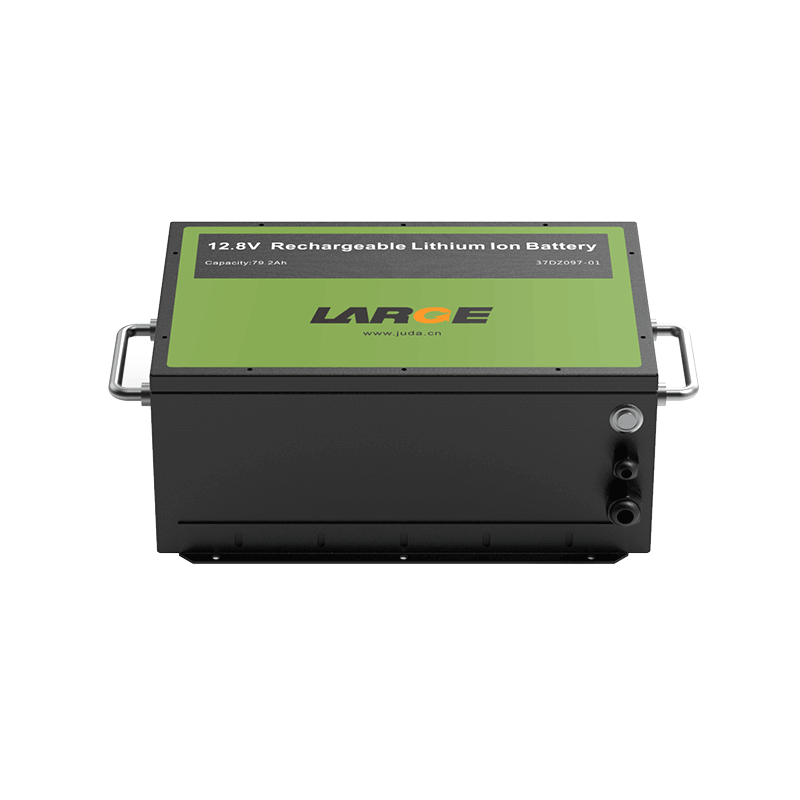

Project number: 37DZ097-01
Cell model: 26650 3.2V/ 3.3AH
Battery specification: 4S24P/12.8V/ 79.2AH (low temperature)
Nominal voltage: 12.8V
Nominal capacity: 79.2Ah
Charging voltage: 14.6V
Charging current: ≤10A
Discharge current: 10A
Instant discharge current: greater than 30A
Discharge cut-off voltage: 8V
Finished internal resistance: ≤200mΩ
Battery weight: 14kg
Product size: 128*220*330mm
Charging temperature: -20 ~ 45℃
Discharge temperature: -40 ~ 60 ℃
Storage temperature: -40 ~ 45 ° C
Battery case: PVC
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: Tumbler LED light energy storage battery
1.Lithium iron phosphate battery can charge and discharge at low temperature.
3.Stabilized 12V 4A output
4.The battery pack has good safety and long cycle life;
5.The battery pack has long cycle life, in line with the value of low carbon, energy saving and environmental protection;
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
