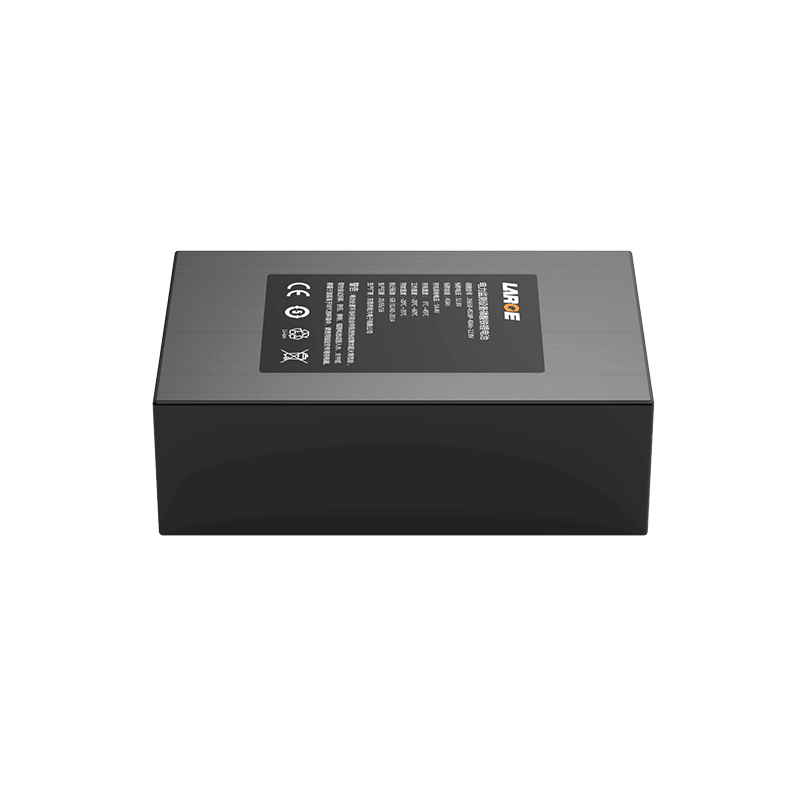

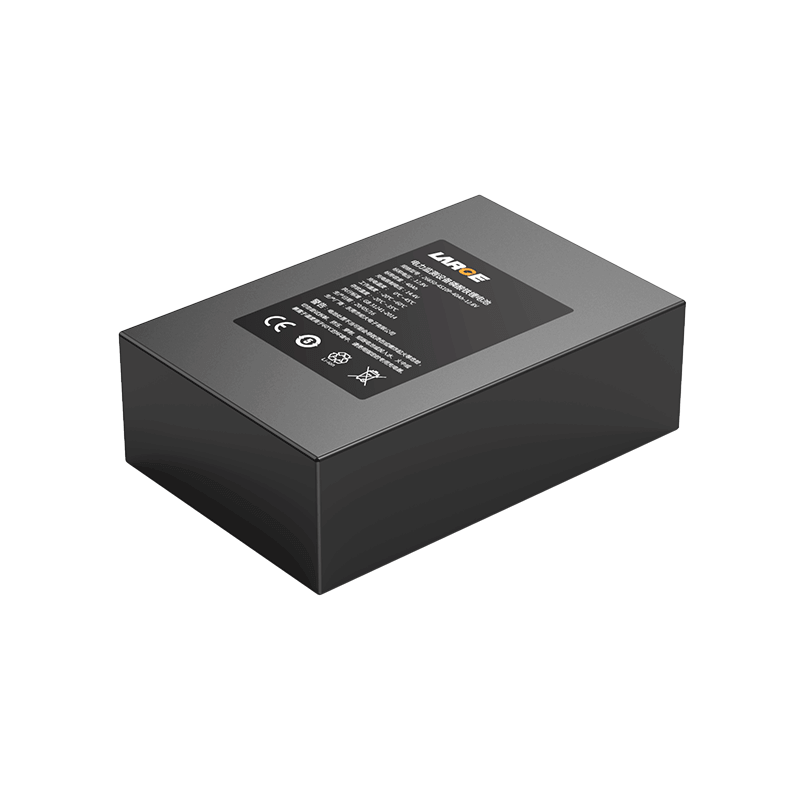

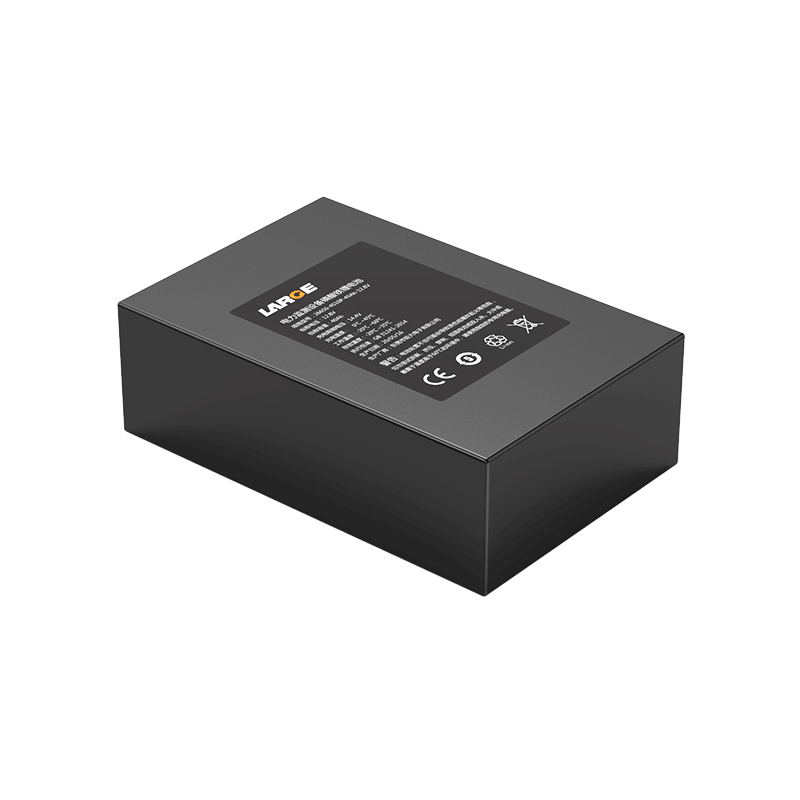

Custom Lithium ion Battery Pack
Product number: 34AQ020-07
Cell model: 26650-4000mah 3.2V
Battery specifications: 26650-4S10P-40AH-12.8V
Product size: 230*150*72mm
Nominal voltage: 12.8V
Nominal capacity: 40Ah
Charging voltage: 14.4V
Charging current: ≤8.0A
Discharge current: ≤10A
Discharge cut-off voltage: 10V
Finished internal resistance: ≤200mΩ
Battery weight: 3700g
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 ~ 35℃
Battery package: blue PVC heat shrinkable film package
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over temperature protection, over current protection,ESD protection and so on
Application: Power monitoring equipment, testing instruments
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
