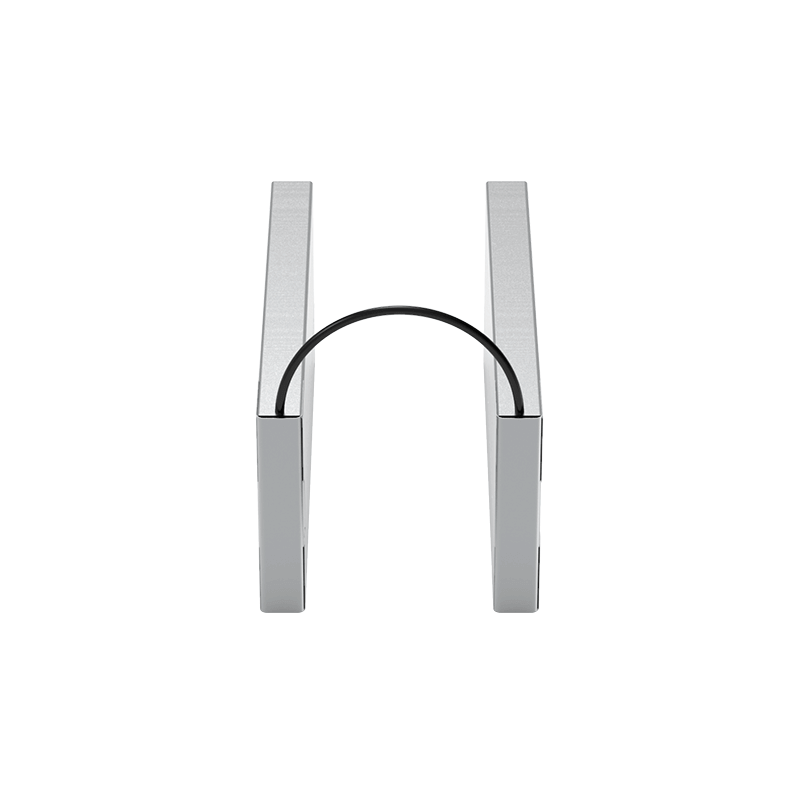

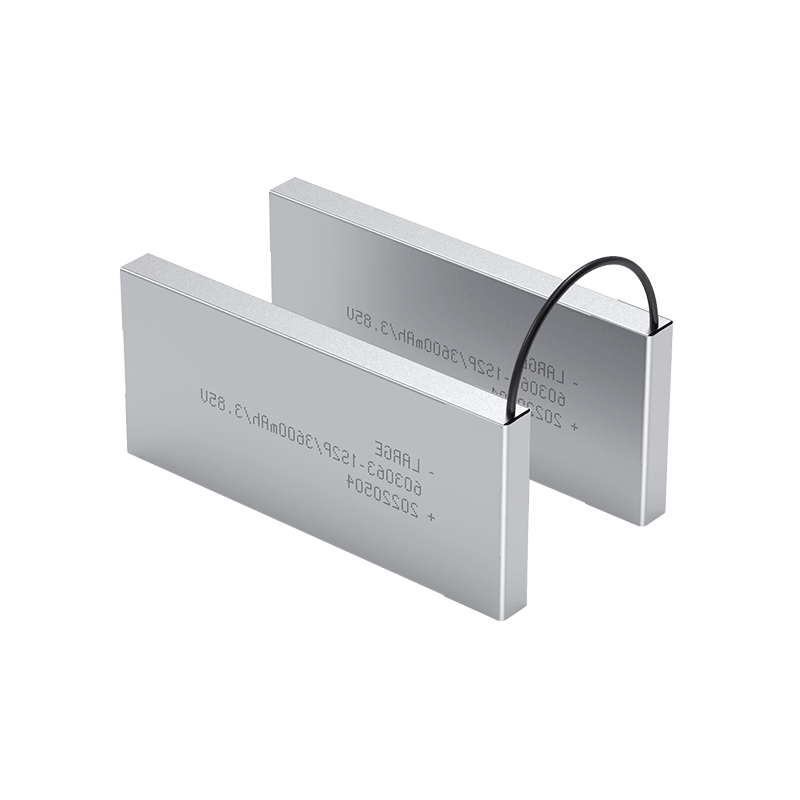

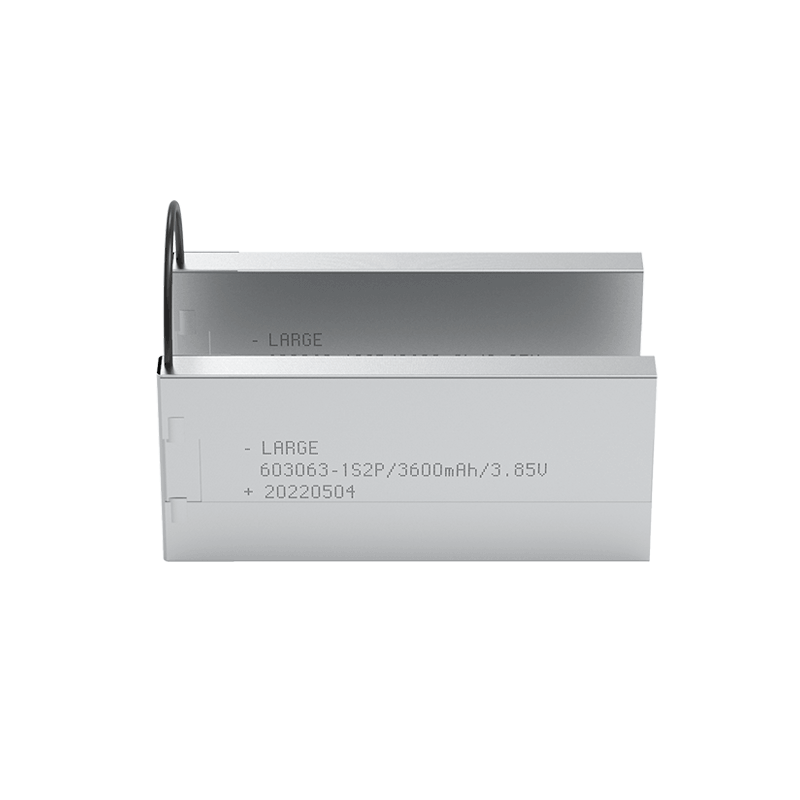

3.85V 3600mAh Lithium Polymer Battery for Infrared Imaging Devices

Customization | Free Battery Solution

Product Detail

Product number: 36AQ517-11

Cell model: 603063-1800 MAH-3.85V

Battery specification: 603063-1S2P/3600mAh/3.85V

Product dimension: 68*30*6mm+68*30*6mm

Nominal voltage: 3.85V

Nominal capacity: 3600mAh

Finished internal resistance: ≤ 180mω

Charging voltage: 4.4V

Charging current: ≤3.6A

Discharge current: ≤3.6A

Discharge cut-off voltage: 3.0V

Battery weight: 60g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60 ℃

Storage temperature: -20 ~ 35 ℃

Battery encapsulation: Polymer simple package

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection,ESD protection,etc.

Application: Infrared thermal imaging equipment, portable infrared equipment

Product Features

1.Polymer is easy to package, making it easy to install.

2.Connector plug output terminal: use JST plug output method to increase the electrical conductivity of the plug.

3.Battery protection management: Use special lithium battery protection chip, with high stability, high precision monitoring, precise control,so as to eliminate security hazards to the greatest extent.

4.Data communication management: Use Ti-SMbus software management chip for SMBus communication precise data transmission, and real-time battery condition monitoring and control.

5.The battery pack has good safety, nice discharge performance and long cycle life;

6.The battery pack has long cycle life, in line with the value of low carbon, energy saving, environmental protection;
