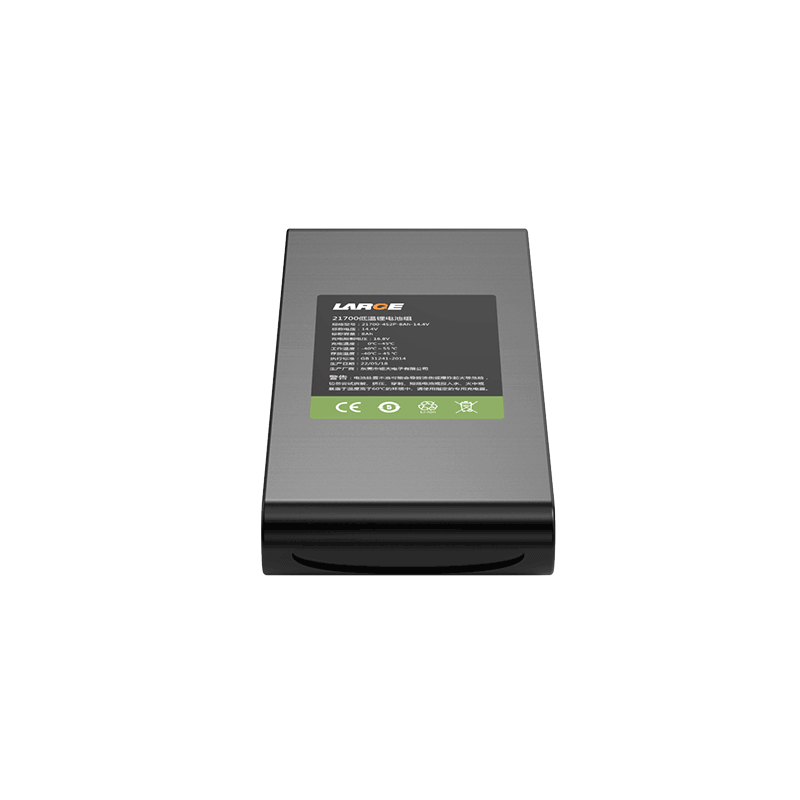

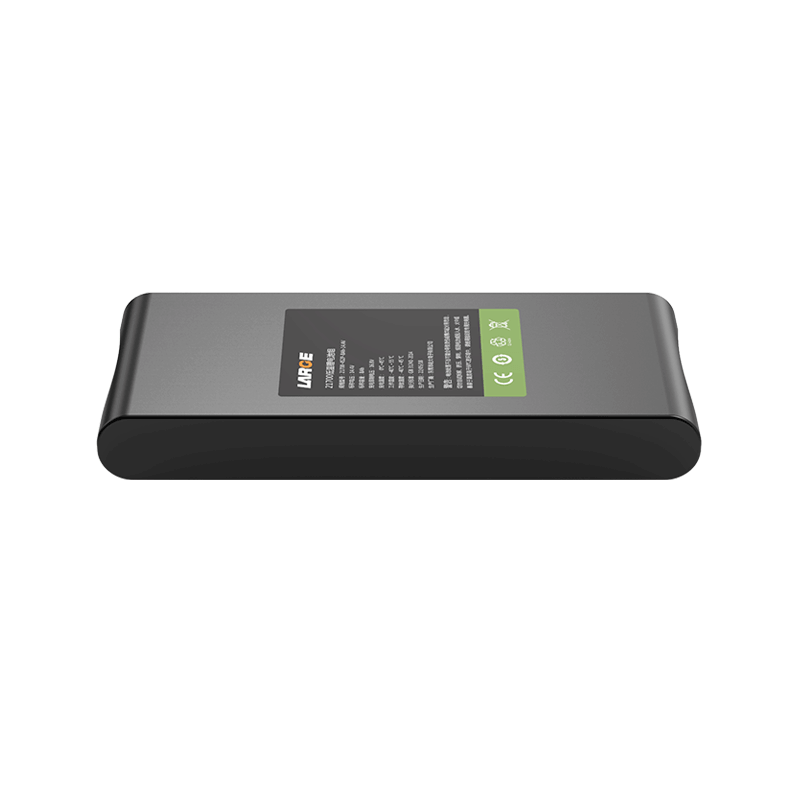

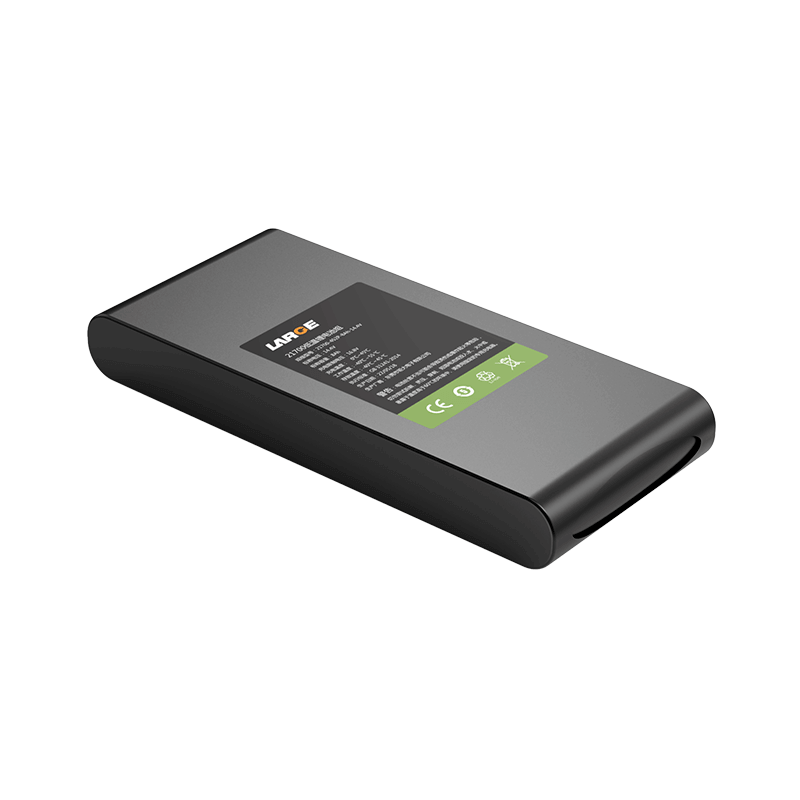

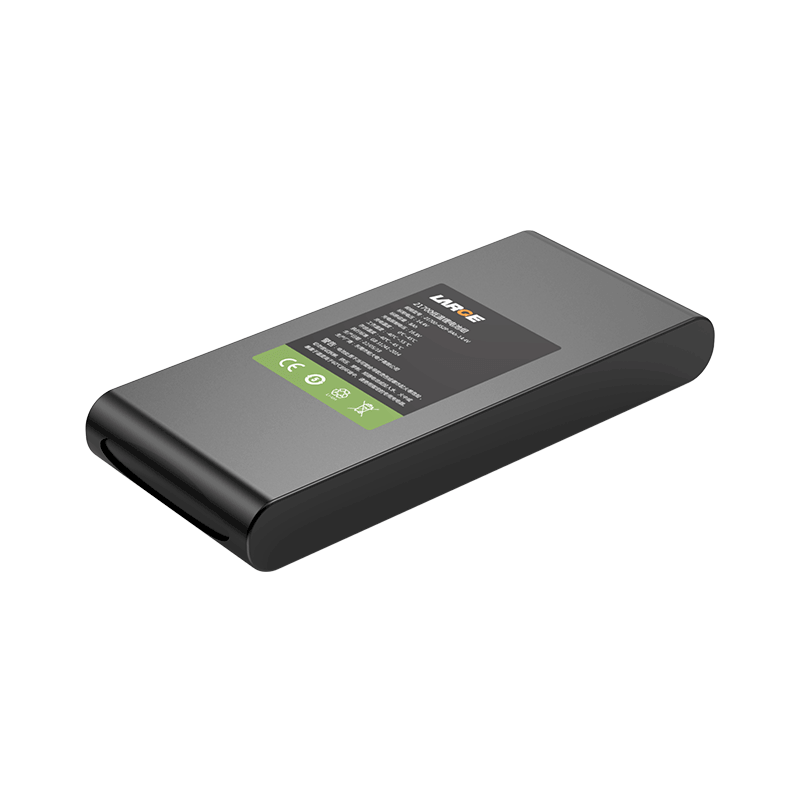

21700 14.4V 8Ah Low Temperature Lithium-ion Battery

Product number: 36AQ616-01

Cell model: 21700-4000mah -3.6V

Battery specification: 21700-4S2P-8AH-14.4V

Product dimension: 174*76*25mm

Nominal voltage: 14.4V

Nominal capacity: 8Ah

Charging voltage: 16.8V

Charging current: 3.9A

Discharge current: 3.9A

Discharge cut-off voltage: 10V

Finished internal resistance: ≤200mΩ

Battery weight: 650g

Charging temperature: 0 ~ 45℃

Discharge temperature: -40 ~ 55℃

Storage temperature: -40~+45℃ (less than 1 month) -20 ~ 35℃(less than 3 months); -20~+25℃ (less than 12 months)

Battery encapsulation: PVC

Communication protocol: SMBUS

Output mode: GB UL wire

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, over temperature protection, etc.

Application: equipment
