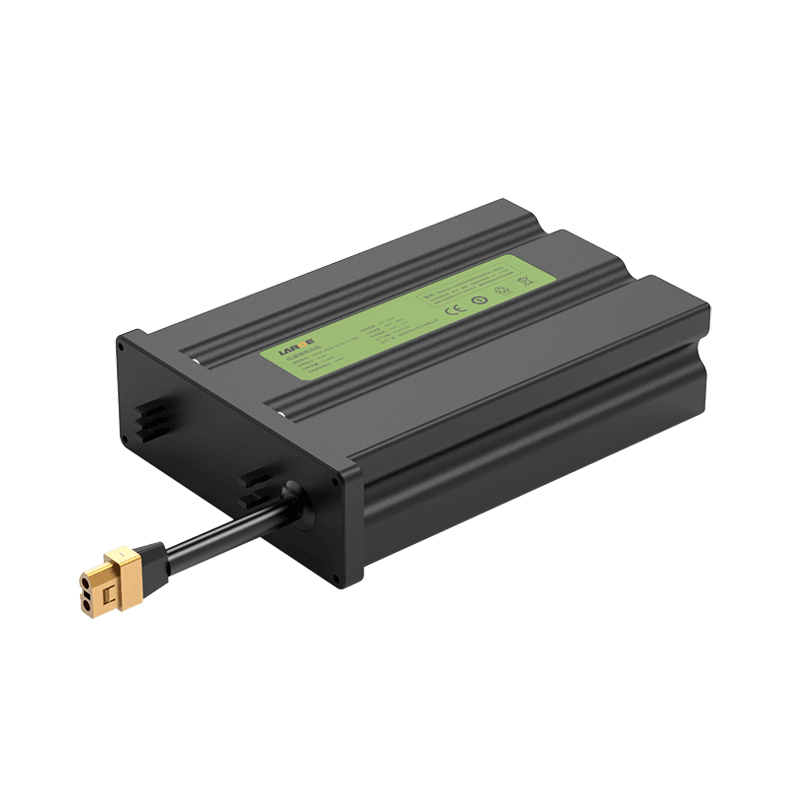

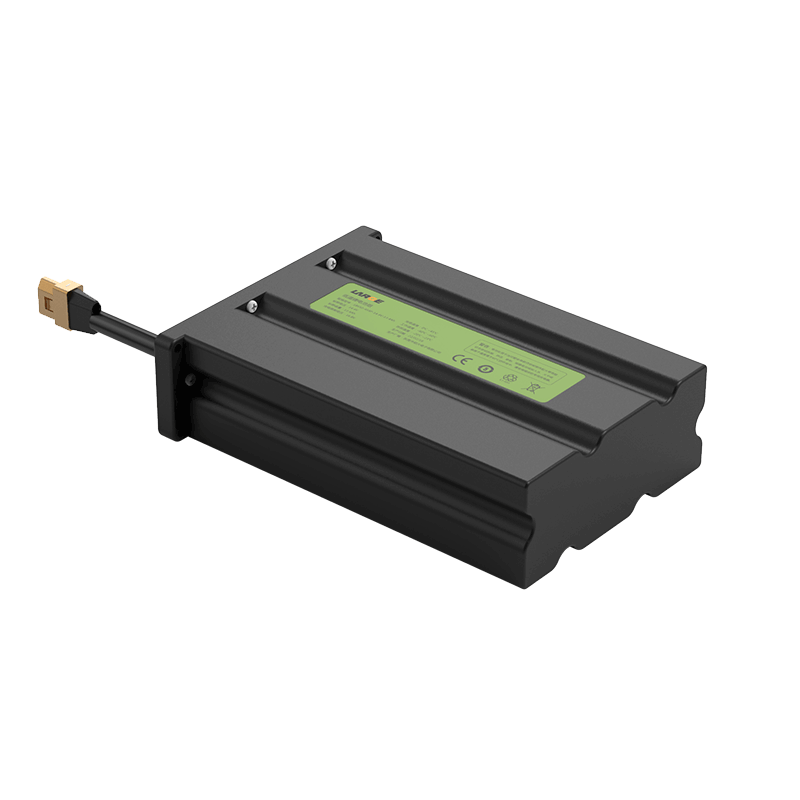

Custom Lithium ion Battery Pack
Product number: 35AQ6908-02
Cell model: INR18650L-3350
Battery specification: 18650-4S4P-14.4V-13.4AH
Product dimension: L:150*W:108*H:39mm
Nominal voltage: 14.4V
Nominal capacity: 13.4Ah
Charging voltage: 16.8V
Charging current: 6.4A
Discharge current: 6.4
Discharge cut-off voltage: 10V
Finished internal resistance: ≤200mΩ
Battery weight: 1200g
Charging temperature: 0 ~ 45℃
Discharge temperature: -40 ~ 55℃
Storage temperature: -40~+45℃ (less than 1 month) -20 ~ 35 ℃(less than 3 months); -20~+25℃ (less than 12 months)
Battery encapsulation: plastic case
Communication protocol: SMBUS
Output mode: GB UL wire
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, over temperature protection, etc.
Application: equipment
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
