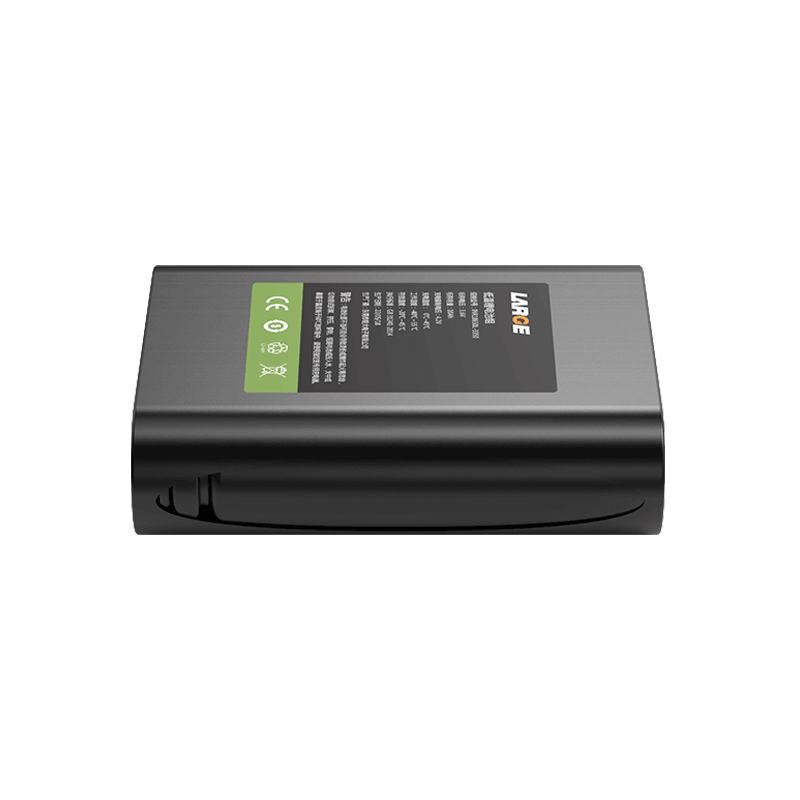

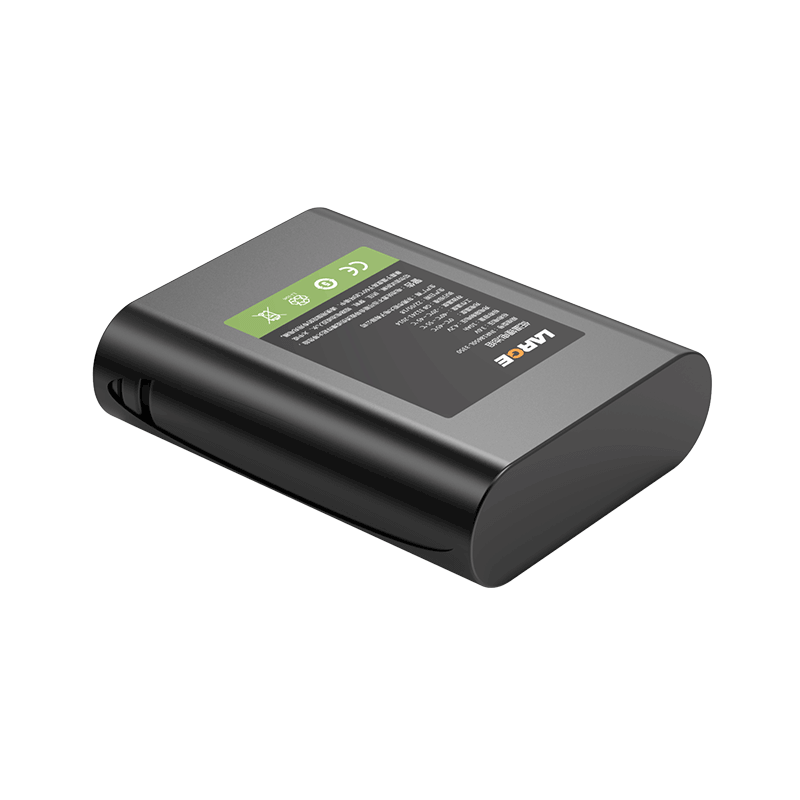

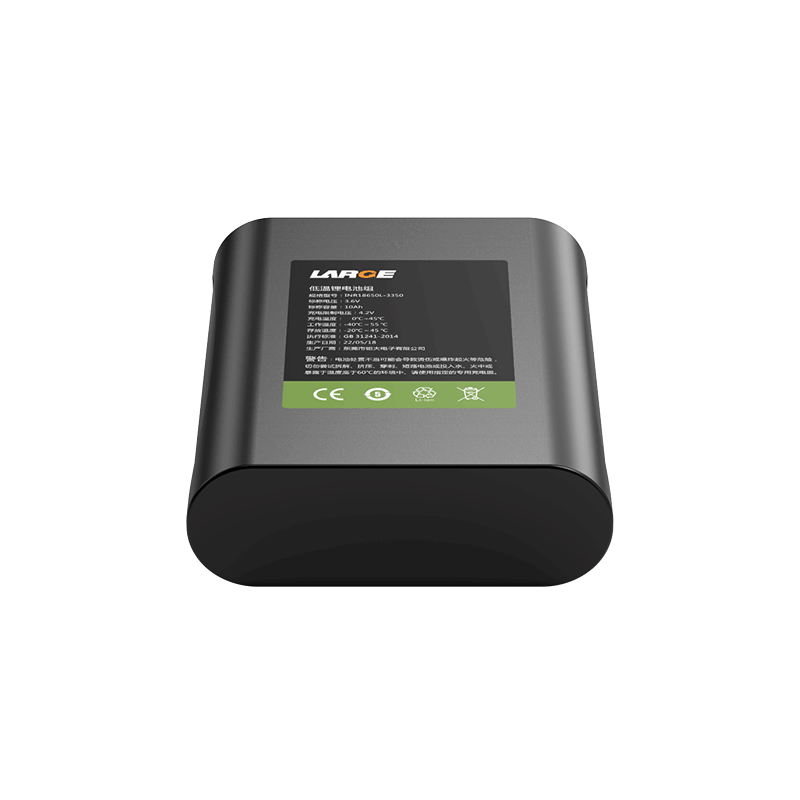

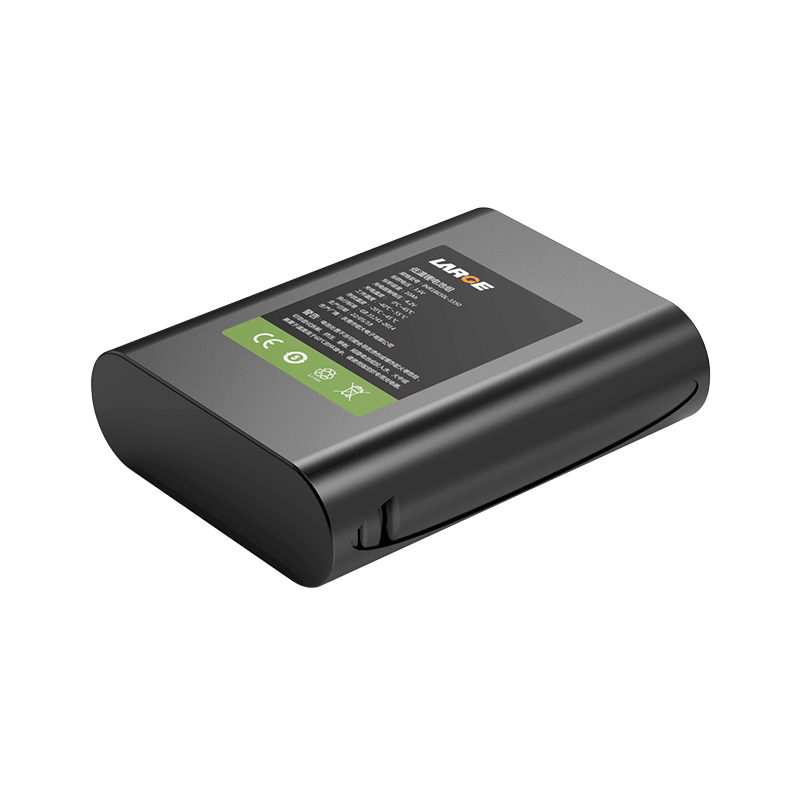

Custom Lithium ion Battery Pack
Product number: 35AQ789-02
Cell model: INR18650L-3350
Battery specification: 3.6V-10AH
Product size: 72*57*19mm
Nominal voltage: 3.6V
Nominal capacity: 10Ah
Charging voltage: 4.2V
Charging current: 3A
Discharge current: 3A
Discharge cut-off voltage: 2.5V
Finished internal resistance: ≤ 180mΩ
Battery weight: 200g
Charging temperature: 0 ~ 45℃
Discharge temperature: -40 ~ 55℃
Storage temperature: -20~+45℃ (less than 1 month) -20~ 35℃(less than 3 months); -20~+25℃ (less than 6 months)
Battery encapsulation: PCV heat seal
Communication protocol: I2C
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: H detection car
