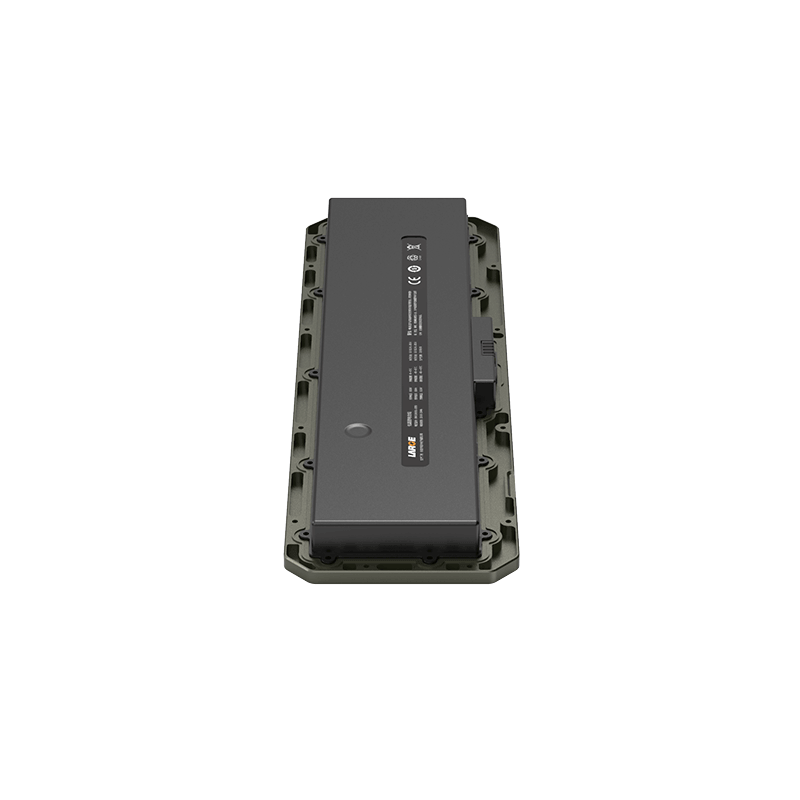

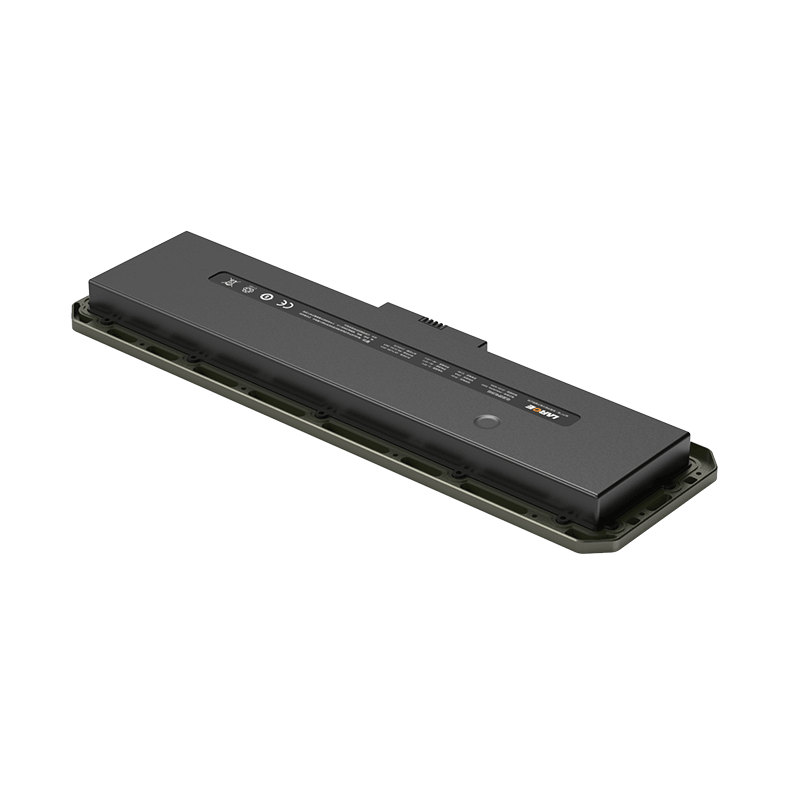

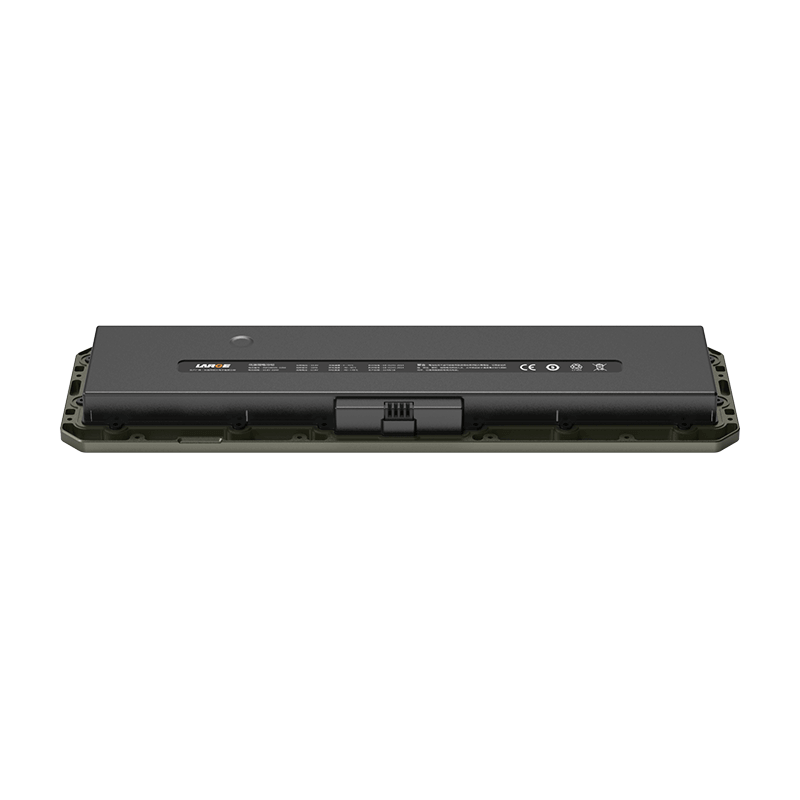

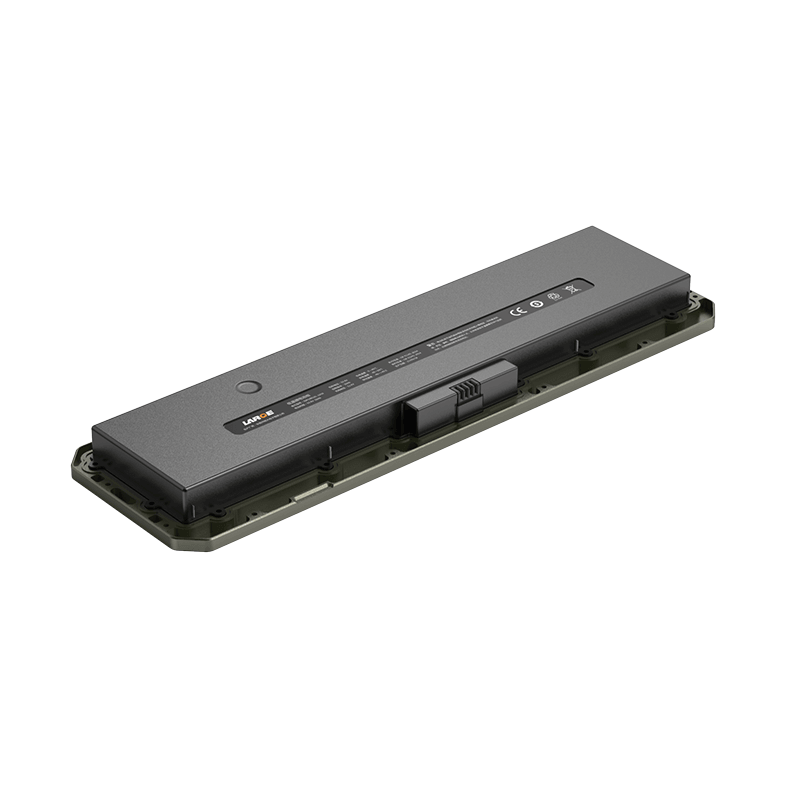

Custom Lithium ion Battery Pack
Product number: 35AQ1203-01
Cell model: INR18650L-3350
Battery specification: 10.8 V-10AH
Product dimension :(287.1×86.4×20.5) ±0.2mm
Nominal voltage: 10.8V
Nominal capacity: 10Ah
Charging voltage: 12.6V
Charging current: 5A
Discharge current: 5A
Discharge cut-off voltage: 7.5V
Finished internal resistance: ≤ 180mΩ
Battery weight: 700g
Charging temperature: 0 ~ 45℃
Discharge temperature: -40 ~ 65℃
Storage temperature: -40~+45℃ (less than 1 month) -20 ~ 35 ℃(less than 3 months); -20~+25℃ (less than 12 months)
Battery encapsulation: Magnesium alloy AZ31B on surface/back cover
Communication protocol: SMBUS
Output mode: GB UL wire
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, over temperature protection, etc.
Application: Laptop
