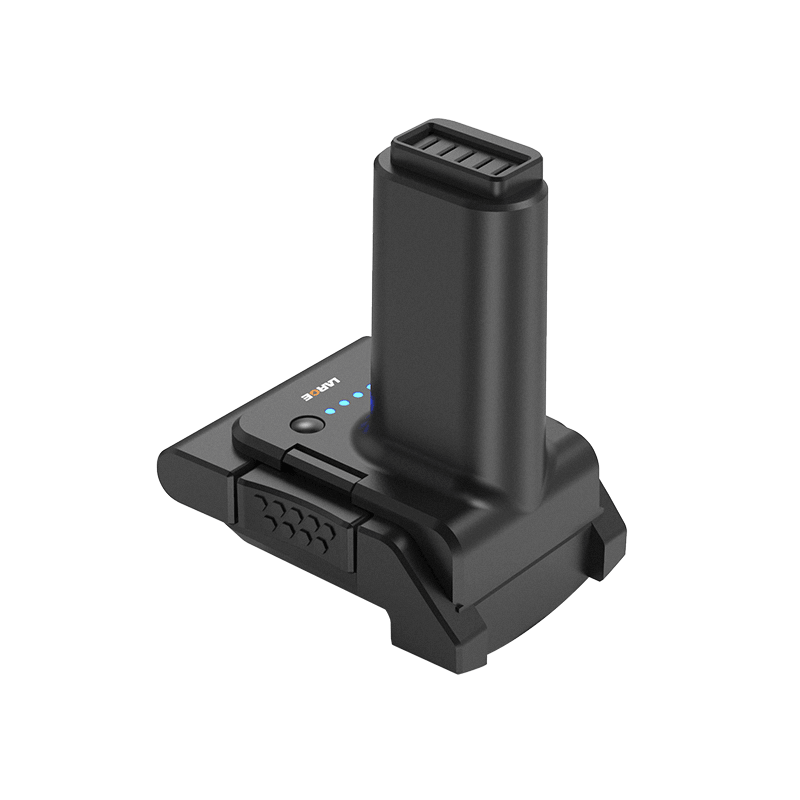

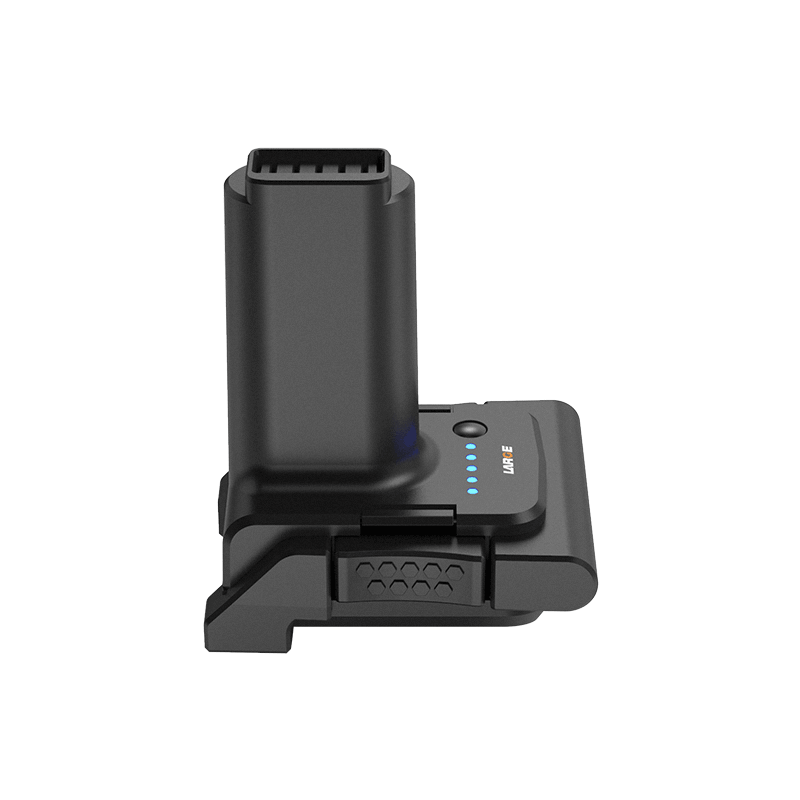

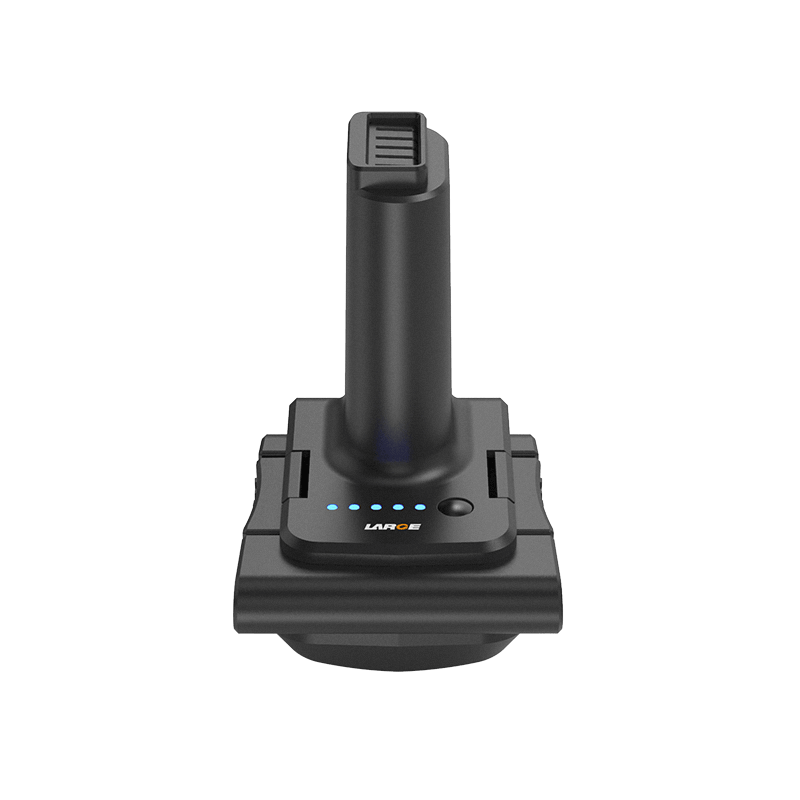

Custom Lithium ion Battery Pack
Product number: 36AQ239-02
Cell model: INR18650L-3350
Battery specification: 7.2V-6.7AH
Product dimension :(114.8*89.05*73.04) ±0.5mm
Nominal voltage: 7.2V
Nominal capacity: 6.7Ah
Charging voltage: 8.4V
Charging current: 3.2A
Discharge current: 6.4A
Discharge cut-off voltage: 5V
Finished internal resistance: ≤ 180mω
Battery weight: 270g
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20~+45℃ (less than 1 month) -20~ 35℃(less than 3 months); -20~+25℃ (less than 12 months)
Battery encapsulation: two-color plastic case, screw fixed
Communication protocol: SMBUS
Output mode: GB UL wire
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, over temperature protection, etc.
Application: Device
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
