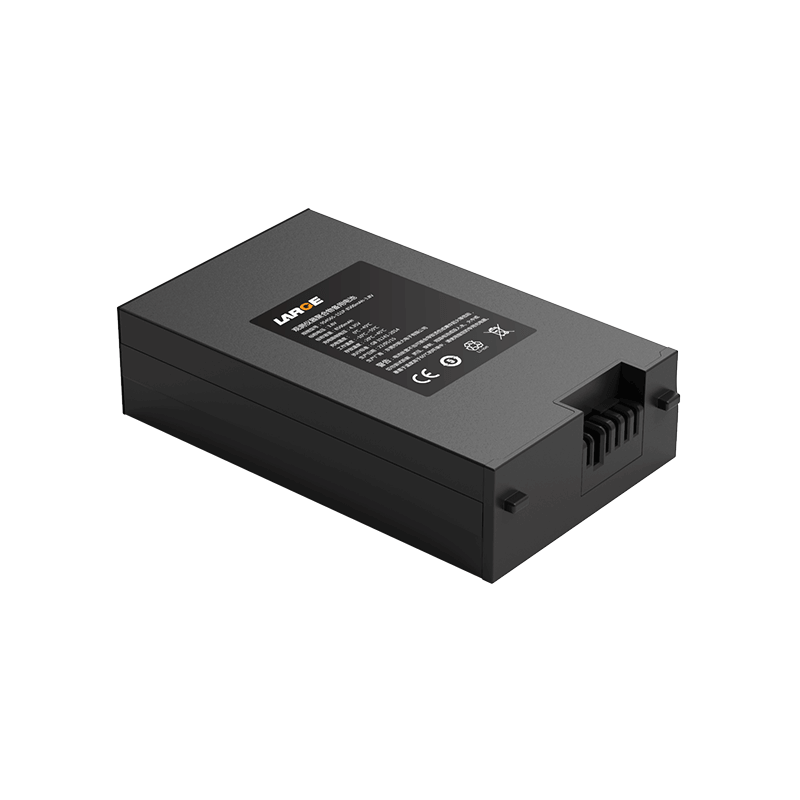

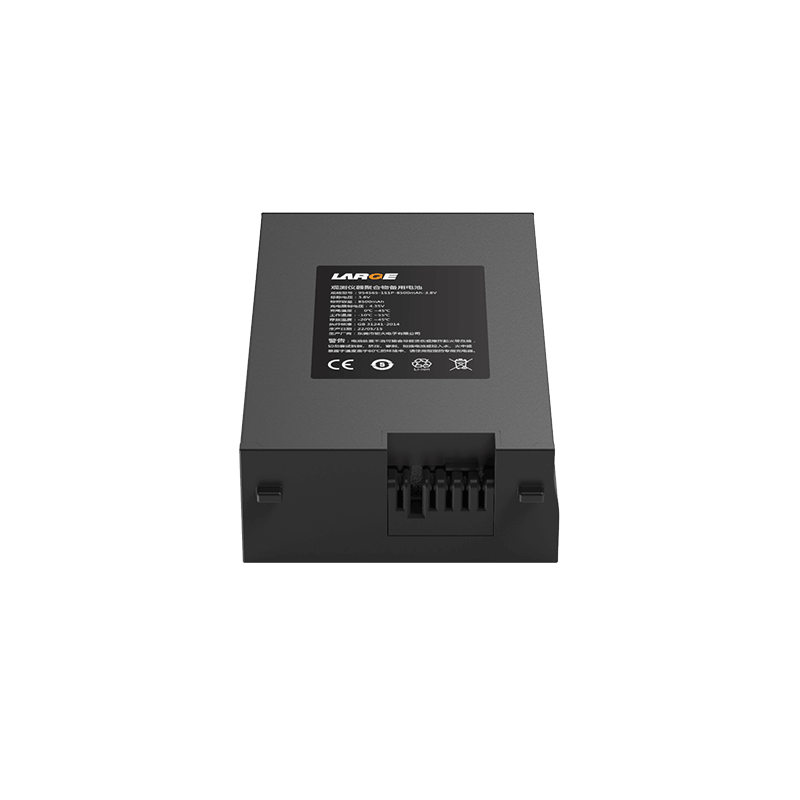

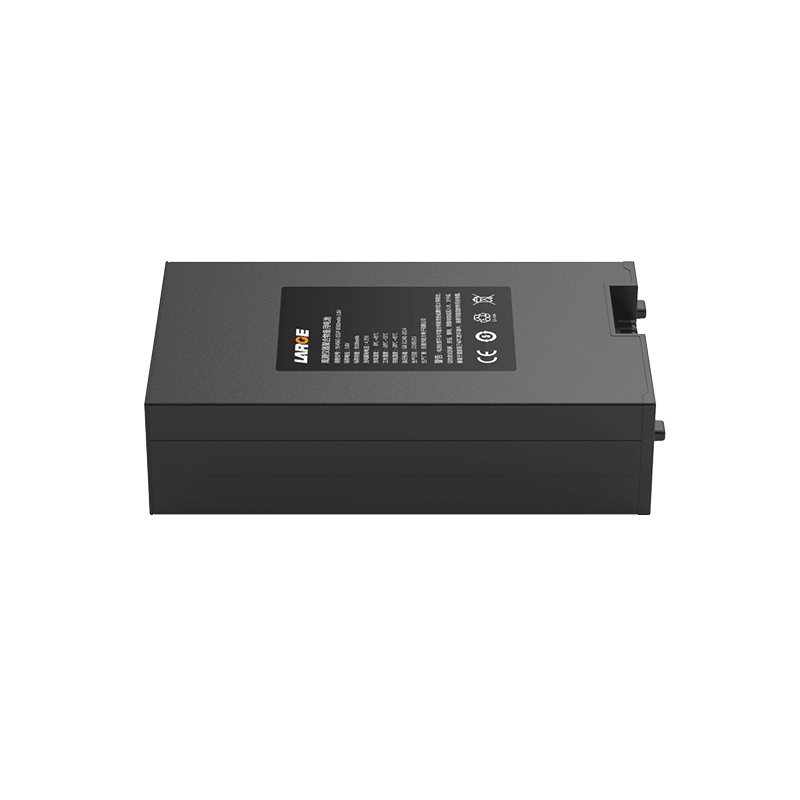

Custom Lithium ion Battery Pack
Product number: 36AQ517-08
Cell model: 954565PLV-4.35V-8500mah
Battery specification: 954565-1S1P-8500mah 3.8V
Nominal voltage: 3.8V
Nominal capacity: 8.5Ah
Charging voltage: 4.35V
Charging current: ≤3A
Discharge current: 3A
Instant discharge current: 6A
Discharge cut-off voltage: 3V
Finished internal resistance: ≤ 180mΩ
Battery weight: 100g
Product dimension: MAX80*49*20.5mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -10 ~ 55℃
Storage temperature: -20 ~ 45 ° C
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: Industrial and observation instruments
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
