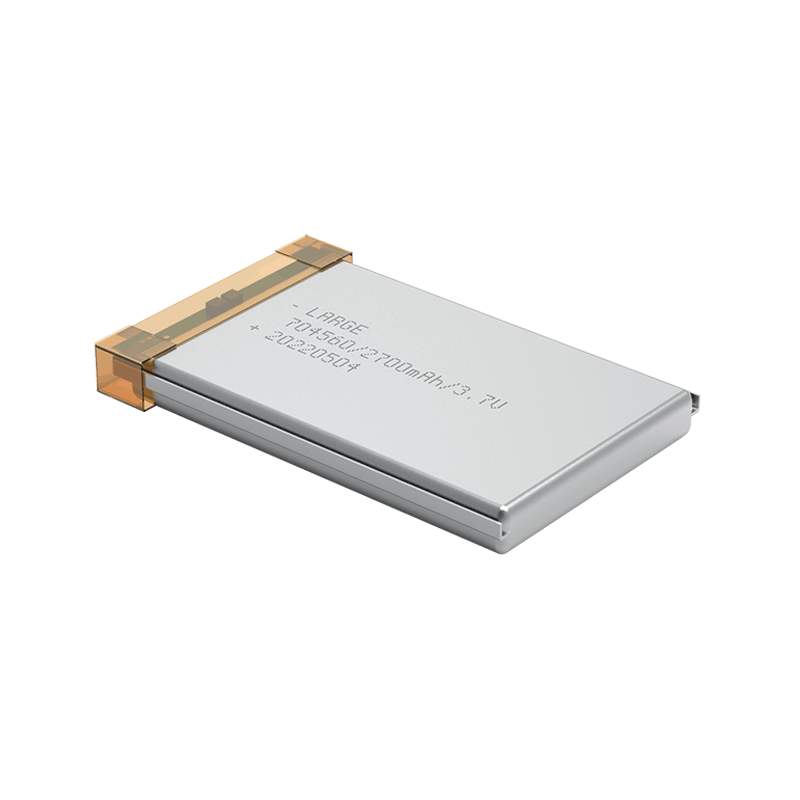

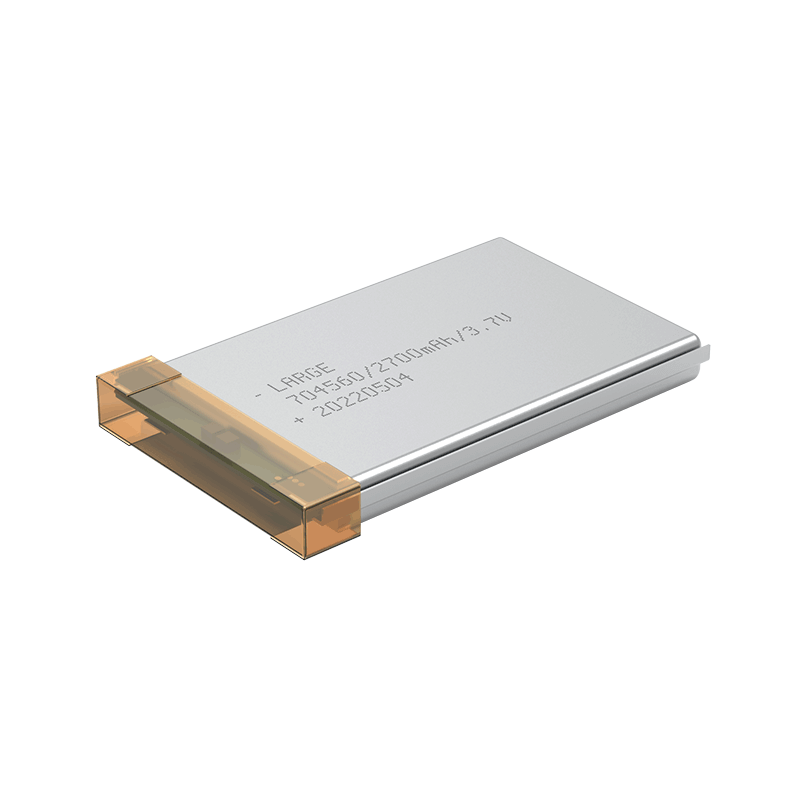

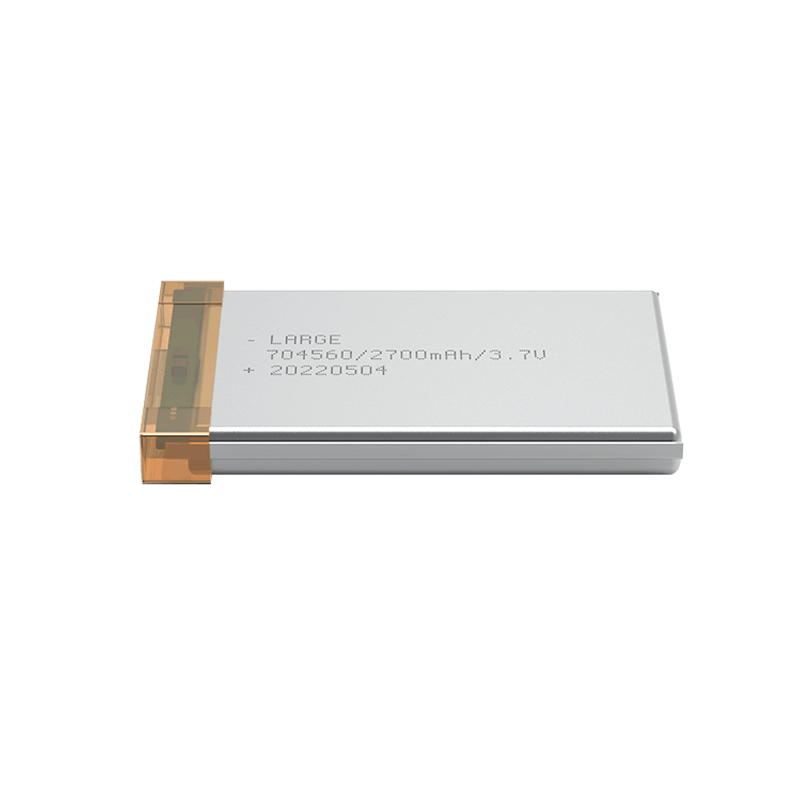

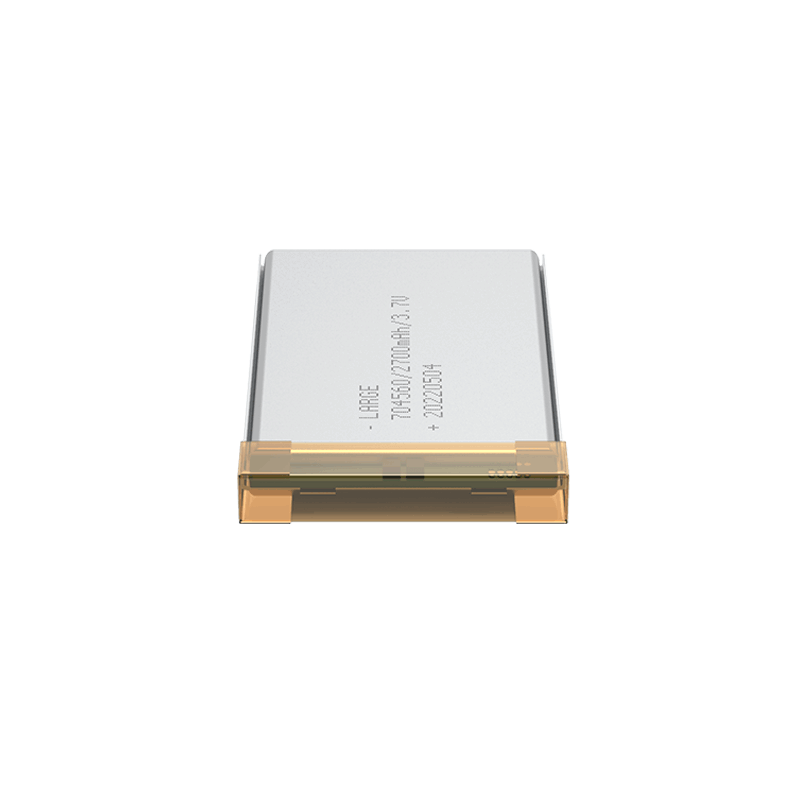

Custom Lithium ion Battery Pack
Product number: 36AQ517-07
Cell model: 704560/1S1P/2700mAh/3.7V
Battery specification: 704560-1S1P/2700mAh/3.7V
Nominal voltage: 3.7V
Nominal capacity: 2.7Ah
Charging voltage: 4.2V
Charging current: ≤1.25A
Discharge current: 1.35A
Instant discharge current: 1.35A
Discharge cut-off voltage: 3V
Finished internal resistance: ≤180mΩ
Battery weight: 100g
Product dimension: MAX62*45.5*7.5mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -10 ~ 55 ℃
Storage temperature: -10 ~ 45 ° C
Battery encapsulation: None
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: Industrial
