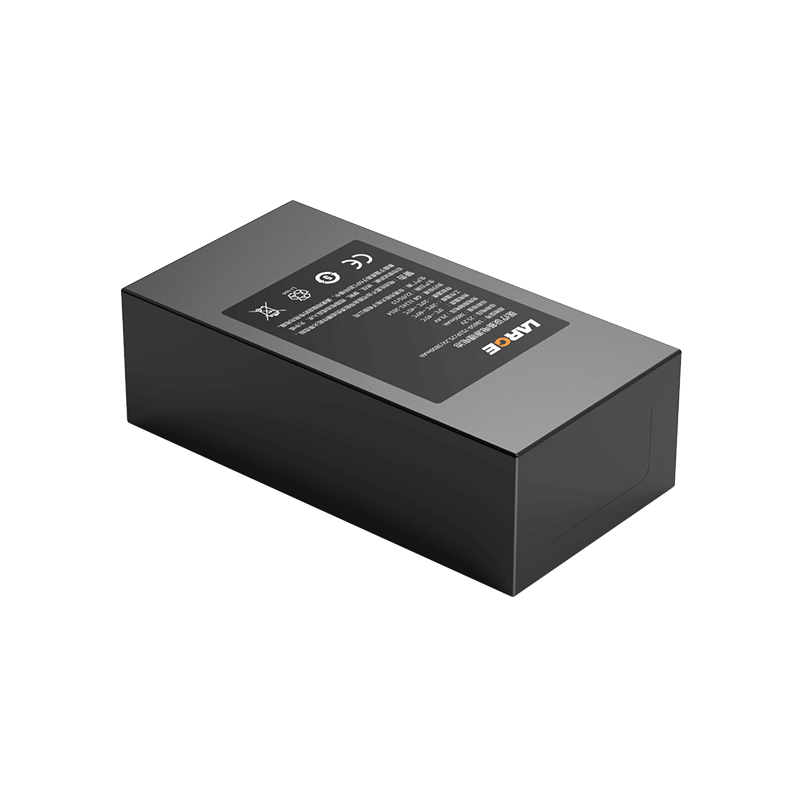

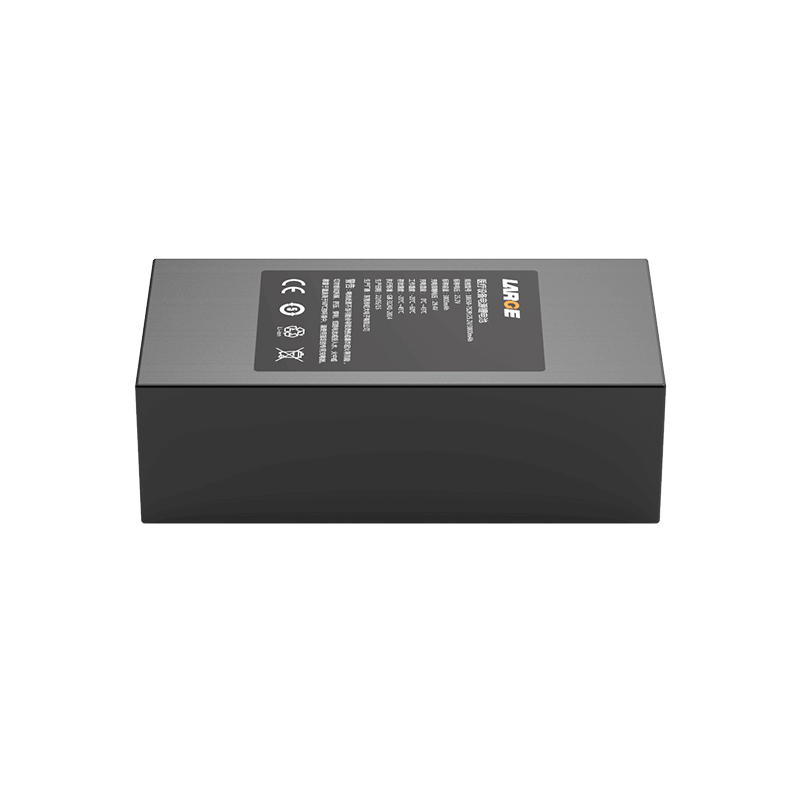

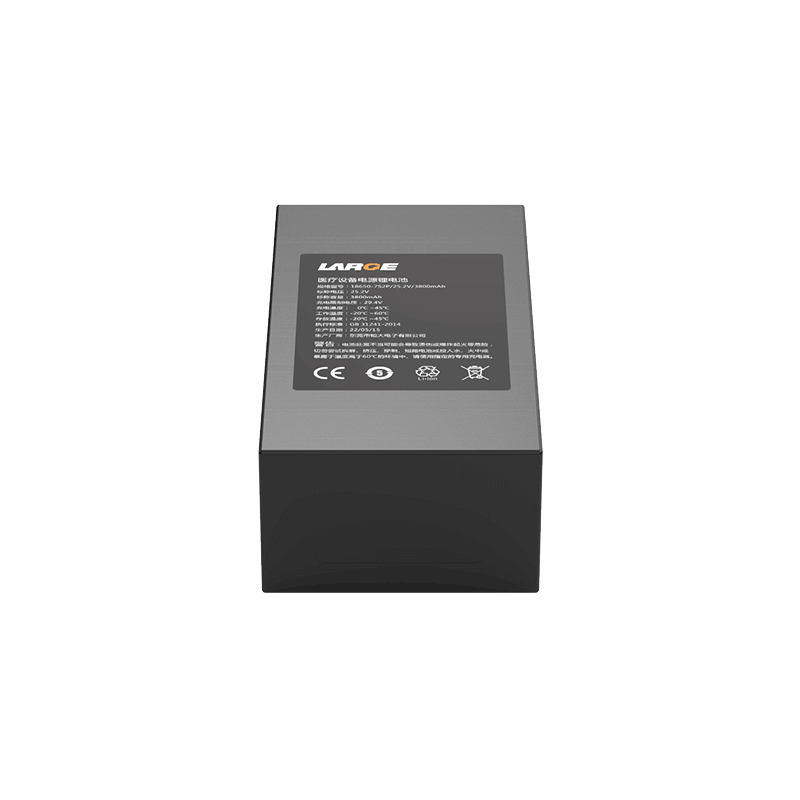

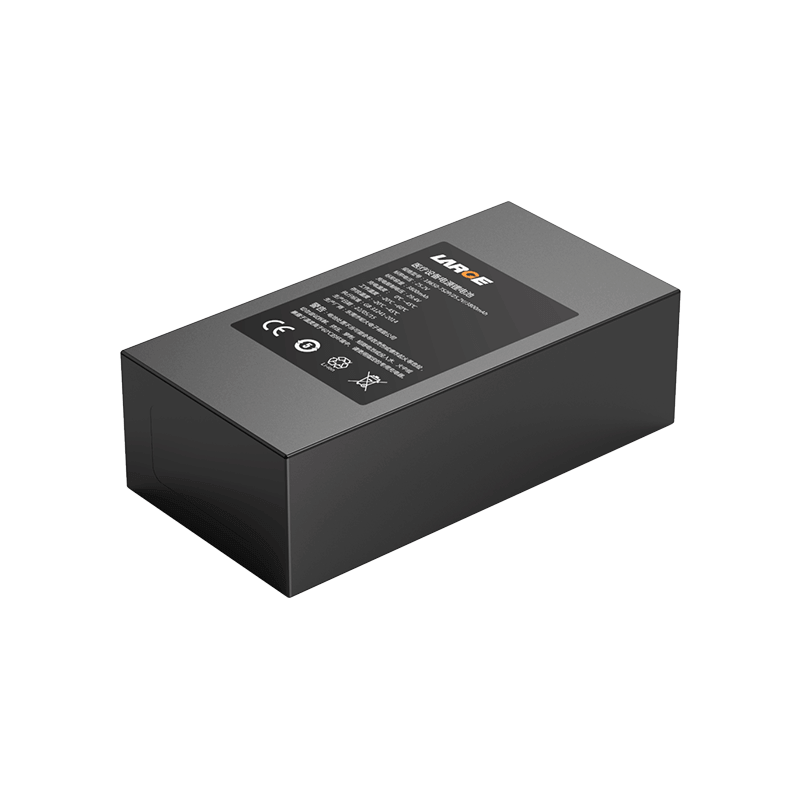

Custom Lithium ion Battery Pack
Product number: 33DZ042-01
Cell model: 18650/3.6V/2000mAh
Battery specification: 18650-7S2P/25.2V/3800mAh
Nominal voltage: 25.2V
Rated capacity: 3800mAh
Charging voltage: 29.4V
Charging current: ≤4A
Discharge current: ≤3.0A
Instant discharge current: 20-40A
Discharge cut-off voltage: 18V
Finished internal resistance: ≤200mΩ
Battery weight: 750g
Product dimension: 45*75*145 mm (Max)
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 ~ 45 ° C
Temperature protection: 70℃±5℃
Battery encapsulation: PVC
Lithium battery protection: short circuit protection, over-charge protection, over-discharge protection, over-current protection, temperature protection, anti-reverse connection protection, etc.
Application: Medical equipment
