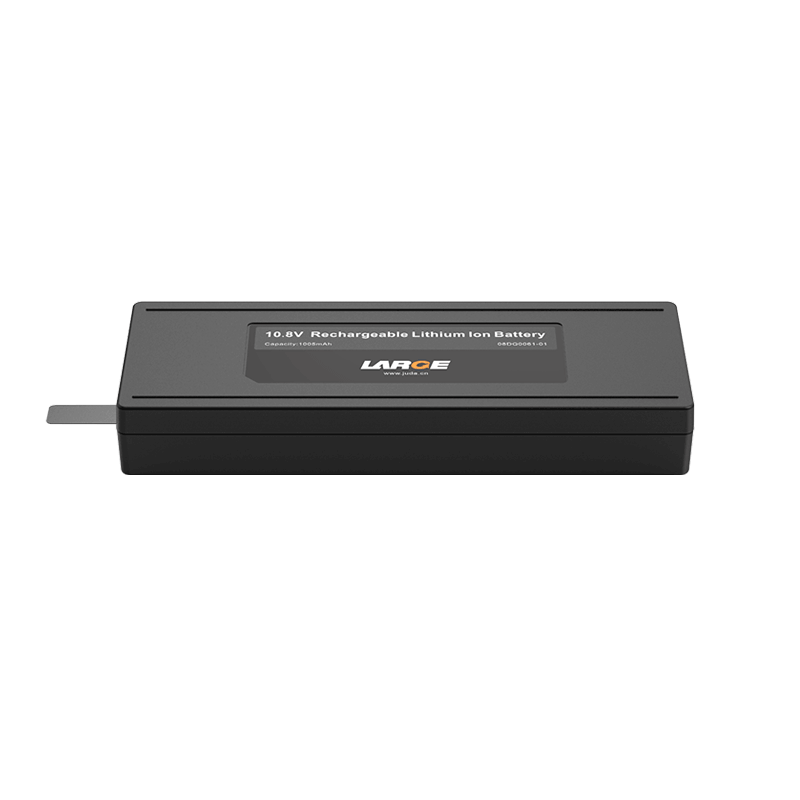

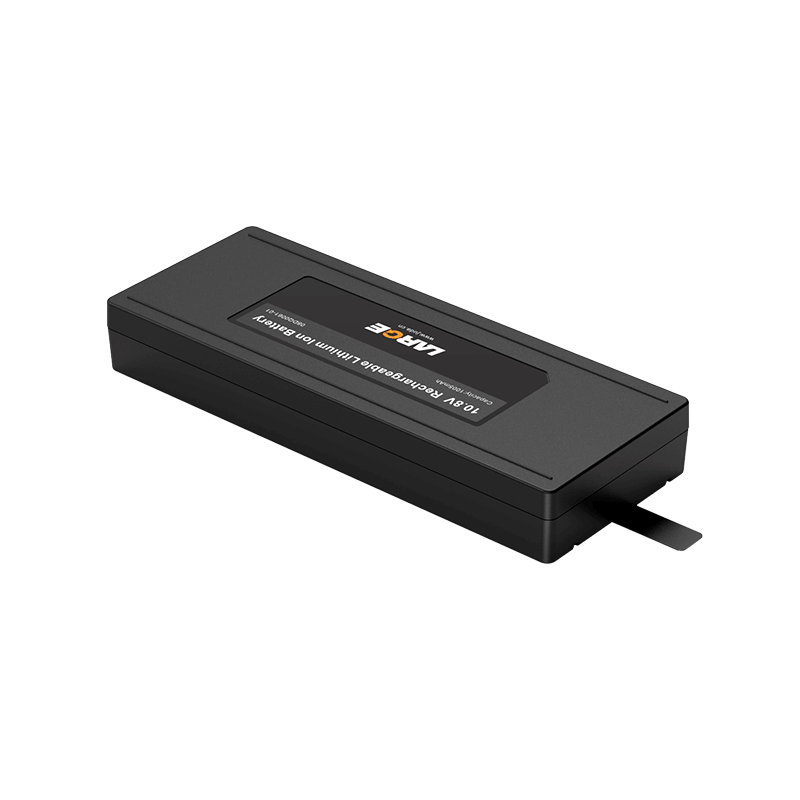

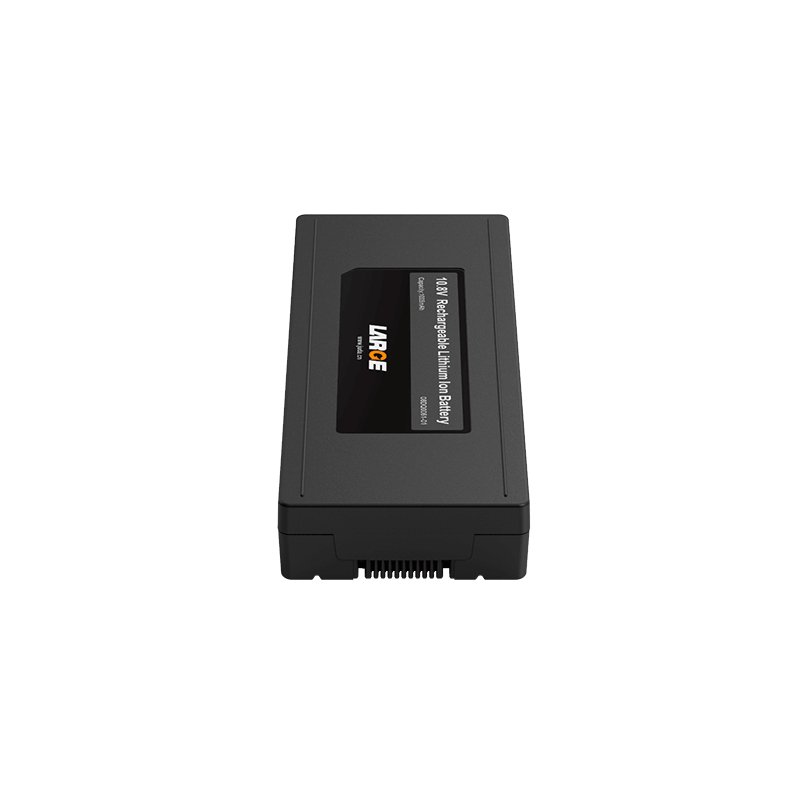

Custom Lithium ion Battery Pack
Project number: 08DQ0061-01
Cell model: INR18650-35E/3350mAh/3.6V-SDI
Battery specification: 18650-3S3P/10.05Ah/10.8V
Nominal voltage: 10.8V
Nominal capacity: 10.05Ah
Charging voltage: 12.6V
Charging current: ≤5.0A
Discharge current: 15.0A
Instant discharge current: 30.0A
Discharge cut-off voltage: 8.4V
Finished internal resistance: ≤250mΩ
Battery weight: 700g
Product dimension: 26.5*72.2*185.2mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 ~ 23 ° C
Battery case: ABS+PC
Intelligent lithium battery protection: power management, short-circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc.
Application: ECMO medical devices
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
