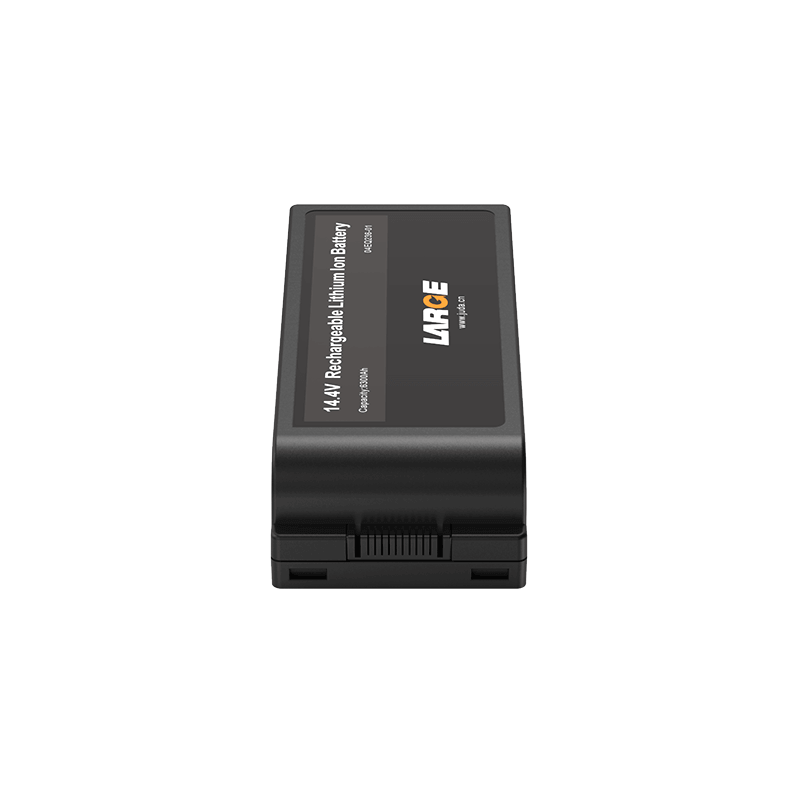

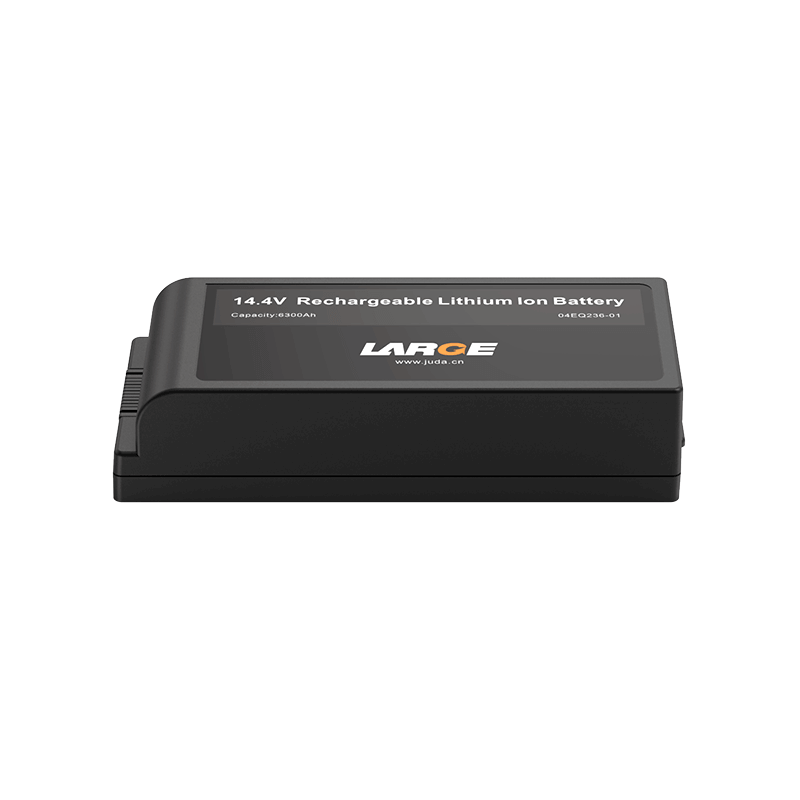

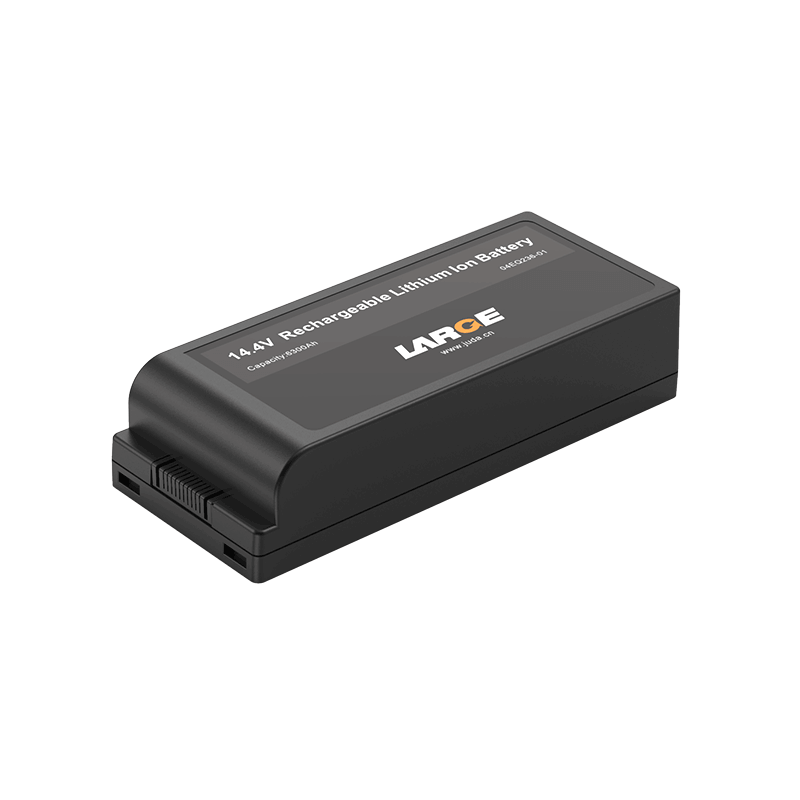

Custom Lithium ion Battery Pack
Prouct number : 09AQ109-22
Batteries model: NCR18650GA6W / 3350 mah / 3.6 V
Battery specification: 18650-4S2P/6700mAh/14.4V (Smart + case)
Nominal voltage: 14.4V
Nominal capacity: 6700mAh
Charging voltage: 16.8V
Charging current: ≤3.35A
Discharge current: 10.0A
Instantaneous discharge current: 15.0A
Discharge cut-off voltage: 11.2V
Finished internal resistance: ≤250mΩ
Battery weight: 550g
Product dimension: 40.2*75.1*177.4mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 ~ 23 ° C
Battery case: ABS+PC
Intelligent lithium battery protection: power management, short-circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc.
Application: B ultrasound machine
