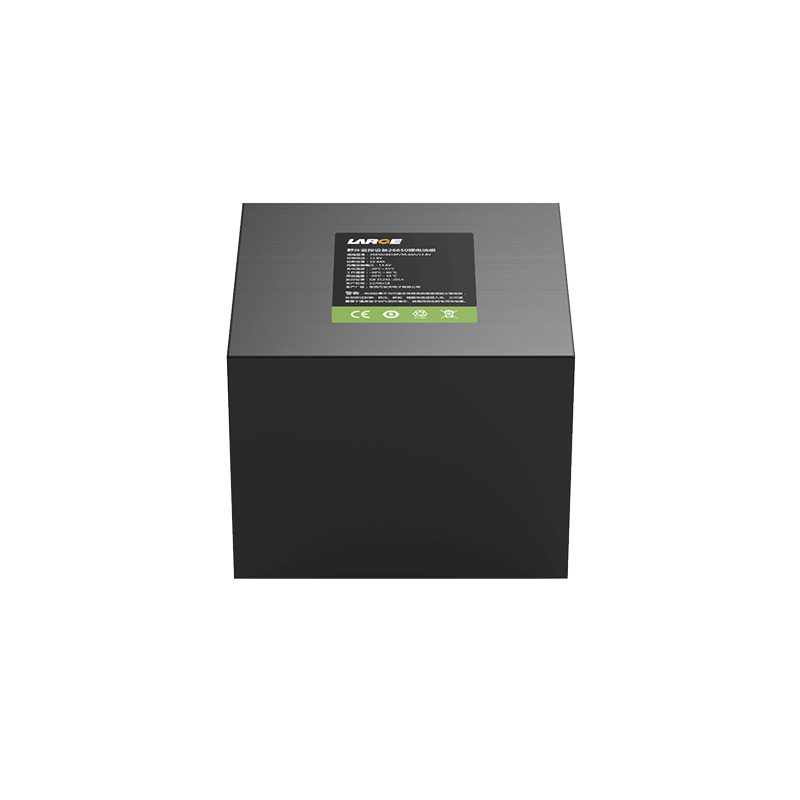

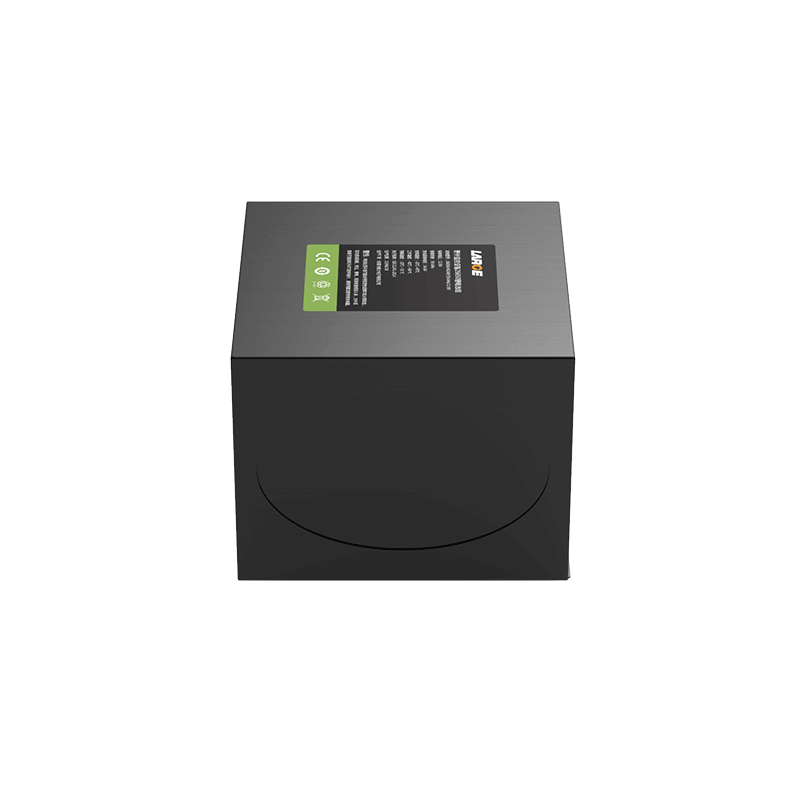

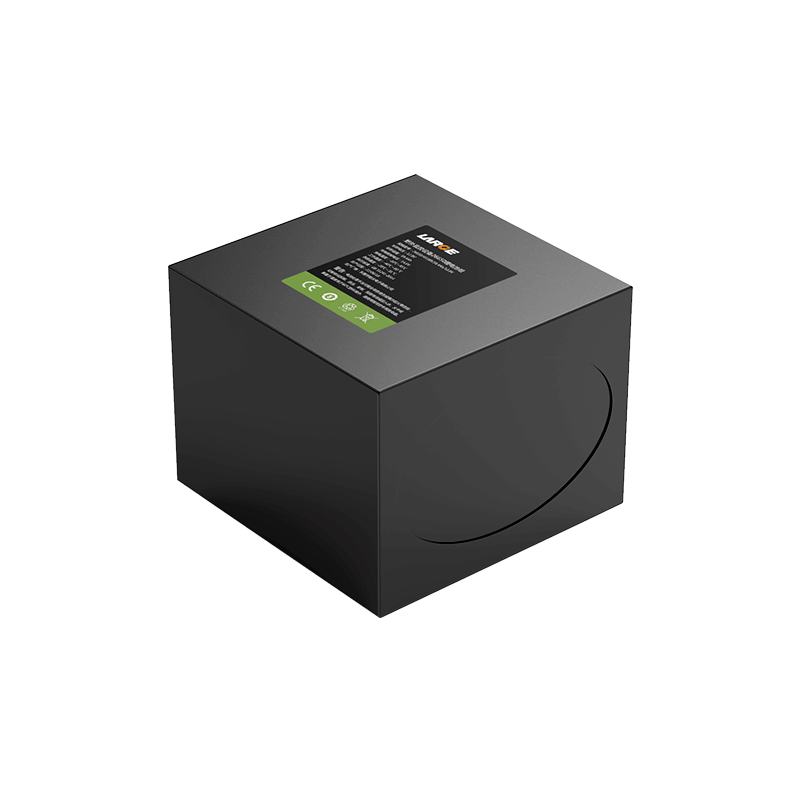

Custom Lithium ion Battery Pack
Product number: 01WQ0090-01
Cell model: 26650/3300mAh/ 3.2V-Low temperature
Battery specification: 26650-4S18P/59.4AH/12.8V
Nominal voltage:12.8 V
Nominal capacity: 59.4Ah
Charging voltage: 14.6V
Charging current: ≤20.0A
Discharge current: 20.0A
Instant discharge current: 30A
Discharge cut-off voltage: 10.0V
Finished internal resistance: ≤150mΩ
Battery weight: 10kg
Product dimension: 140*179*183mm
Charging temperature: -20 ~ 45℃
Discharge temperature: -40 ~ 60℃
Storage temperature: -20 ~ 35℃
Battery case: None
Intelligent lithium battery protection: power management, short-circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc.
Application: Field monitoring equipment
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
