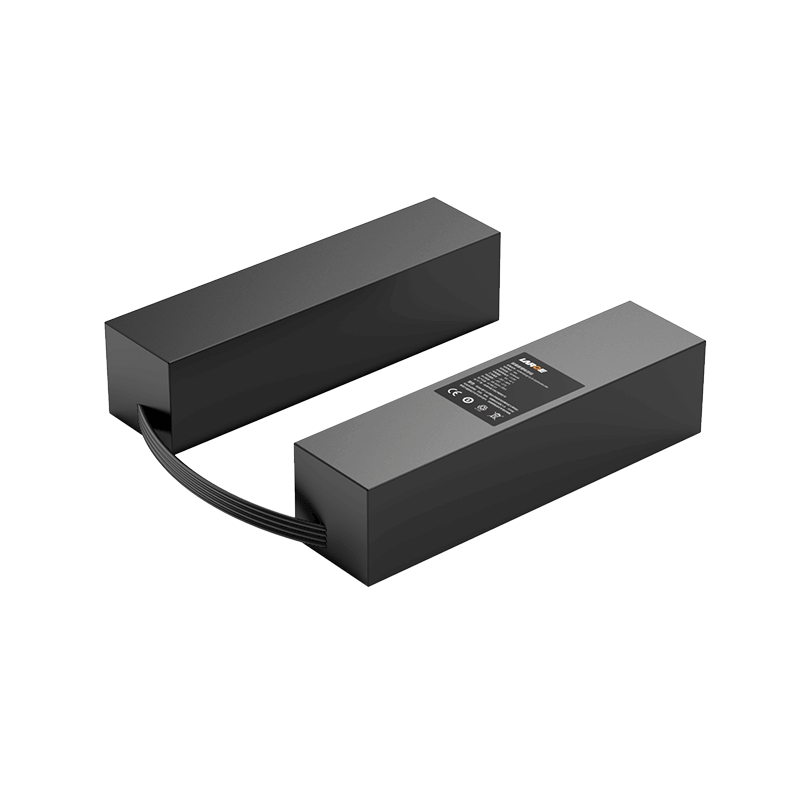

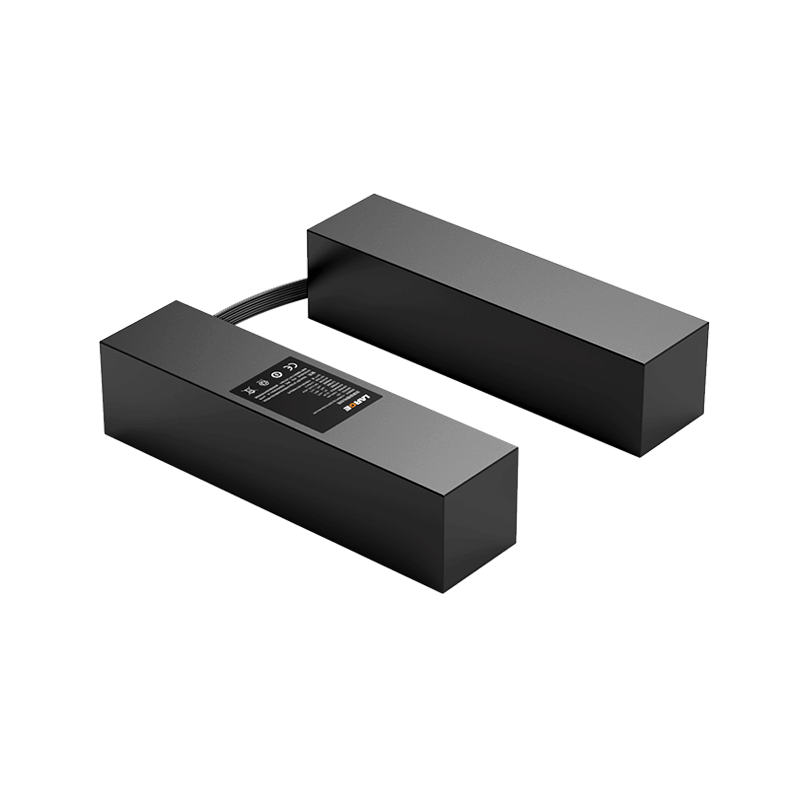

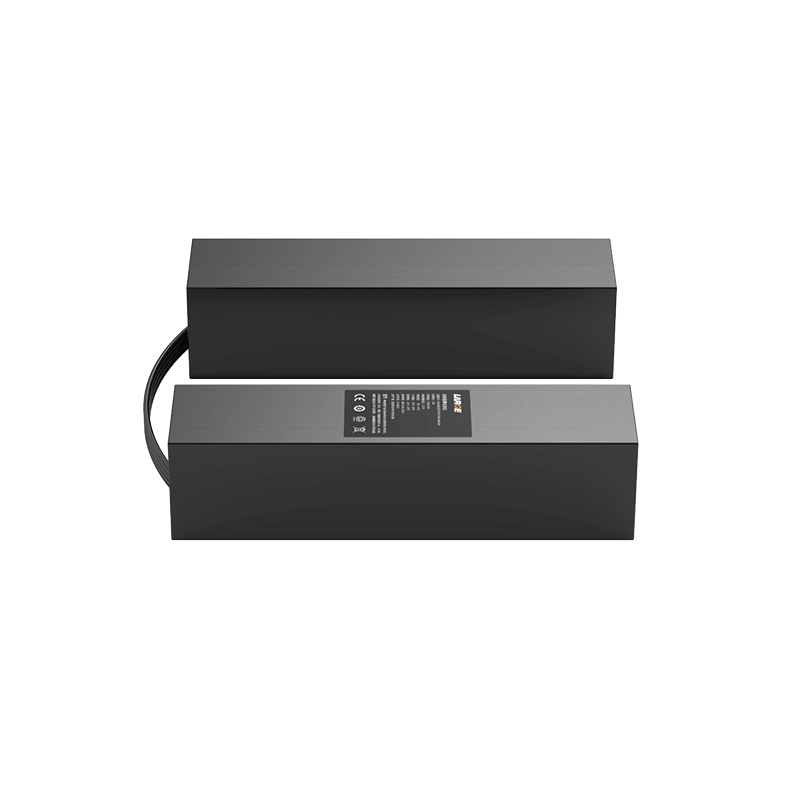

Custom Lithium ion Battery Pack
Product number: 05DQ0061-01
Cell model: IFR26650/3400mAh/3.2V
Battery specification: IFR26650-8S5P/17.0AH/25.6V
Nominal voltage: 25.6V
Nominal capacity: 17.0Ah
Charging voltage: 29.2V
Charging current: ≤5.0A
Discharge current: 15.0A
Instant discharge current: 20A
Discharge cut-off voltage: 20.0V
Finished internal resistance: ≤100mΩ
Battery weight: 4000g
Product dimension: 62*70*72*285mm
Charging temperature: -20 ~ 45℃
Discharge temperature: -40 ~ 60℃
Storage temperature: -20 ~ 35℃
Battery case: None
Intelligent lithium battery protection: power management, short-circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc.
Application: Medical cart
