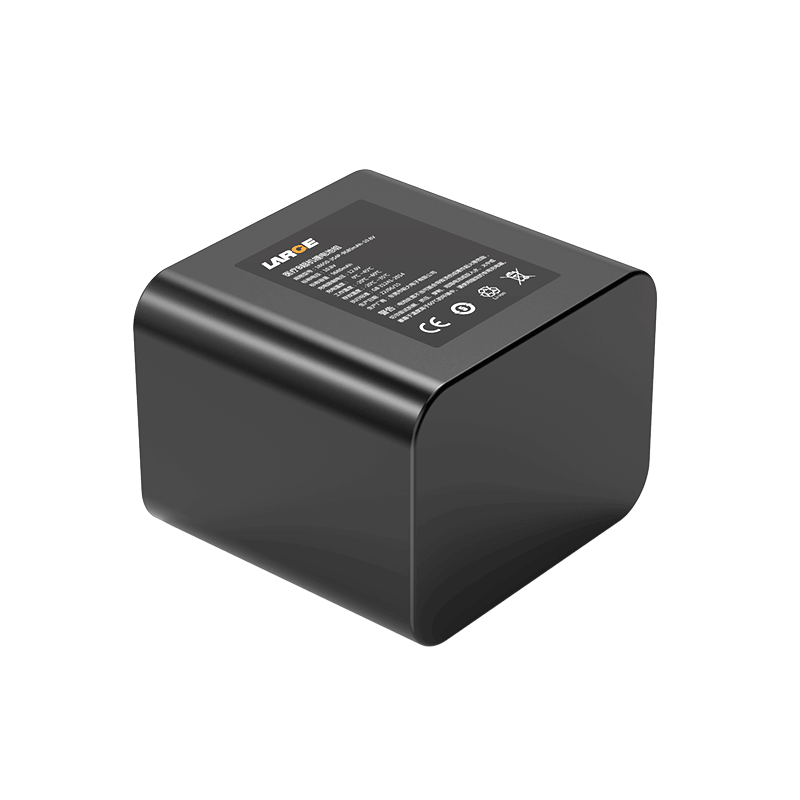

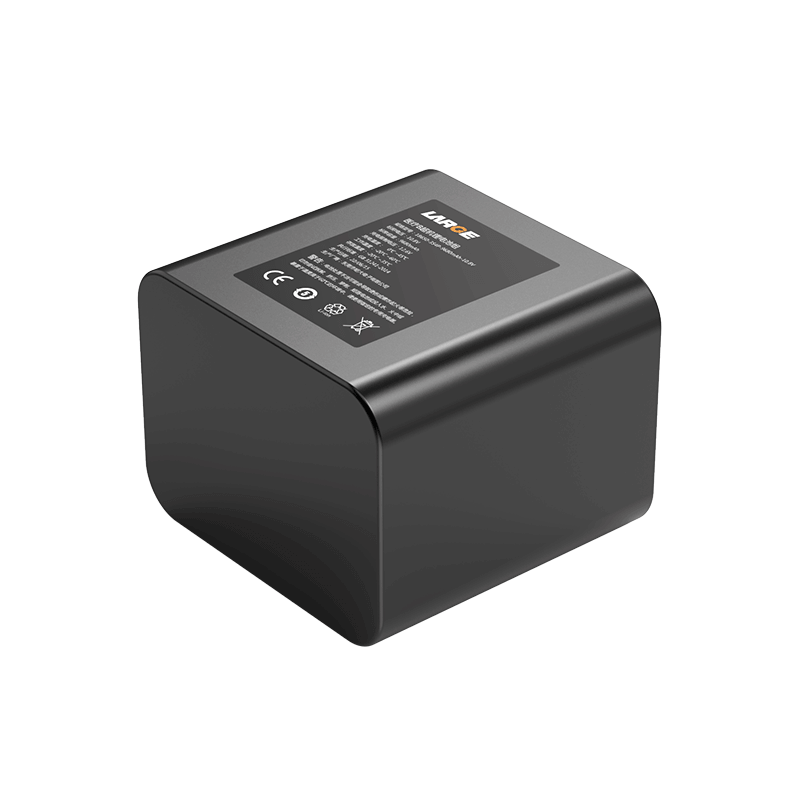

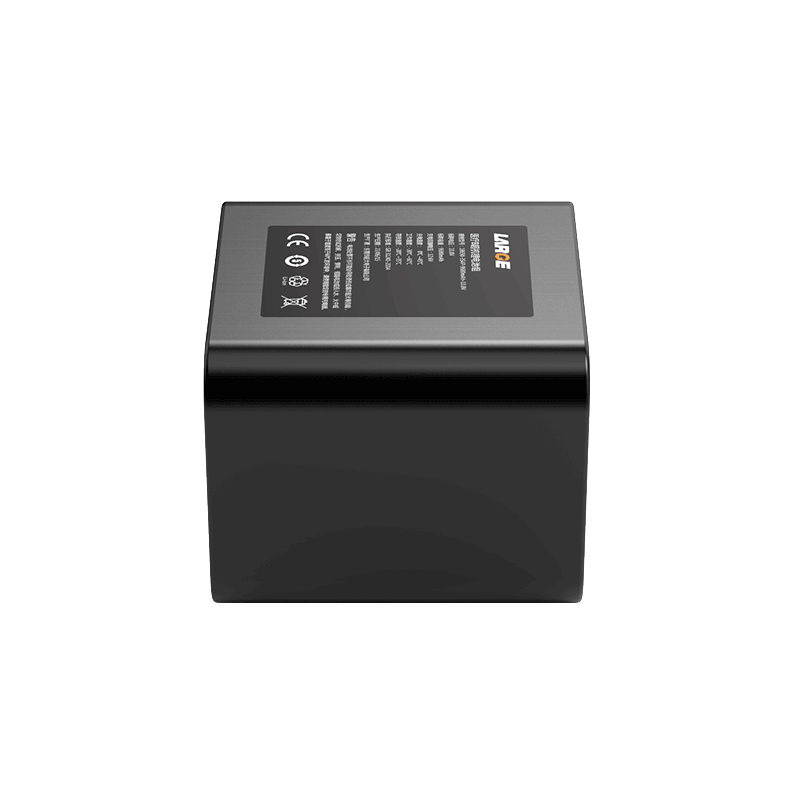

18650 10.8V 9680mAh Lithium-ion Battery Pack for B Supersonic Diagnostic Set

Customization | Free Battery Solution

Product Detail

Product number: 01DQ0152-01

Cell model: 18650-2420 MaH-3.6V

Battery specification: 18650-3S4P-9680mAh-10.8V

Product dimension: 76*57*72mm (Max)

Nominal voltage: 10.8V

Nominal capacity: 9680mAh

Finished internal resistance: ≤200mΩ

Charging voltage: 12.6V

Charging current: ≤4.8A

Discharge current: ≤4.8A

Discharge cut-off voltage: 9.0V

Battery weight: 600g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 35℃

Battery case: blue PVC heat shrinkable film

Output mode: MOLEX plug

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection,ESD protection and so on

Application: Portable ultrasound B ultrasound equipment, portable medical equipment
