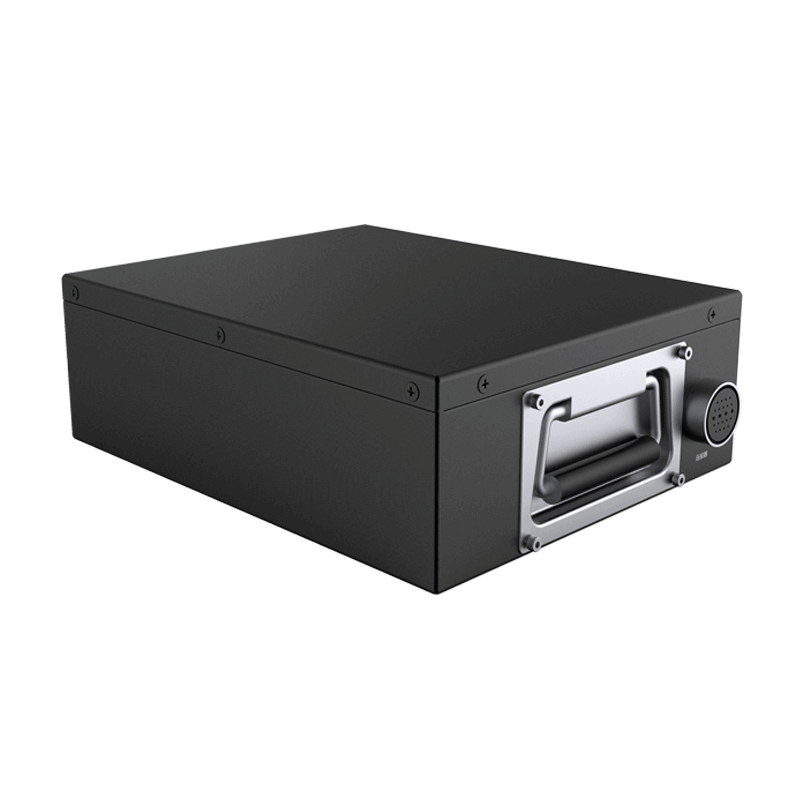

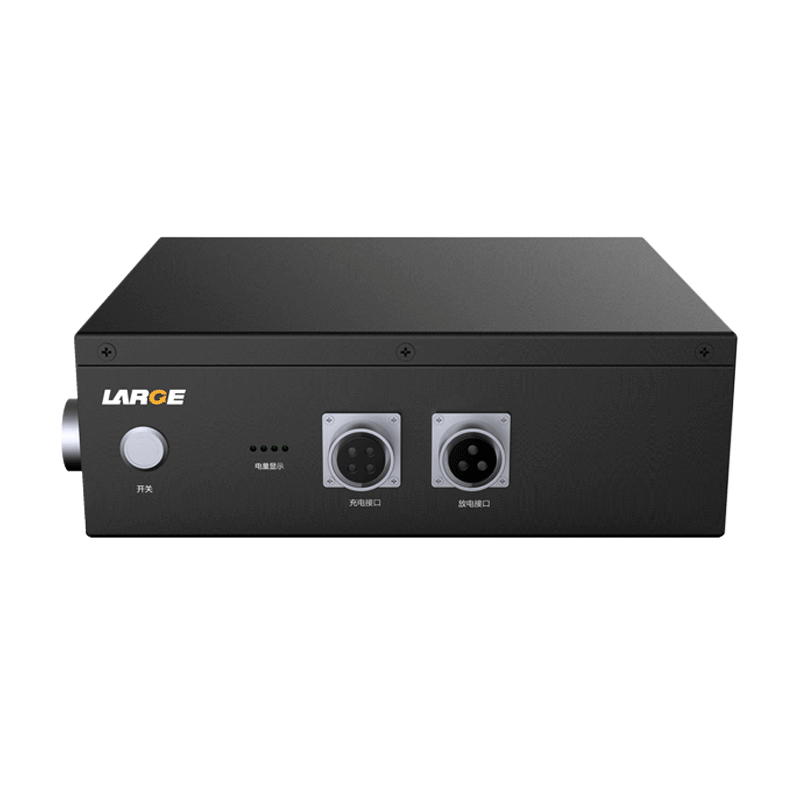

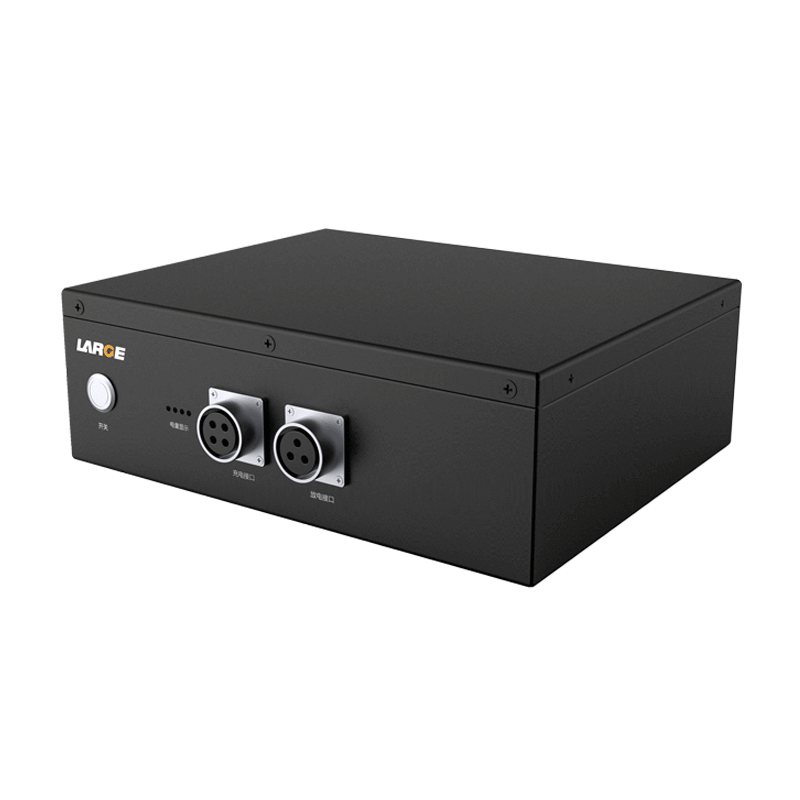

Custom Lithium ion Battery Pack
Product number: 32AQ005-01
Cell model：18650/3.6V/3.35Ah
Battery specification: 18650/13S4P/46.8V/13Ah
Nominal voltage：46.8V
Nominal capacity：13Ah
Charging voltage: 54.6V
Charging current: ≤3A
Discharging current: 5A
Instant discharging current: 20A
End-off voltage: 36.4V
Internal resistance: ≤250mΩ
Battery weight: 5kg
Product dimension: 400×400×100（Max）
Charging temperature：0～45℃
Discharging temperature: -20～60 ℃
Storage temperature: -20～55 ℃
Battery case: cold rolling and metal plate
Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection.
Application field: drilling machine, robot, AGV, RGV
Product features
1. Dustproof and shock-resistant: fill in the shock-resistant structure inside the cold rolling metal plate housing to satisfy the requirements of good security and high reliability.
2. Large current: connect the battery by copper nickel compositing with nickel strap, which is safe and reliable.
3. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
