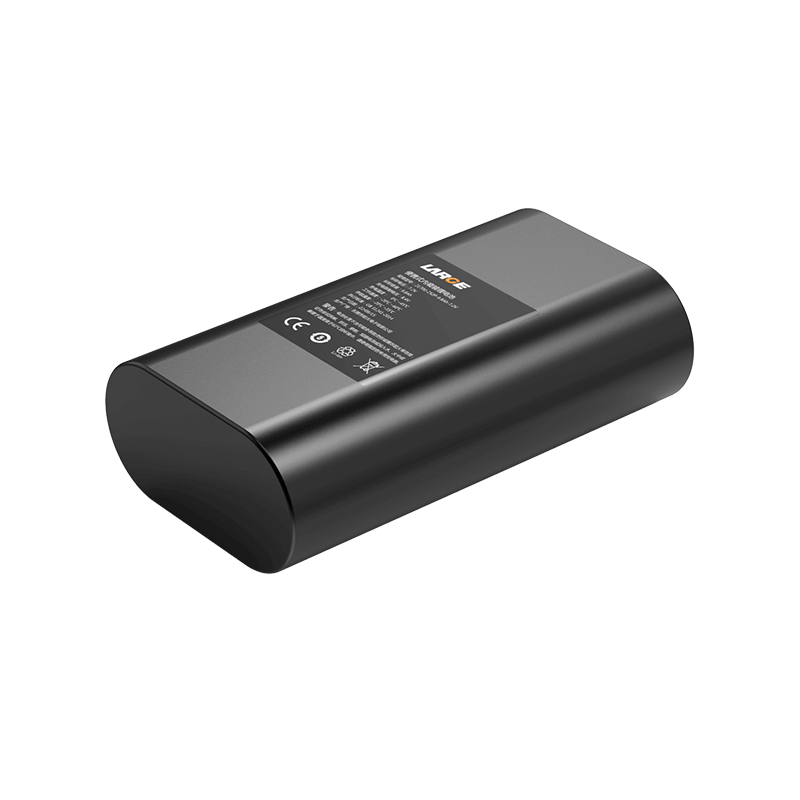

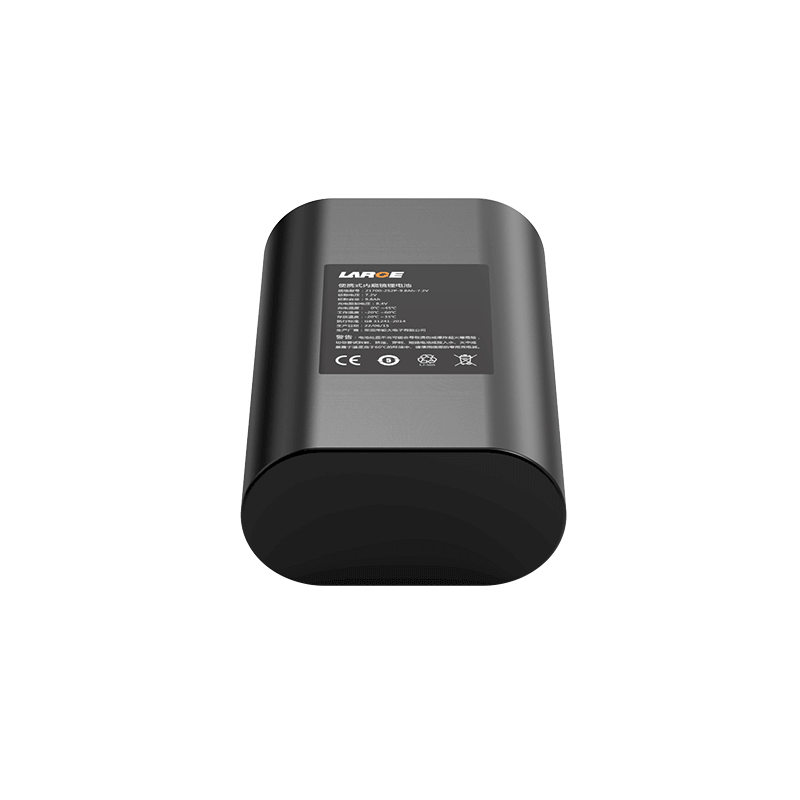

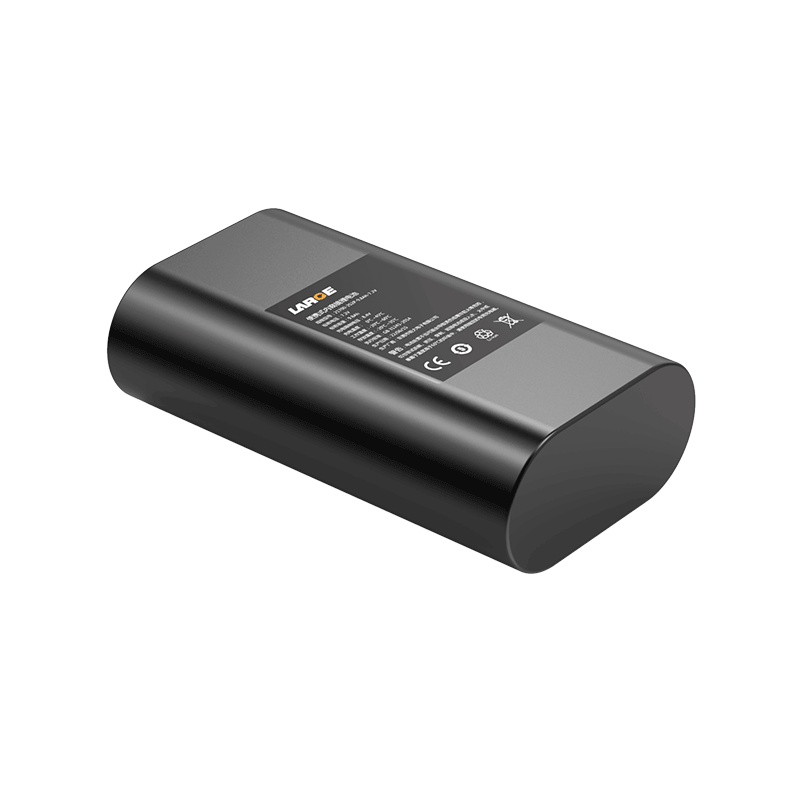

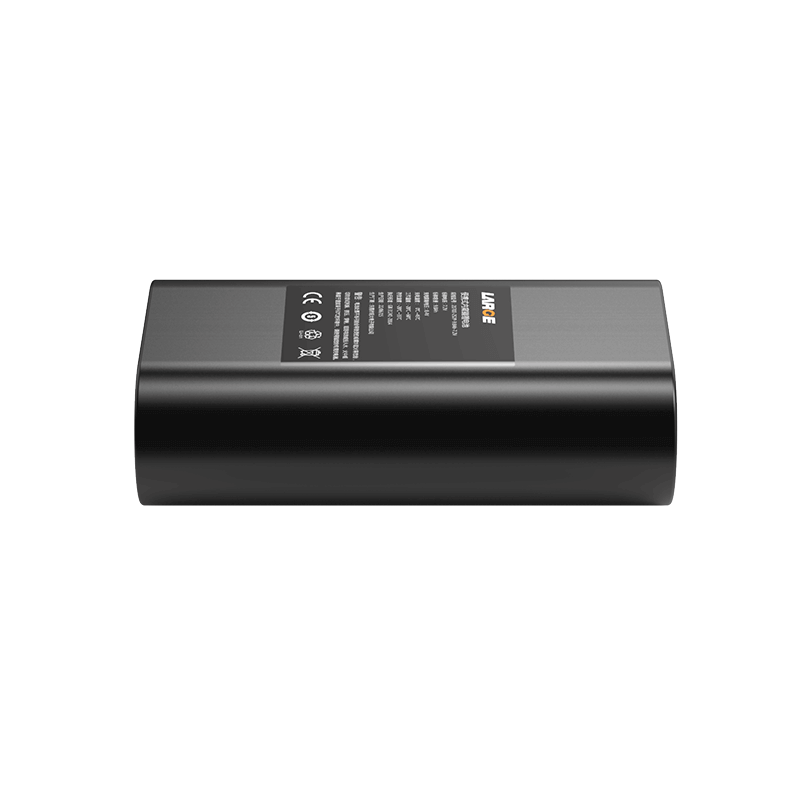

21700 7.2V 9.8Ah Lithium-ion Battery for Portable Endoscopic

Product number: 05DQ0064-01

Cell model: 21700-4900mAh-3.6V

Battery specifications: 21700-2S2P-9.8Ah-7.2V

Product size: 90*76*22.5mm

Nominal voltage: 7.2V

Nominal capacity: 9.8Ah

Finished internal resistance: ≤200mΩ

Charging voltage: 8.4V

Charging current: ≤3A

Discharge current: ≤3A

Discharge cut-off voltage: 5.0V

Battery weight: 350g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 35℃

Battery package: blue PVC heat shrinkable film

Output mode: JST plug output

Lithium protection: short circuit protection, over charge protection, over discharge protection, over current protection,ESD protection and so on

Application: Portable medical endoscope equipment, portable medical equipment
