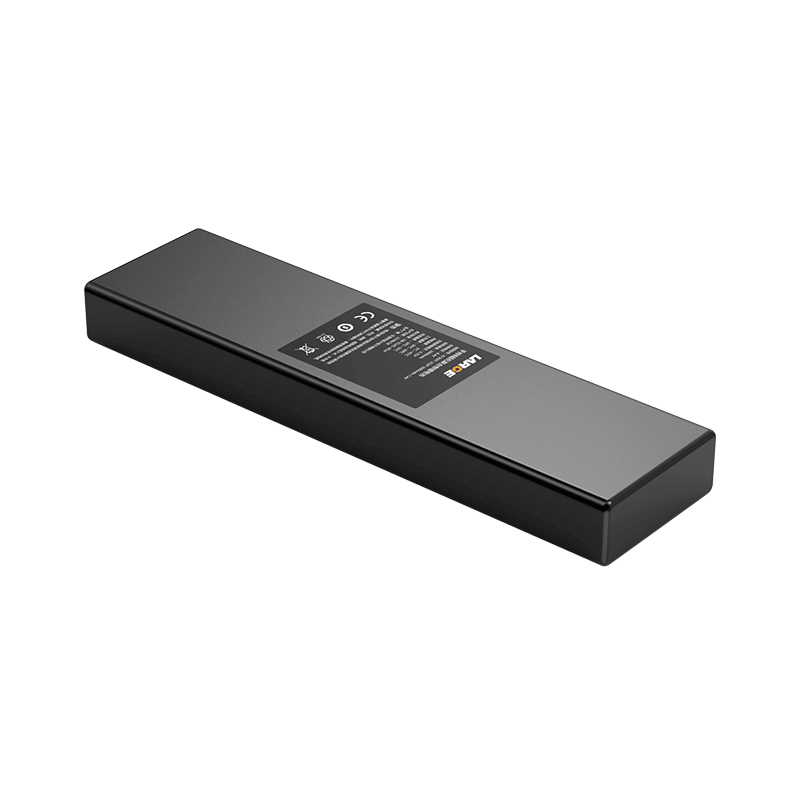

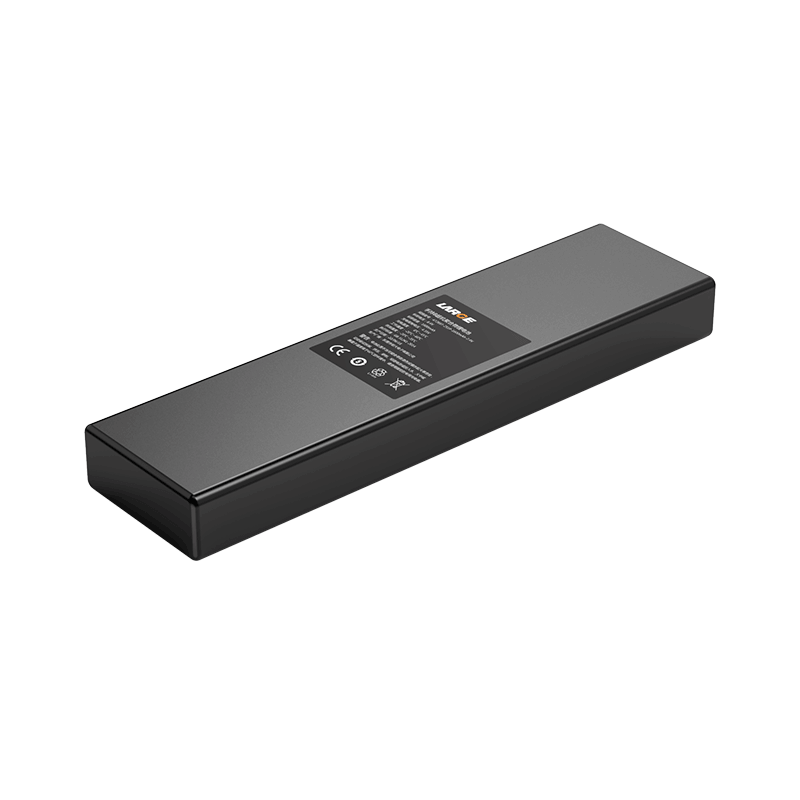

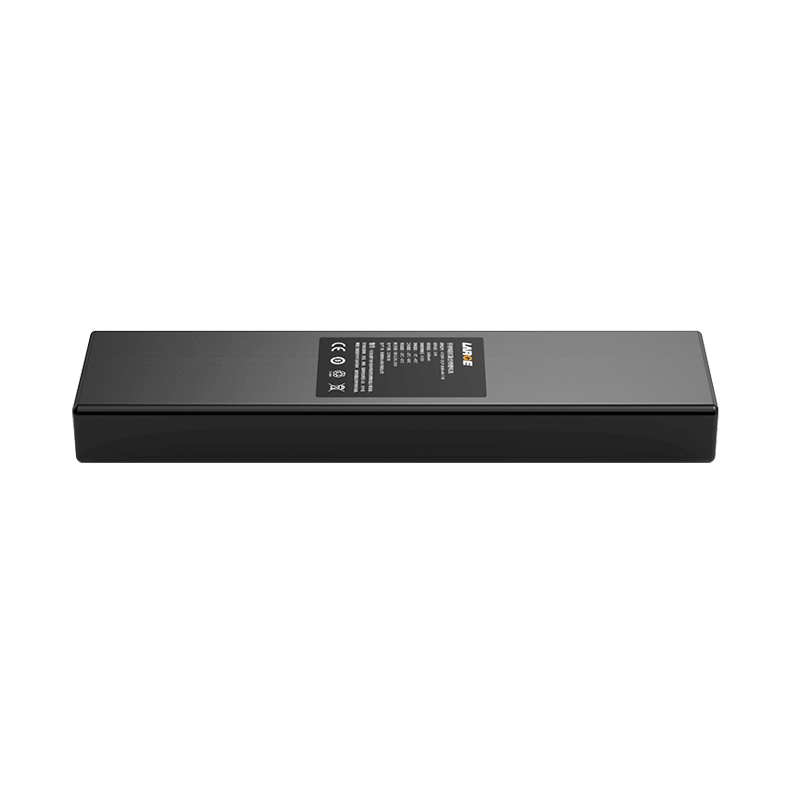

Custom Lithium ion Battery Pack
Product number: 06DQ061-01
Cell model: 472697-1600 MAH-3.7V
Battery specification: 472697-2S1P-1600mAh-7.4V
Product size: 103*27.5*10.5mm (Max)
Nominal voltage: 7.4V
Nominal capacity: 1600mAh
Finished internal resistance: ≤180mΩ
Charging voltage: 8.4V
Charging current: ≤3.2A
Discharge current: ≤1.4A
Discharge cut-off voltage: 6.0V
Battery weight: 60g
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 ~ 35℃
Battery package: blue PVC heat shrinkable film
Output mode: JST plug output
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection,ESD protection and so on
Application: Portable medical B-ultrasound, portable equipment
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
