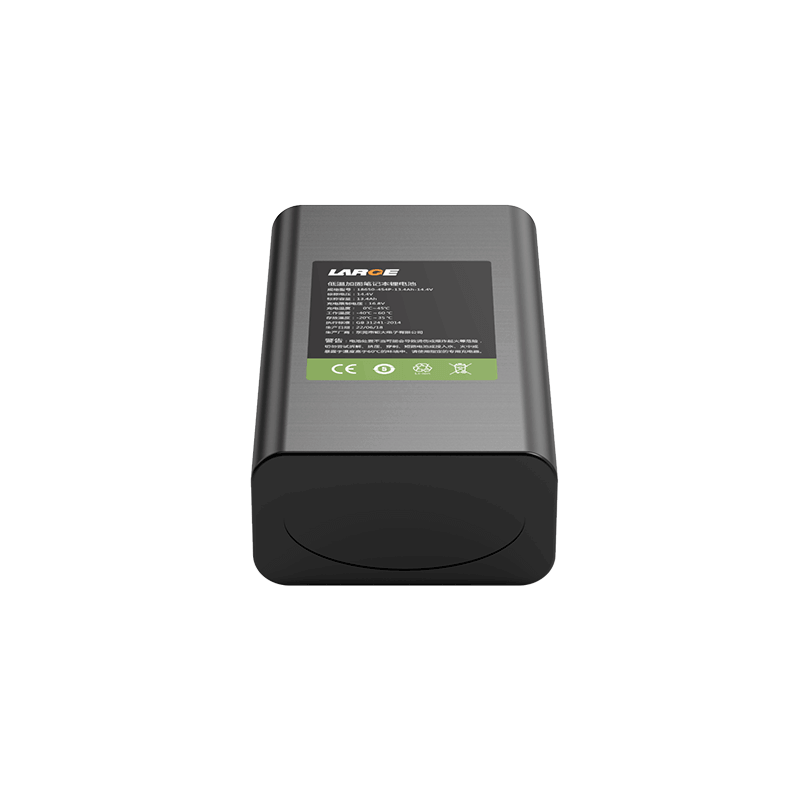

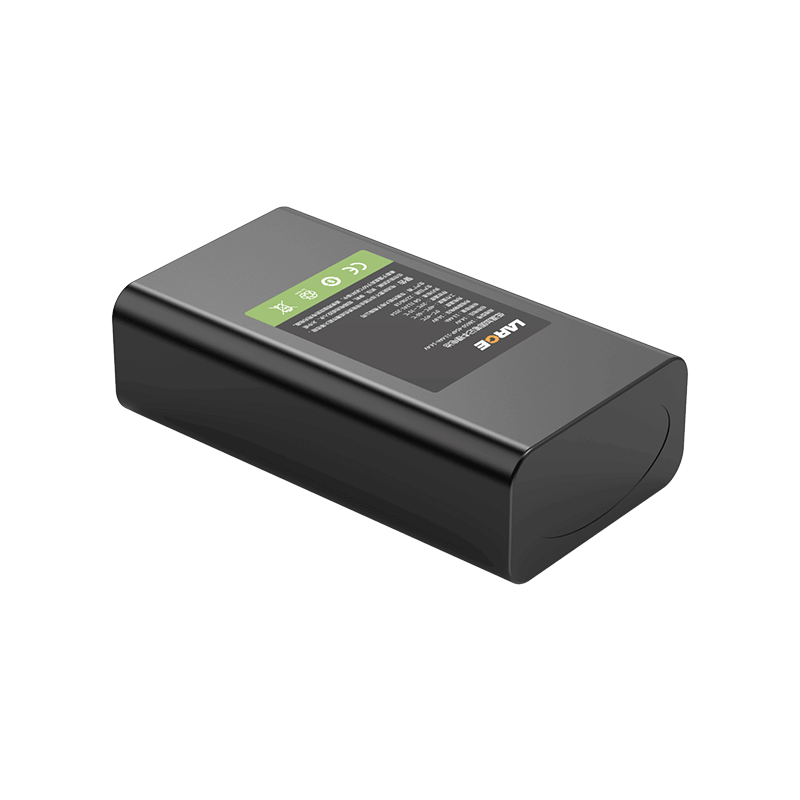

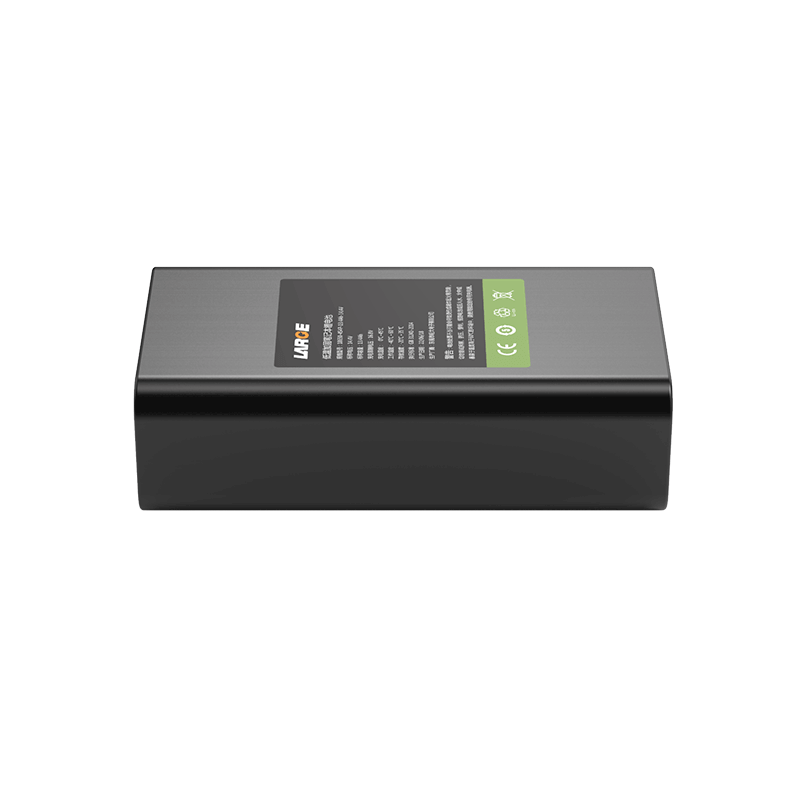

18650 14.4V 13.4Ah Low Temperature Battery for Rugged Laptop

Customization | Free Battery Solution

Product Detail

Product number: 08DQ0062-01

Cell model: 18650-3350 mah -3.6V

Battery specification: 18650-4S4P-13.4Ah-14.4V

Product dimension: 138*76*40mm

Nominal voltage: 14.4V

Nominal capacity: 13.4Ah

Finished internal resistance: ≤180mΩ

Charging voltage: 16.8V

Charging current: ≤4.5A

Discharge current: ≤4.5A

Discharge cut-off voltage: 10.0V

Battery weight: 500g

Charging temperature: 0 ~ 45℃

Discharge temperature: -40 ~ 60℃

Storage temperature: -20 ~ 35℃

Battery case: blue PVC heat shrinkable film

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over temperature protection, over current protection,ESD protection and so on

Applications: Laptop, reinforced laptop, portable devices

Product Features

1.Blue PVC heat shrinkable film package is simple and reliable, and is easy to install;

2.Connector plug output terminal: Use the JST plug output method to increase the electrical conductivity of the plug.

3.Discharge lithium battery at a low temperature of -40℃;

4.Battery protection management: Use special lithium battery protection chip with good stability, high precision monitoring, precise control and temperature protection and other functions, so as to maximize the elimination of safety hazards;

5.Data communication management: Use TI-SMBus software to manage the chip, SMBus communication for precise data transmission, accurate temperature control, so as to maximize the elimination of security hazards.

6.The battery pack is safe and has good low-temperature discharge performance, supporting -40℃ discharge, and the discharge amount reaches more than 80%.

7.The battery pack has good safety, nice discharge performance and long cycle life;

8.The battery pack has long cycle life, in line with the value of low carbon, energy saving and environmental protection;
