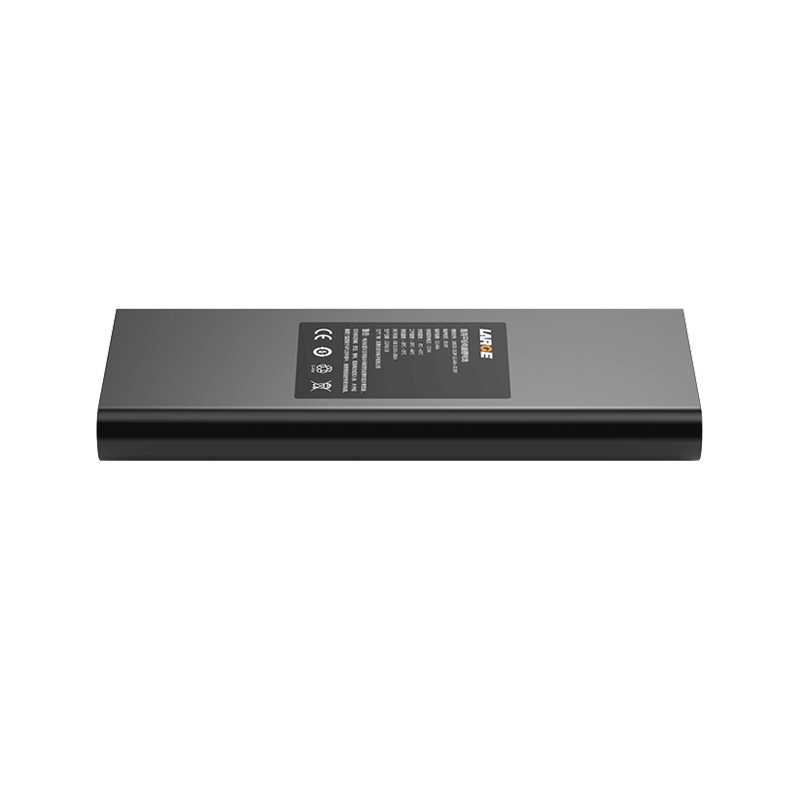

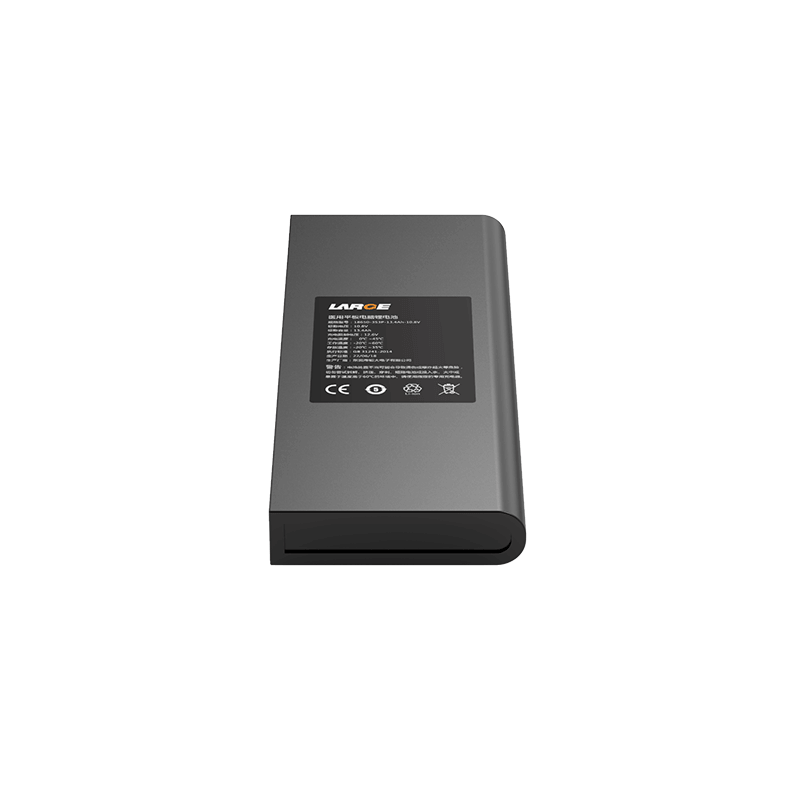

18650 10.8V 13.4Ah Lithium-ion Battery for Medical Laptop

Customization | Free Battery Solution

Product Detail

Product number: 08DQ0017-03

Cell model: 18650-3350mAh-3.6V

Battery specification: 18650-3S3P-13.4Ah-10.8V

Product size: 199*78*20mm (Max)

Nominal voltage: 10.8V

Nominal capacity: 13.4Ah

Charging voltage: 12.6V

Charging current: ≤4A

Discharge current: ≤6A

Discharge cut-off voltage: 9.0V

Finished internal resistance: ≤330mΩ

Battery weight: 500g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 35℃

Battery package: blue PVC heat shrinkable film

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over temperature protection, over current protection,ESD protection and so on

Applications: Portable medical devices, laptop, portable devices

Product Features

1.Blue PVC heat shrinkable film package is simple, reliable and easy to install.

2.Connector plug:Use JST plug to increase conductive reliability;

3.Data communications management: Use TI - SMBus software management chip, SMBus communication data transmission, accurate temperature control precision, so as to eliminate potential safety problems.

4.Battery management: Use imported TI protection chip with good stability, high precision monitoring, precision control, ESD protection, temperature protection function, so as to minimize potential security risks.

5.The battery has good safety, nice discharge performance and long cycle life.

6.The battery has long cycle life, which accord with low carbon, energy saving, environmental protection value concept;
