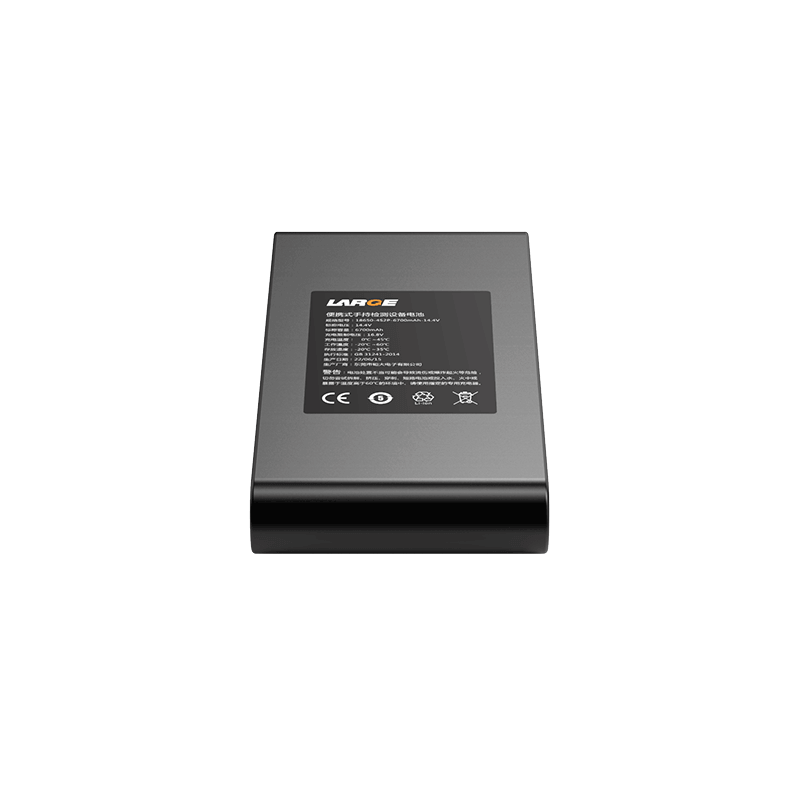

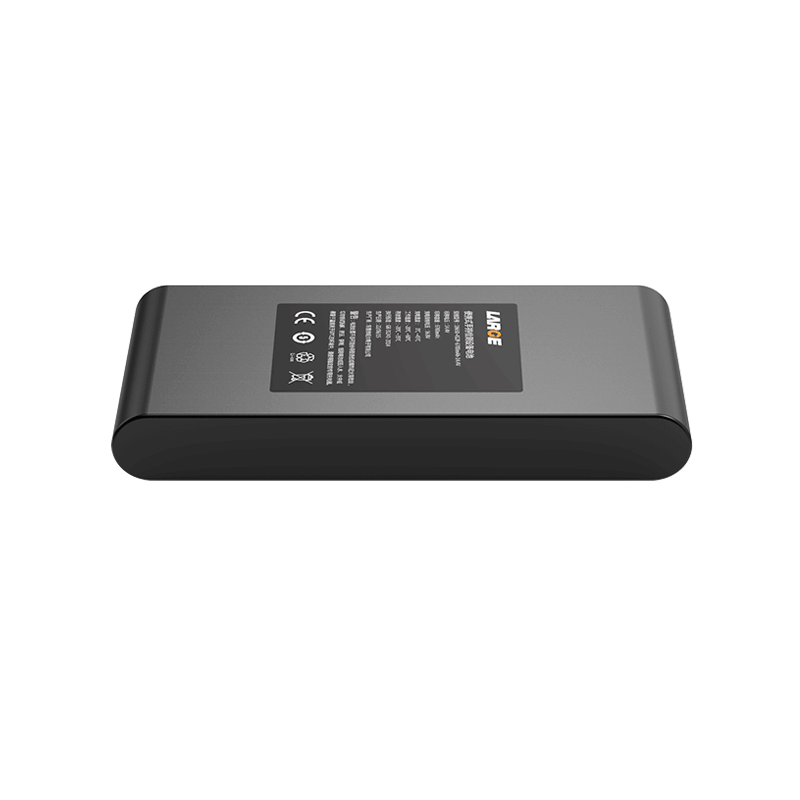

18650 14.4V 6700mAh Lithium-ion Battery for Portable Handheld Testing Equipment

Customization | Free Battery Solution

Product Detail

Product number: 08DQ0015-03

Cell model: 18650-3350mAh-3.6V

Battery specification: 18650-4S2P-6700mAh-14.4V

Product dimension: 152*72*20mm

Nominal voltage: 14.4V

Nominal capacity: 6700mAh

Charging voltage: 16.8V

Charging current: ≤4.0A

Discharge current: ≤10A

Discharge cut-off voltage: 11.2V

Finished internal resistance: ≤180mΩ

Battery weight: 400g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 35℃

Battery case: blue PVC heat shrinkable film

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over temperature protection, over current protection,ESD protection and so on

Application: Detection equipment, portable equipment, portable handheld equipment

Product Features

1. Blue PVC heat shrinkable film package is simple, reliable and easy to install;

2.Connector plug terminal: Use gilded XT30 output way, in order to increase conductive reliability;

3.Data communications management: Use TI - SMBus software management chip with SMBus communication data transmission, accurate temperature control precision, so as to eliminate potential safety problems.

4.The battery has good safety, nice discharge performance and long cycle life.

5.The battery has long cycle life, which accords with low carbon, energy saving, environmental protection value concept;
