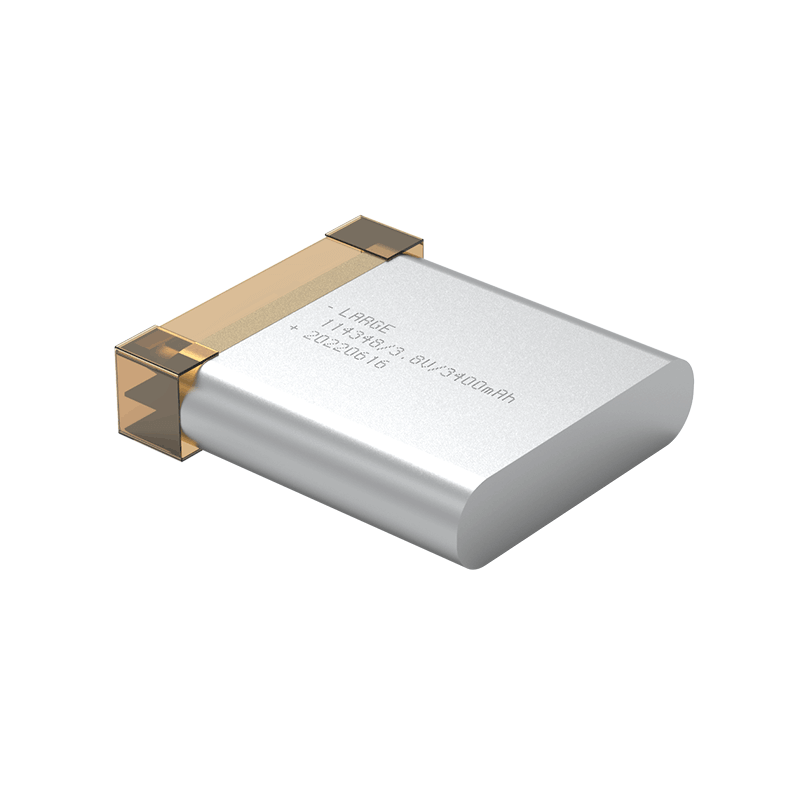

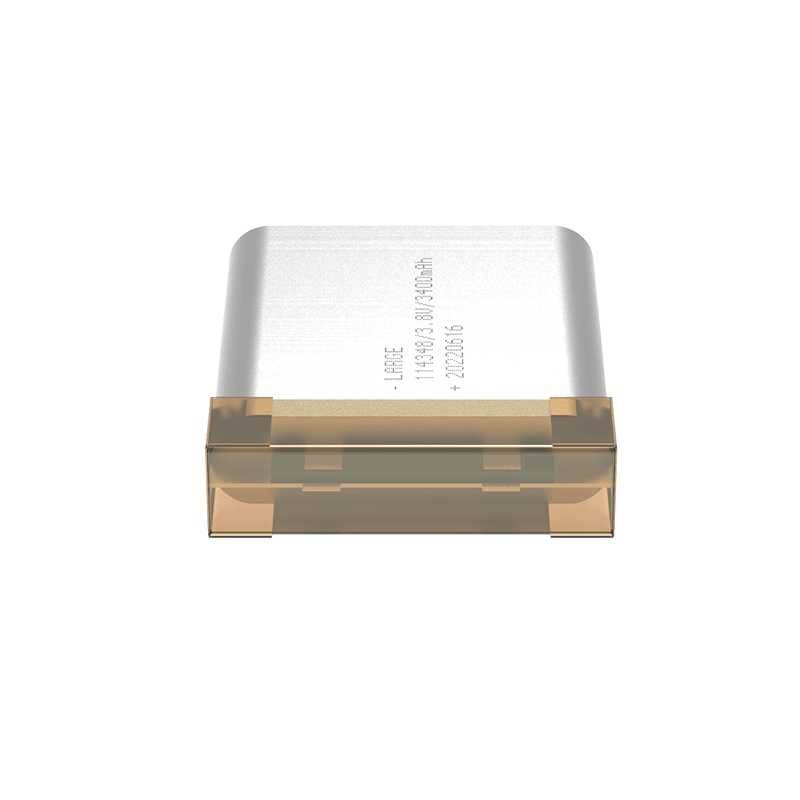

Custom Lithium ion Battery Pack
Product number: 04BQ118-31
Cell model: 114348-3400mAh-3.8V
Battery specification: 114348-1S1P-3400mAh-3.8V
Product size: 50*43.5*12mm
Nominal voltage: 3.8V
Nominal capacity: 3400mAh
Finished internal resistance: ≤180mΩ
Charging voltage: 4.35V
Charging current: ≤1.6A
Discharge current: ≤1.6A
Discharge cut-off voltage: 3.0V
Battery weight: 50g
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 ~ 35℃
Battery package: blue PVC heat shrinkable film
Output mode: Archie special connector
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection,ESD protection and so on
Application: Multifunctional camera lighting device, portable lighting device, mobile lighting device
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
