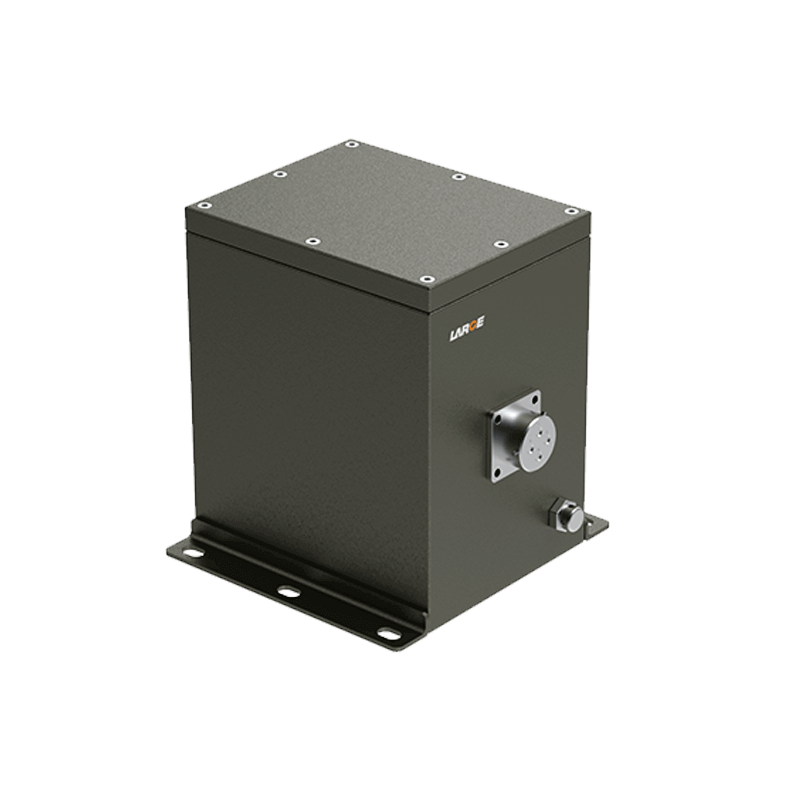

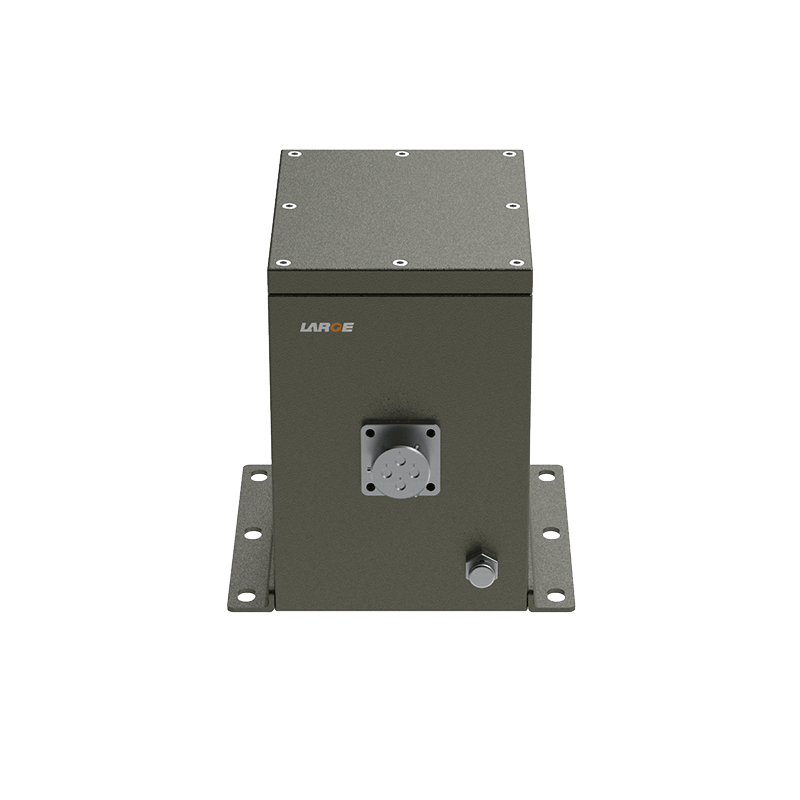

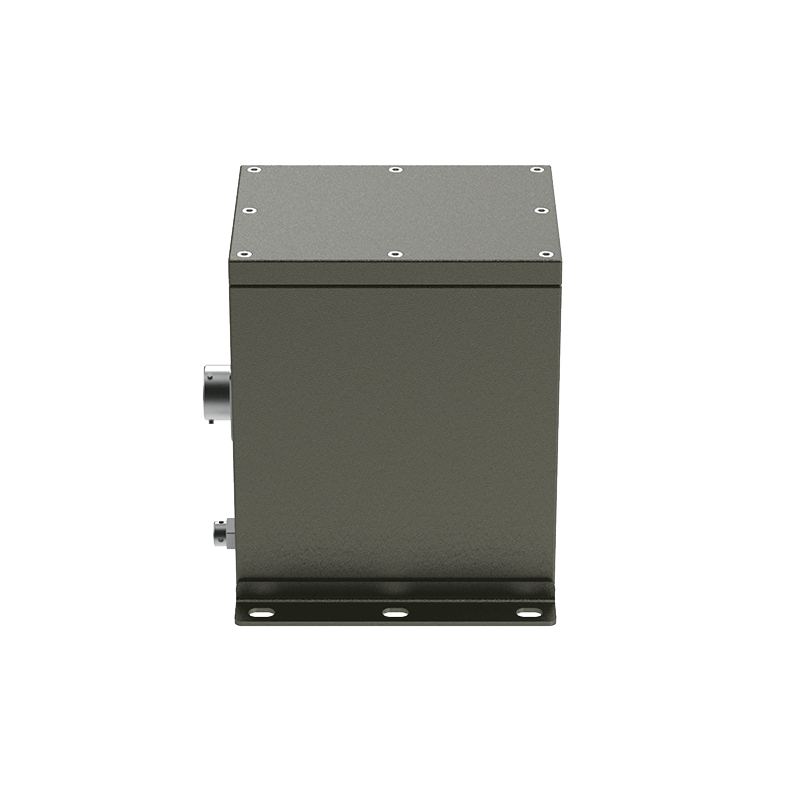

18650 14.4V 19.8Ah Lithium-ion Battery Pack

Customization | Free Battery Solution

Product Detail

Product number: 36AQ363-05

Cell model: 18650-3350mAh-3.6V

Battery specification: 18650-4S6P-19.8Ah-14.4V

Product size: L:120mm*W:131mm*H:140mm

Nominal voltage: 14.4V

Rated capacity: 19.8Ah

Charging voltage: 16.8V

Charging current: 5A

Discharge current: 5A

Discharge cut-off voltage: 11V

Finished internal resistance: ≤200mΩ

Battery weight: ≤2.6Kg

Charging temperature: 0 ~ 45℃

Discharge temperature: -40 ~ 65℃

Storage temperature: -20~+45℃ (less than 1 month) -20~ 35℃(less than 3 months); -20~+25℃ (less than 6 months)

Battery package: metal case

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, over temperature protection, etc.


Product Features

1.Metal shell is simple and reliable, and is easy to install.

2. RS485 communication protocol

3.Output: Use national standard UL wire output way, in order to increase conductive reliability;

4.Battery protection management: imported famous brand protection chip, has high stability, high precision monitoring, precision control, eliminate safety hidden trouble.

5.The battery has good safety, nice discharge performance and long cycle life.

6.The battery has long cycle life,which accord with low carbon, energy saving, environmental protection value concept;
