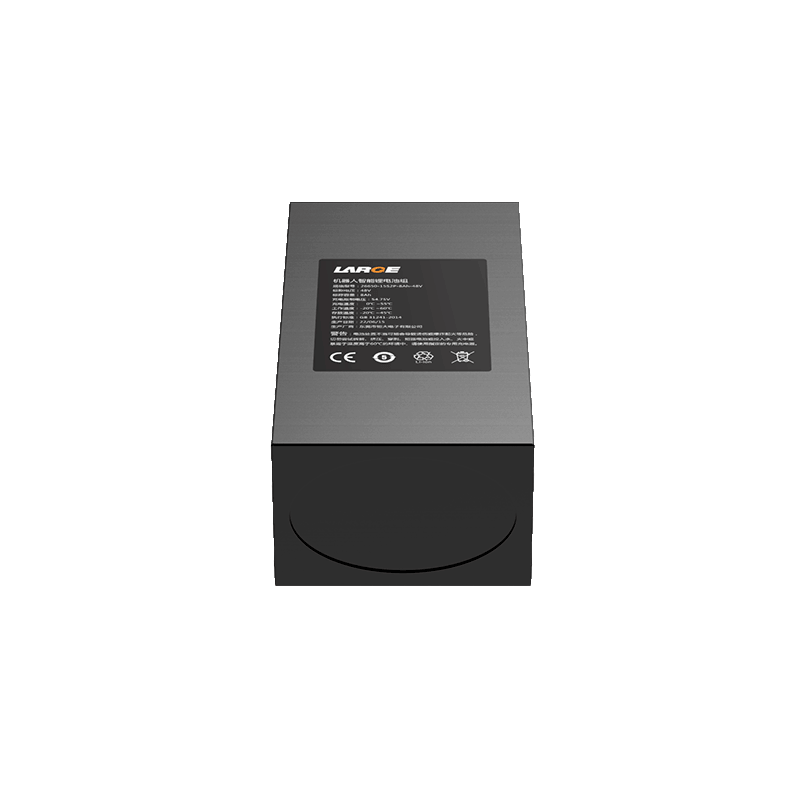

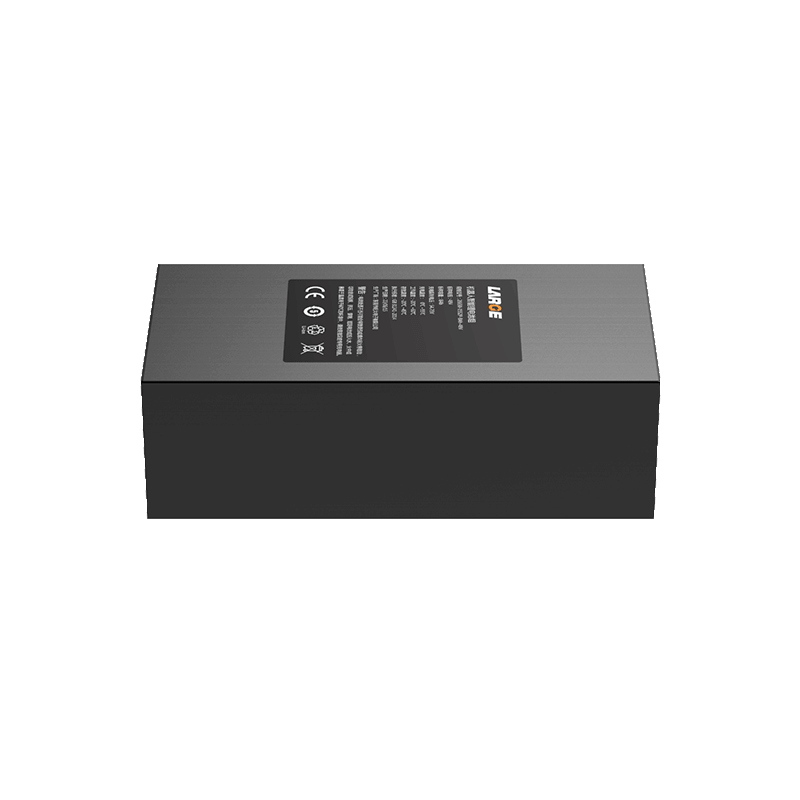

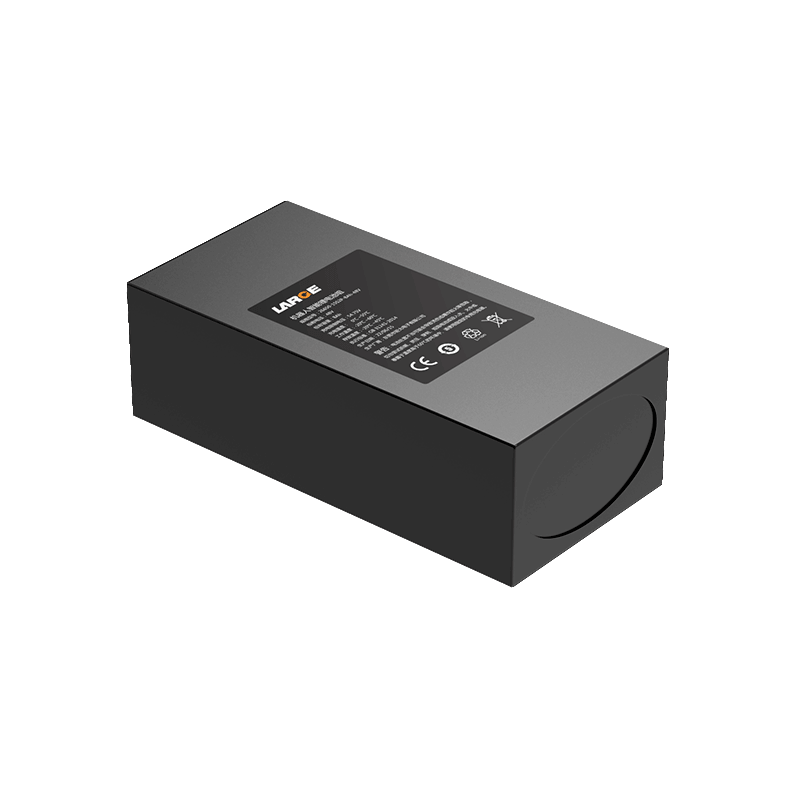

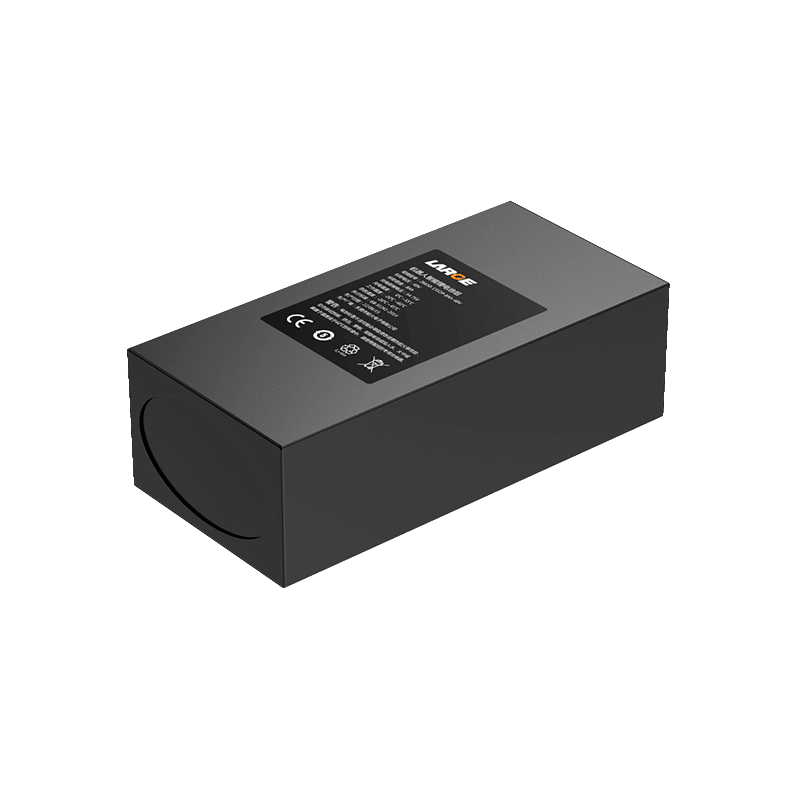

Custom Lithium ion Battery Pack
Product number: 40AQ018-01
Cell model: 26650-4000mAh-3.2V
Battery specification: 26650-15S2P-8Ah-48V
Product size: (length)239mm*(width)114mm*(height)76mm
Nominal voltage: 48V
Rated capacity: 7.8Ah
Charging voltage: 54.75V
Charging current: 3.5A
Discharge current: 15.2A
Discharge cut-off voltage: 30V
Finished internal resistance: ≤200mΩ
Battery weight: ≤3.0Kg
Charging temperature: 0 ~ 55℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20~+45℃ (less than 1 month) -20~ 35℃(less than 3 months); -20~+25℃ (less than 6 months)
Battery package: PVC package
Communication protocol: RS485 communication
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, over temperature protection, etc.
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
