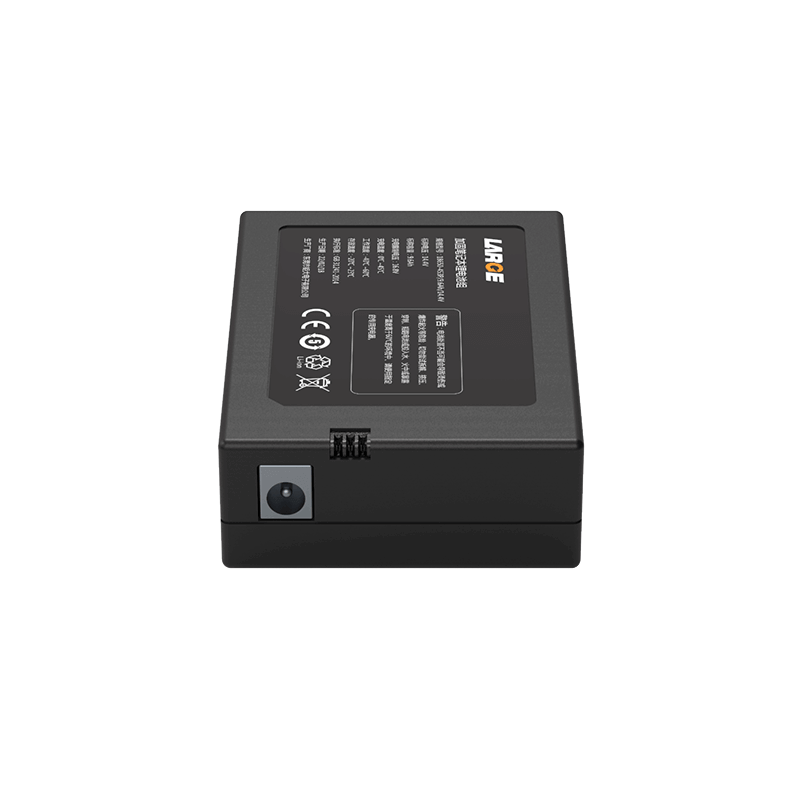

Custom Lithium ion Battery Pack
Project number: 37DZ040-01
Cell model: 18650/3.6V/3.35Ah
Battery specification: 18650-3S1P/10.8V/3.3Ah
Nominal voltage: 10.8V
Nominal capacity: 3.3Ah
Charging voltage: 12.6V
Charging current: ≤1.65A
Discharge current: 1.65A
Instant discharge current: 5-12A
Discharge cut-off voltage: 7.5V
Finished internal resistance: ≤180mΩ
Battery weight: 200g
Product size: 25*60*84mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 ~ 45℃
Battery case: Plastic case
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection and so on
Application: Remote control device, child seat
