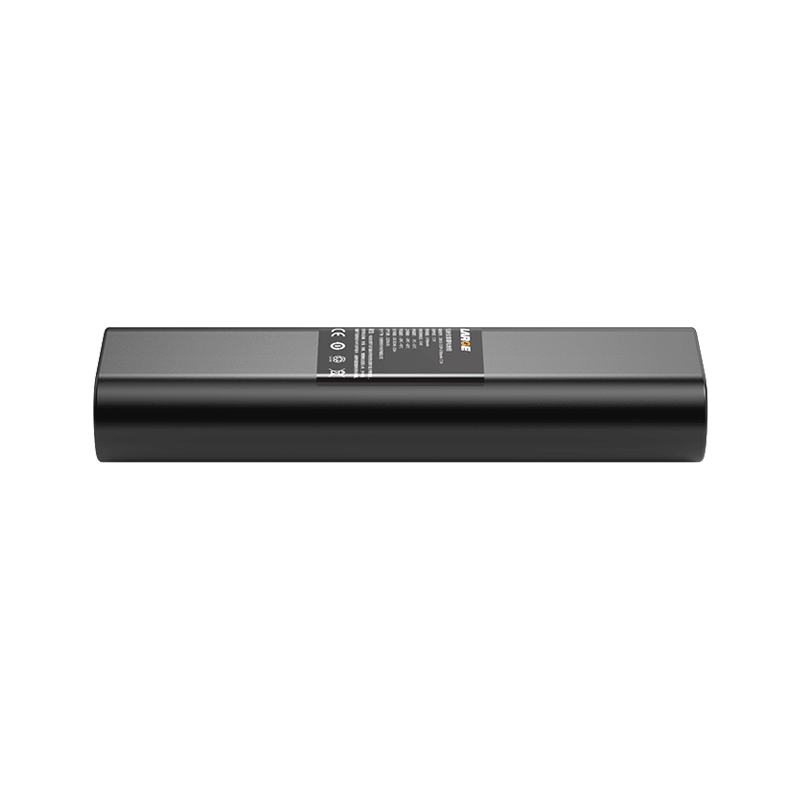

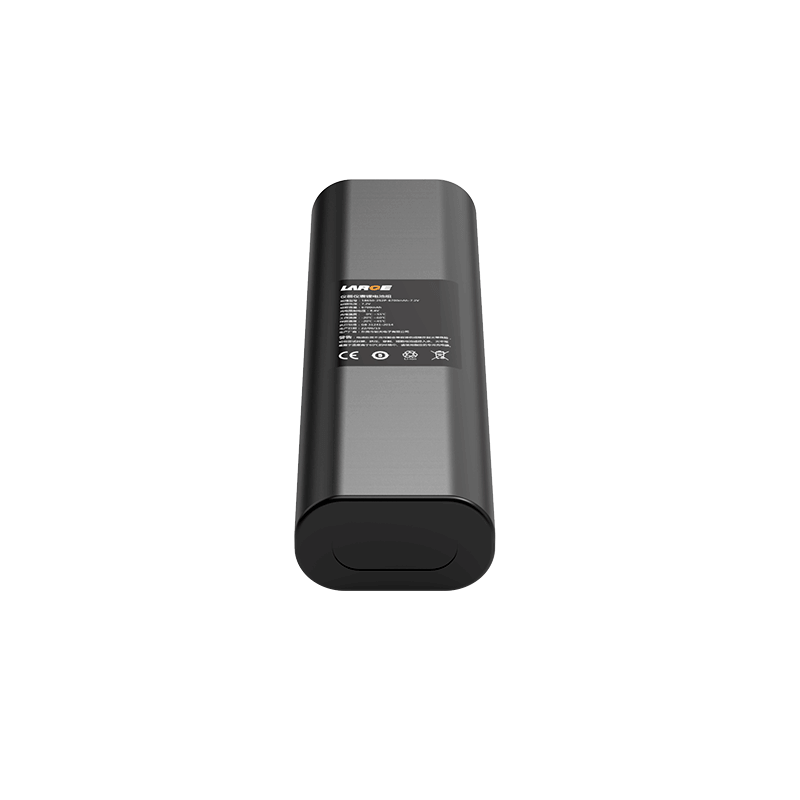

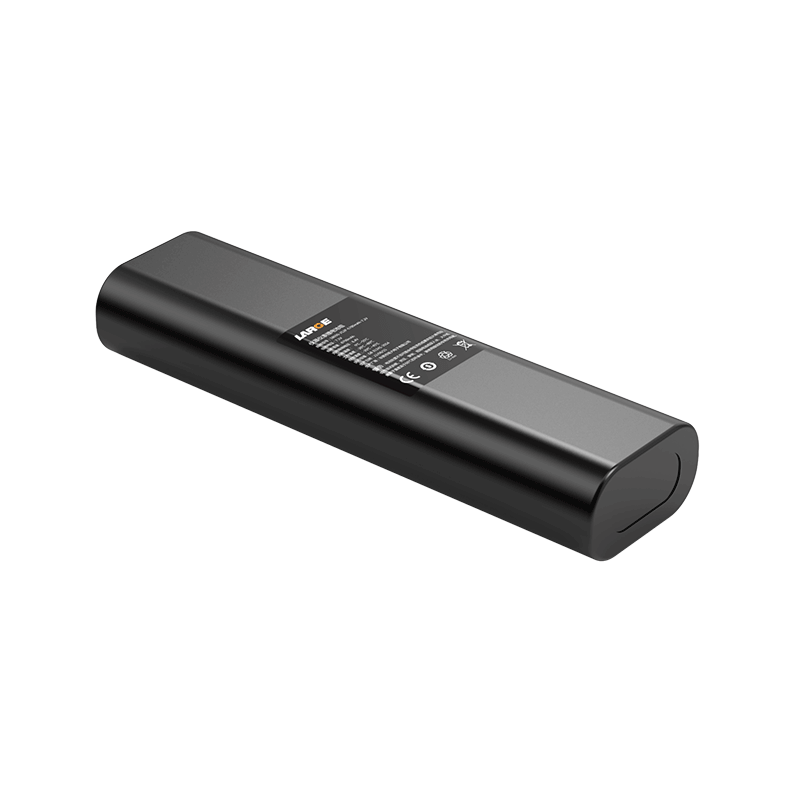

Product number: 33DZ045-01
Cell model: 18650/3.6V/3350mAh
Battery specification: 18650-2S2P-6700mAh-7.2V
Nominal voltage: 7.2V
Nominal capacity: 6700mAh
Charging voltage: 8.4V
Charging current: ≤3000mA
Discharge current: 3A
Instant discharge current: 3-5A
Discharge cut-off voltage: 6V
Finished internal resistance: ≤250mΩ
Battery weight: 100G
Product size: 21*37.5*132mm (L*W*H)
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 ~ 45℃
Battery case: PVC
Communication mode: SMBUS communication
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, electric meter and so on
Application: Instrumentation
