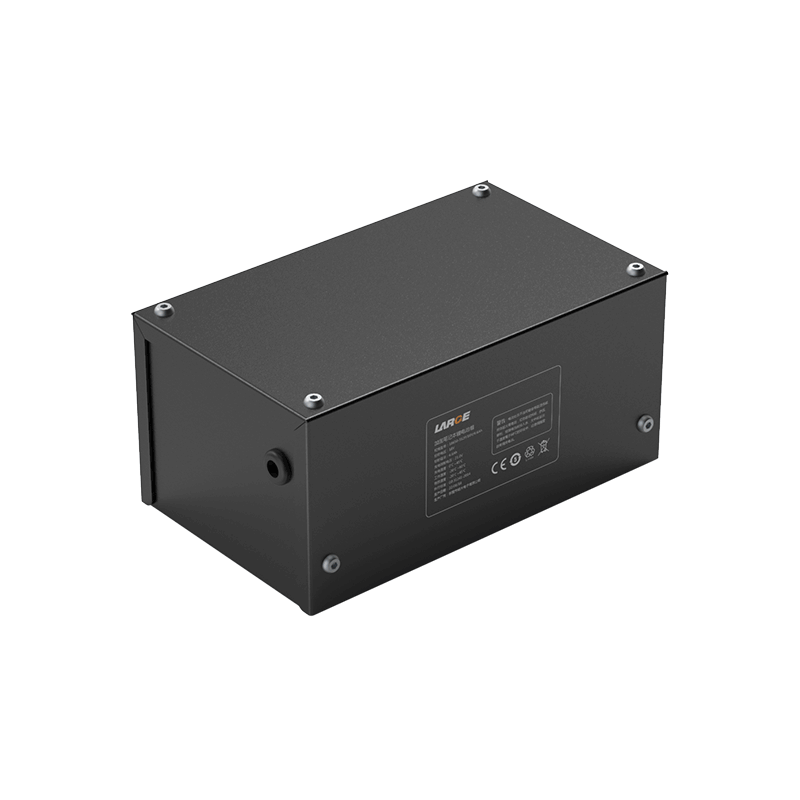

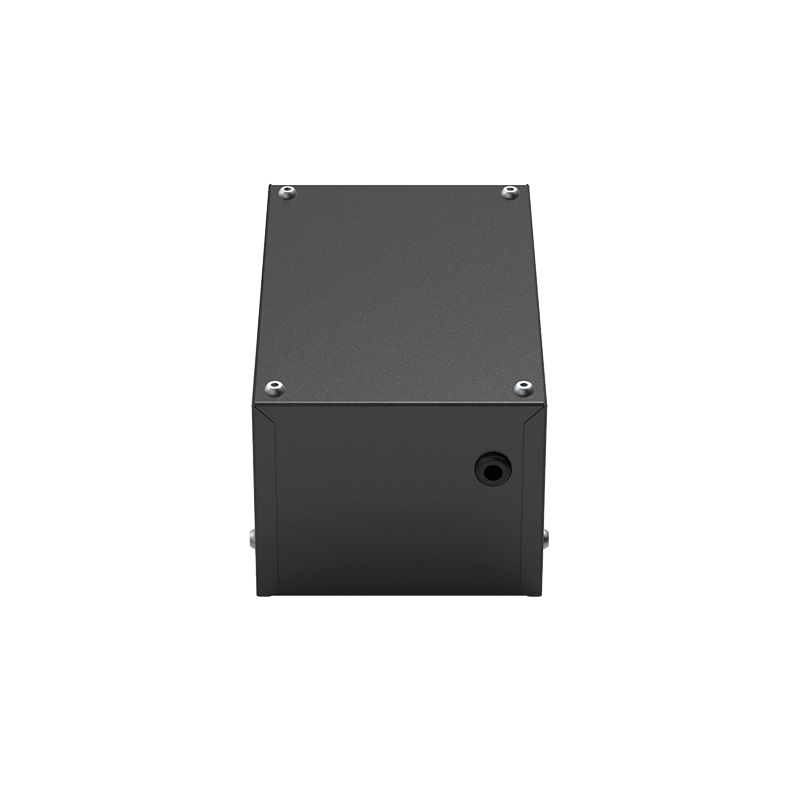

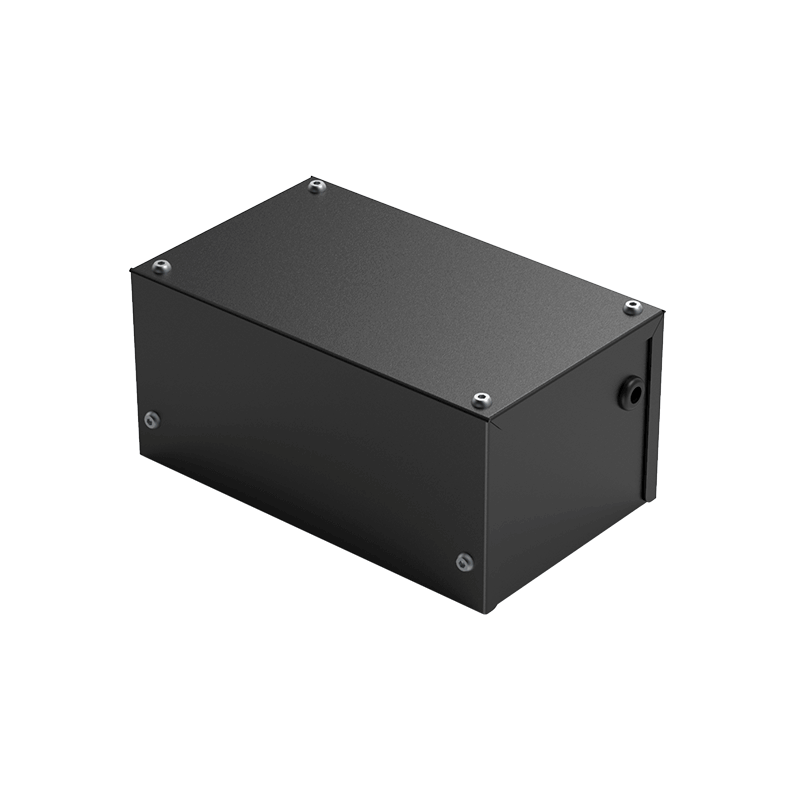

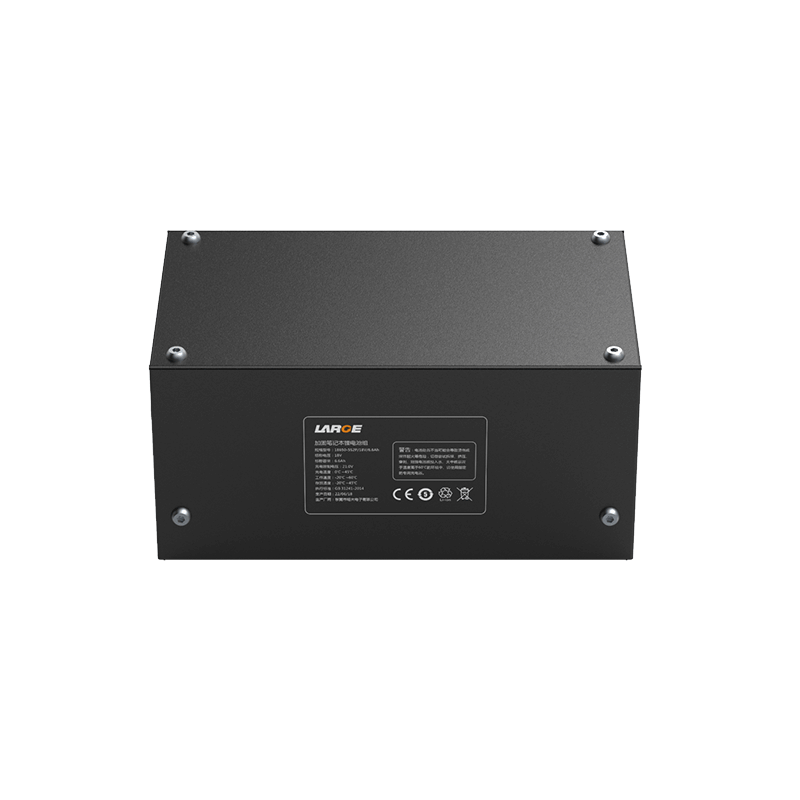

Custom Lithium ion Battery Pack
Product number: 33DZ014-02
Cell model: 18650/3.6V/3.35Ah
Battery specification: 18650-5S2P/18V/6.6Ah
Nominal voltage: 18V
Nominal capacity: 6.6Ah
Charging voltage: 21.0V
Charging current: ≤3.0A
Discharge current: ≤6A
Instant discharge current: 25-45A
Discharge cut-off voltage: 15V
Finished internal resistance: ≤200mΩ
Battery weight: 650g
Product size: 130*78*62 mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 ~ 45℃
Temperature protection: 65℃±5℃
Communication: 485 communication
Battery case: sheet metal cover
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, temperature protection, anti-reverse connection protection and so on
Applications: Handheld devices, medical devices
