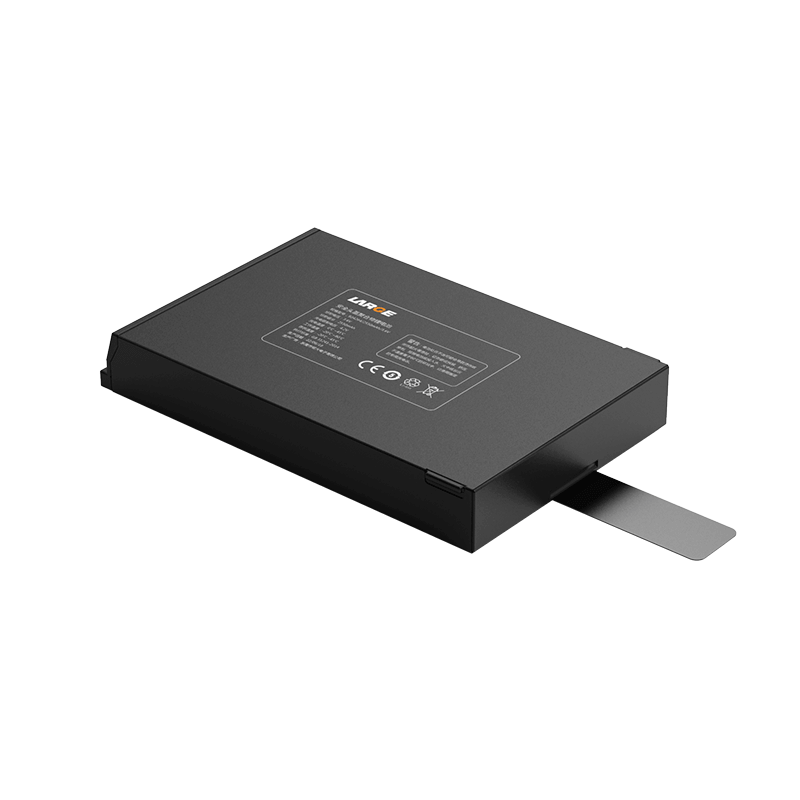

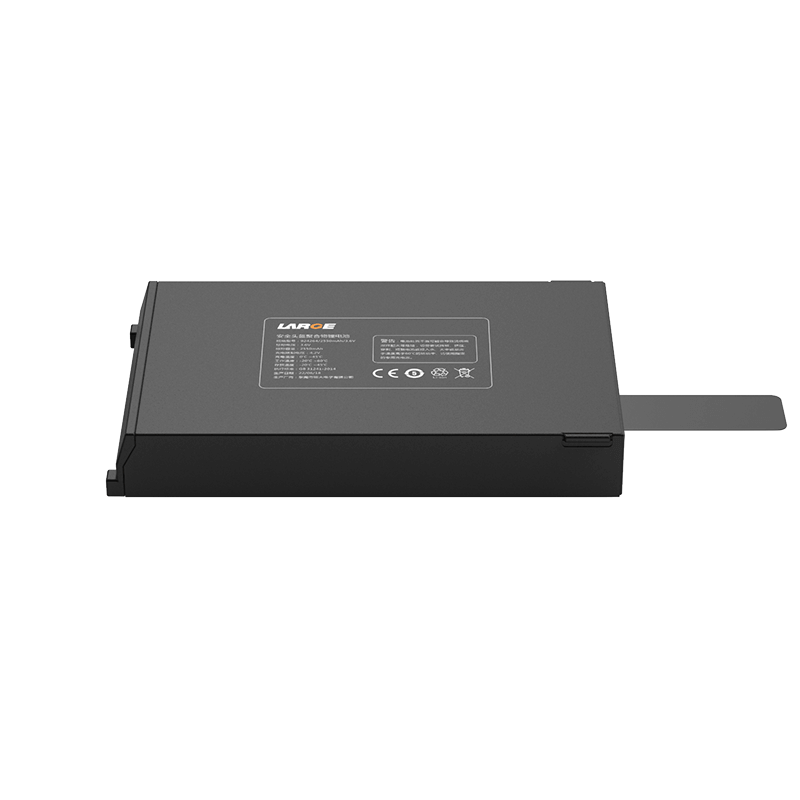

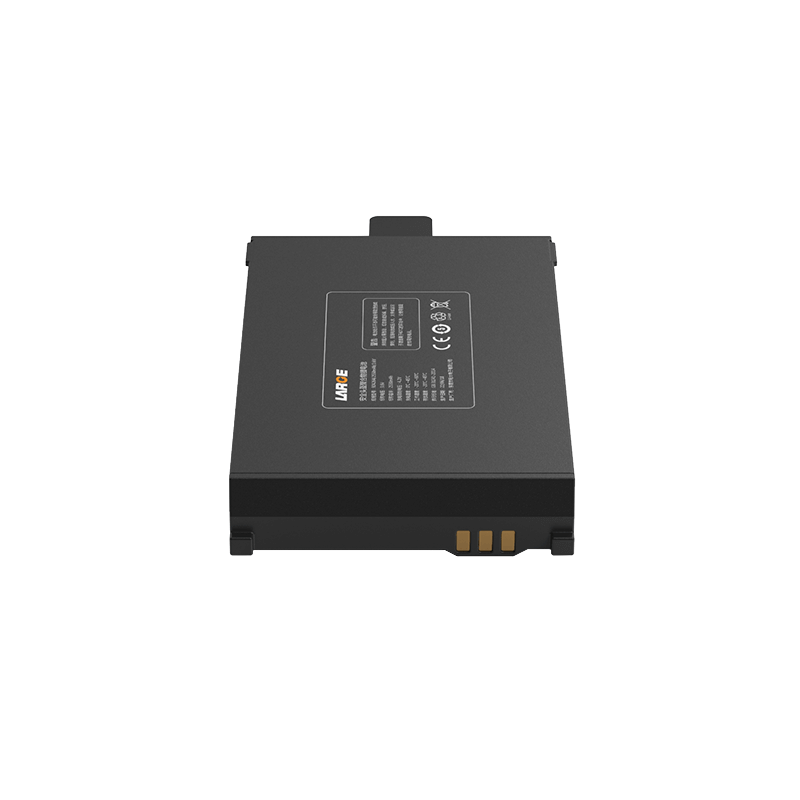

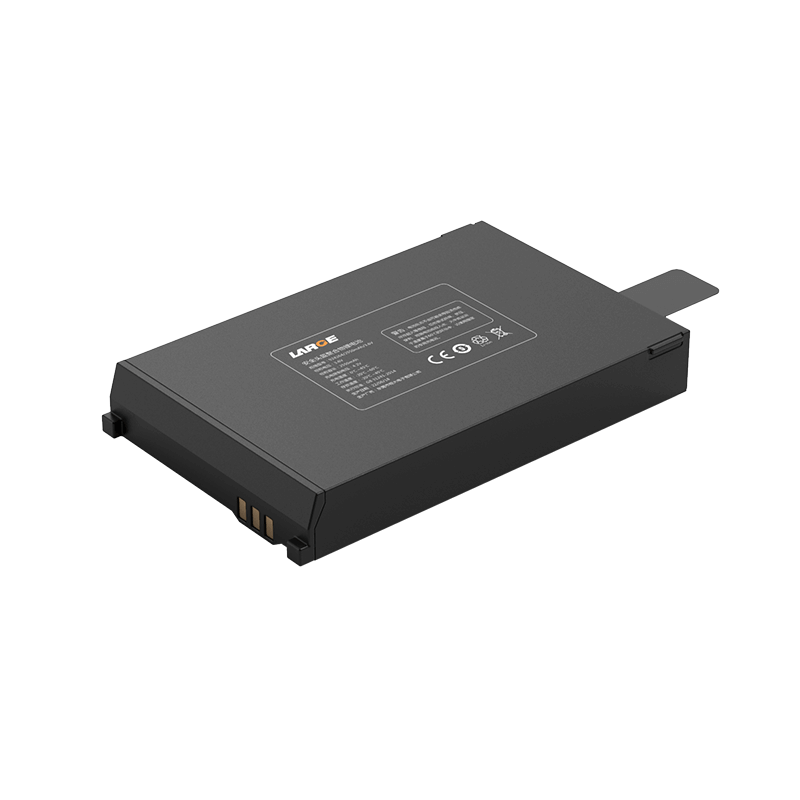

Custom Lithium ion Battery Pack
Project number: 33DZ043-01
Cell model: 924264/2550mAh/3.6V
Battery specification: 924264-1S1P/2550mAh/3.6V
Nominal voltage: 3.6V
Nominal capacity: 2550mAh
Charging voltage: 4.2V
Charging current: ≤2A
Discharge current: 1.25A
Instant discharge current: 3-6A
Discharge cut-off voltage: 2.4V
Finished internal resistance: ≤400mΩ
Battery weight: 56g
Product size: 11.3*46.2*71.57mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 ~ 45℃
Battery case: Plastic case
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection,NTC and so on
Application: Safety helmet
Product Features
1.Low self consumption;
2.NTC test temperature
3.The battery has good safety, nice low temperature performance and long cycle life.
4.The battery has long cycle life, which accord with low carbon, energy saving, environmental protection value concept;
5.Explosion-proof design
