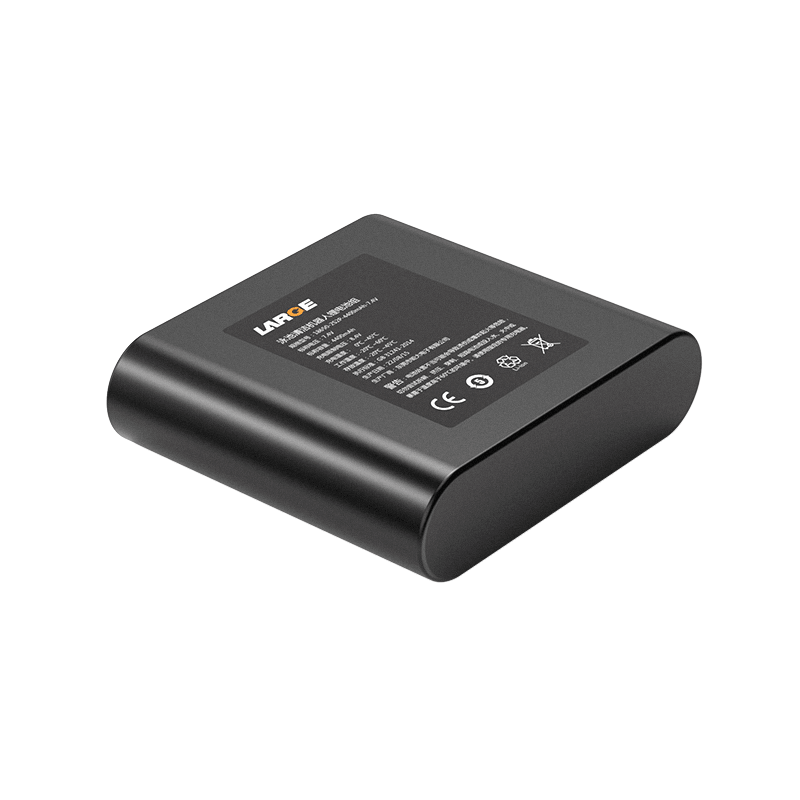

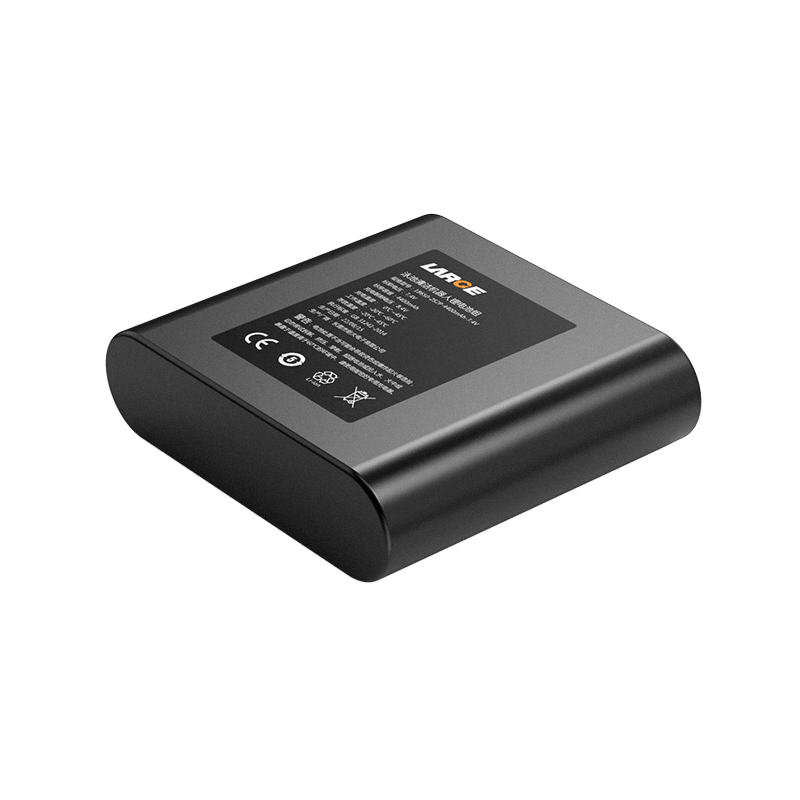

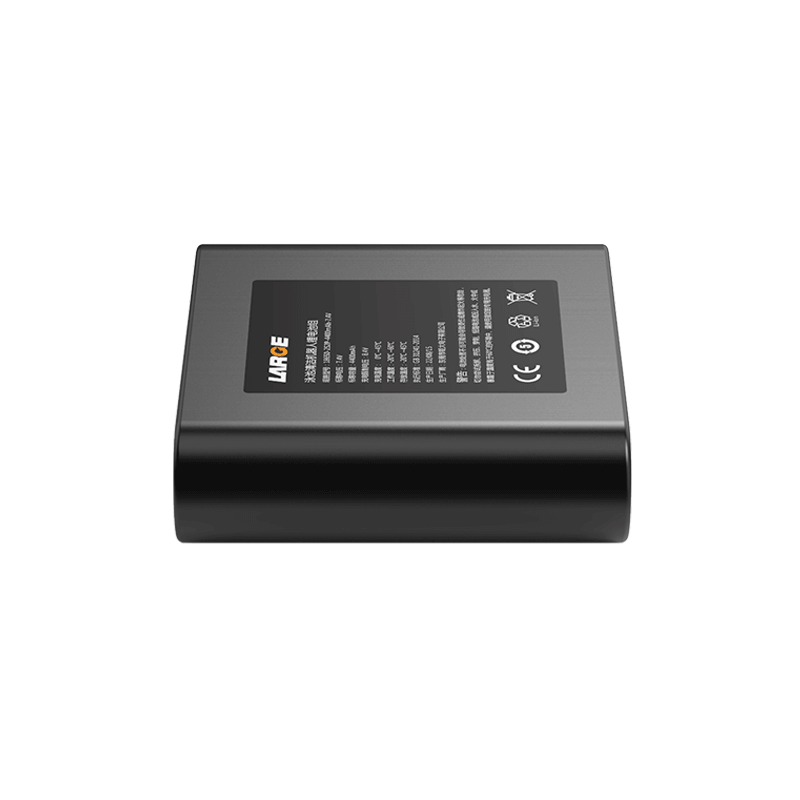

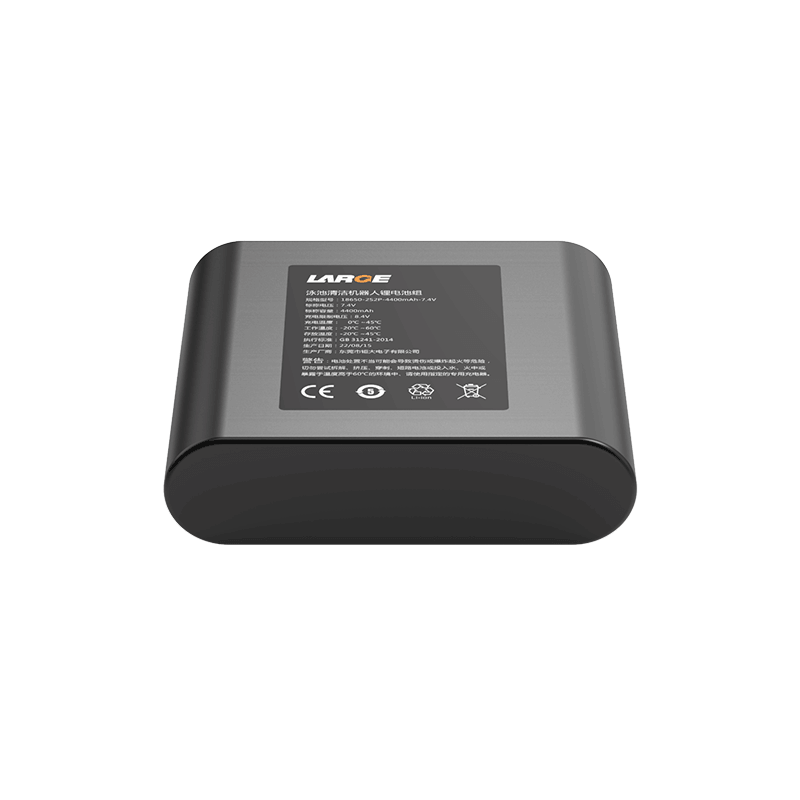

Custom Lithium ion Battery Pack
Product number: 01DQ0131-02
Cell model: 18650-2200mAh-3.7V
Battery specification: 18650-2S2P-4400mAh-7.4V
Nominal voltage: 7.4V
Nominal capacity: 4400MAh
Charging voltage: 8.4V
Charging current: ≤2.2A
Discharge current: ≤4.0A
Discharge cut-off voltage :6.0V
Finished internal resistance: ≤150mΩ
Battery weight: 210g
Product size: 77*71*19.5mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 ~ 35℃
Battery package: Blue PVC package
Output mode: JST plug
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over temperature protection, over current protection,ESD protection and so on
Application: Sweeping robot, cleaning robot, mapping robot
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
