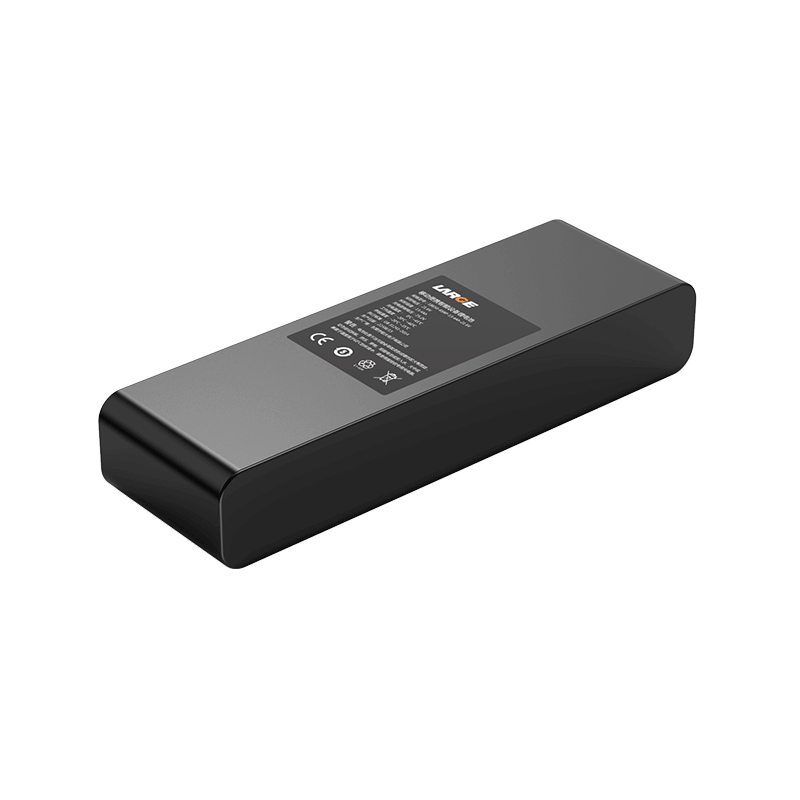

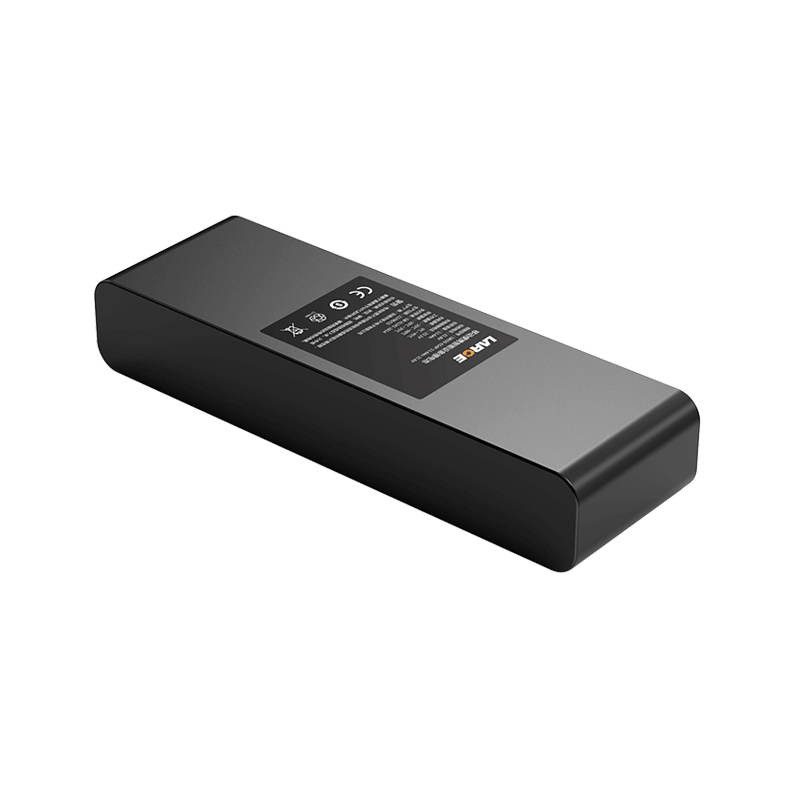

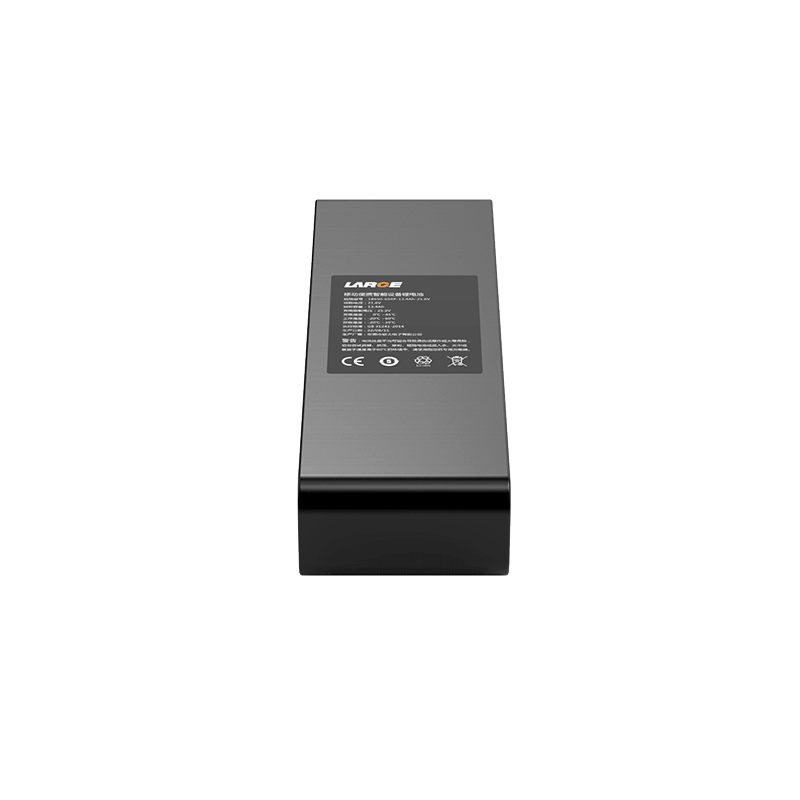

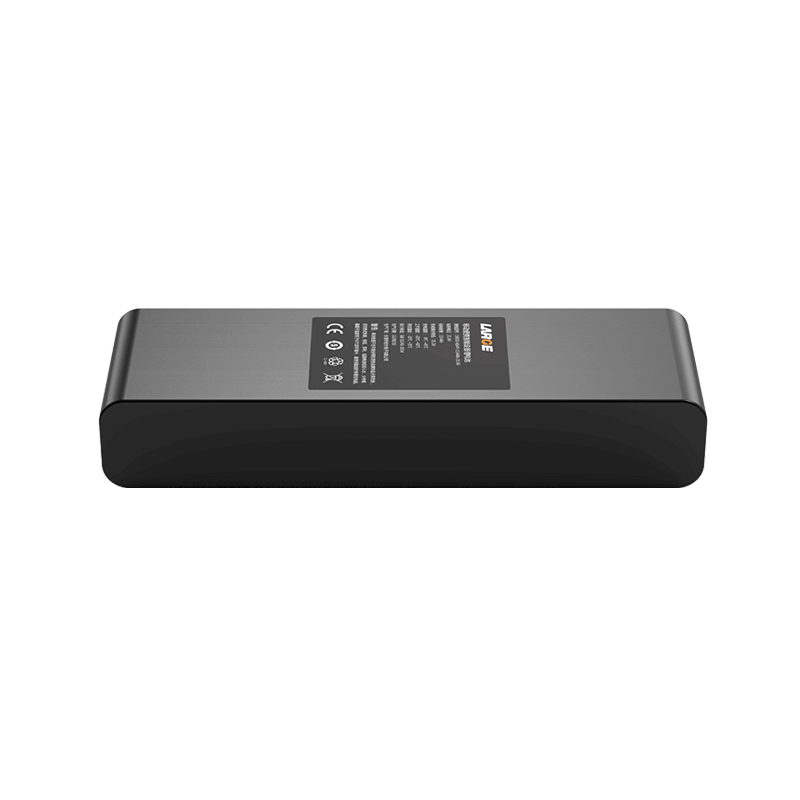

Custom Lithium ion Battery Pack
Product number: 01WQ0097-01
Cell model: 18650-3350mAh-3.6V
Battery specification: 18650-6S4P-13.4Ah-21.6V
Product size: 230*71*38mm (Max)
Nominal voltage: 21.6V
Nominal capacity: 13.4Ah
Finished internal resistance: ≤120mΩ
Charging voltage: 25.2V
Charging current: ≤6A
Discharge current: ≤15A
Discharge cut-off voltage: 16.8V
Battery weight: 1300g
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 ~ 35℃
Battery package: blue PVC heat shrinkable film
Output mode: MOLEX plug
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over temperature protection, over current protection,ESD protection and so on
Application: Mobile intelligent equipment, portable equipment, intelligent testing equipment
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
