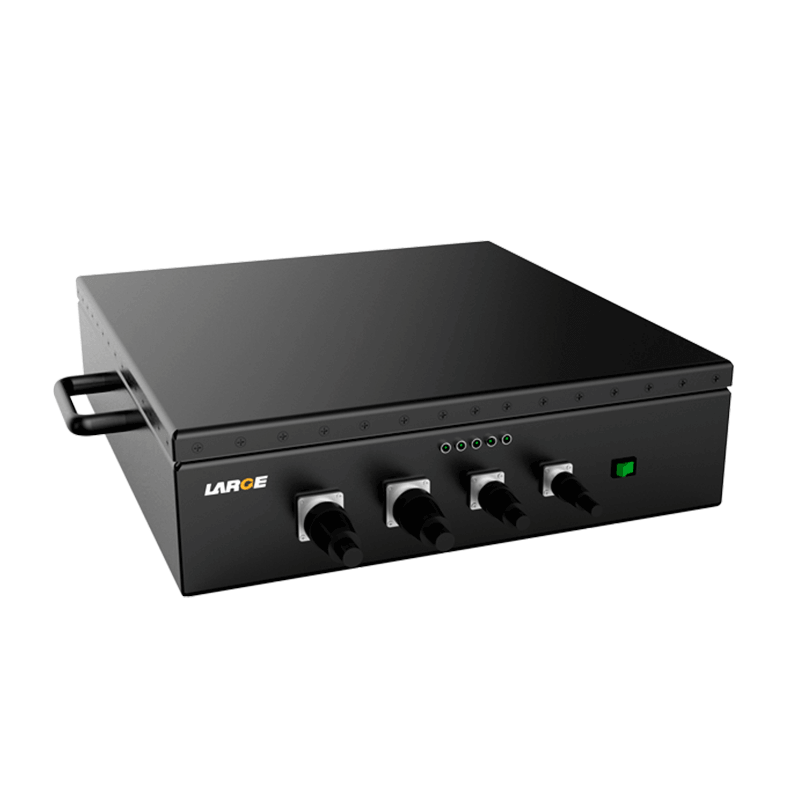

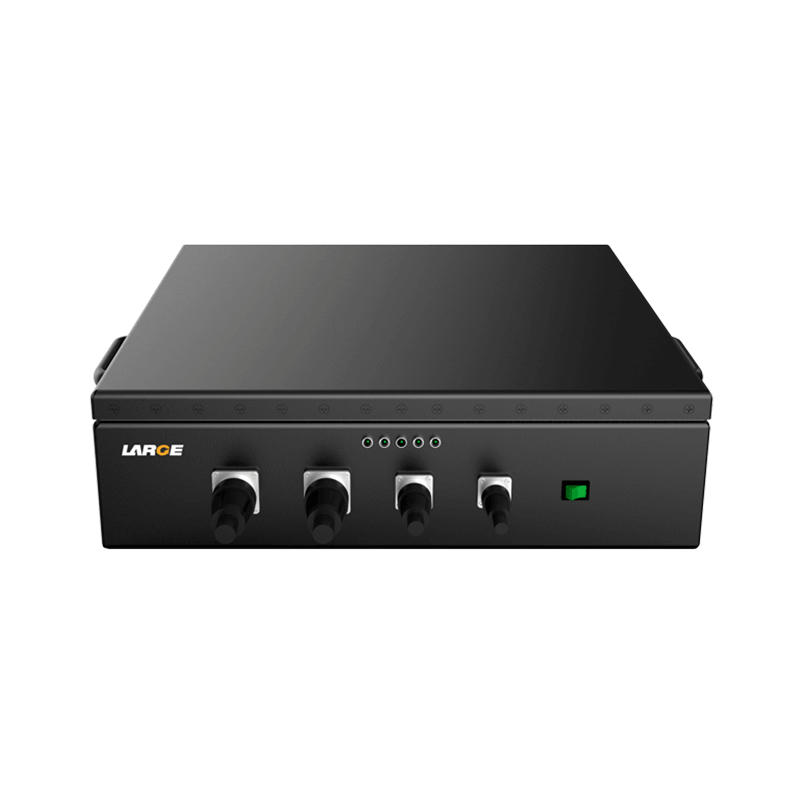

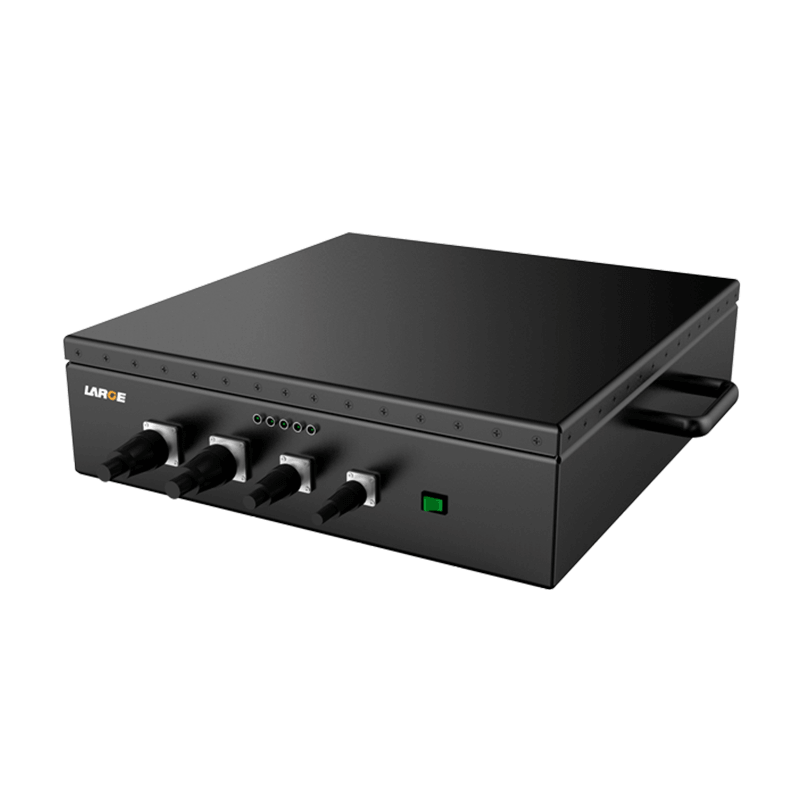

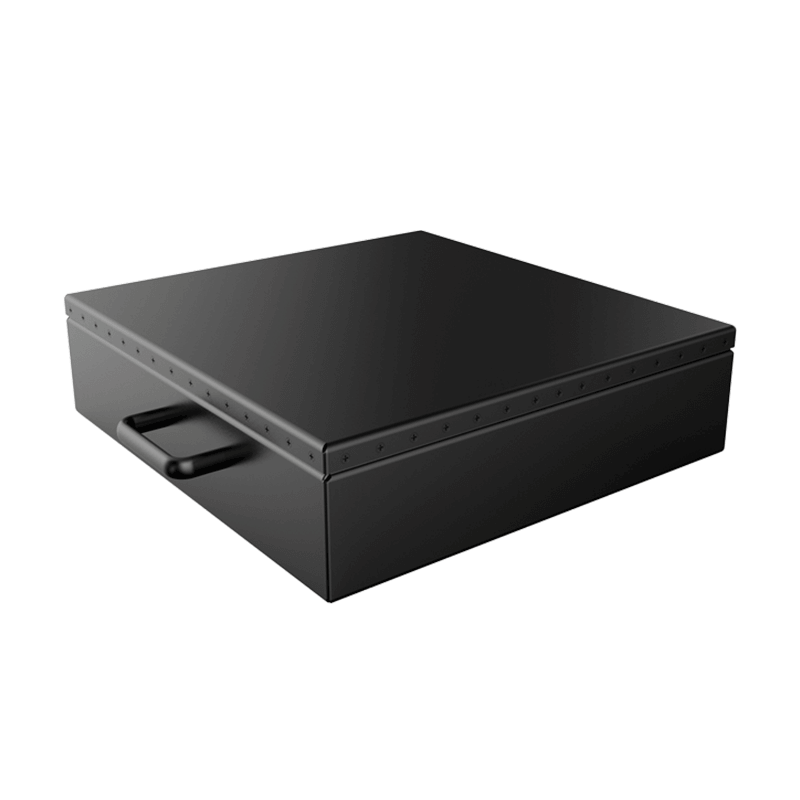

Custom Lithium ion Battery Pack
Product number: 03KQ080-01
Cell model：18650/3.7V/2500mAh
Battery specification: 18650-16S20P/59.2V/50Ah
Nominal voltage：59.2V
Nominal capacity：50Ah
Charging voltage: 67.2V
Charging current: ≤45A
Discharging current: 50A
Instant discharging current: 100A
End-off voltage: 48V
Internal resistance: ≤100mΩ
Battery weight: 34Kg
Product dimension: 460*410*100mm（Max）
Charging temperature：0～45℃
Discharging temperature: -20～60℃
Storage temperature: -20～35 ℃
Temperature protection: 70℃±5℃
Battery case: cold rolling and metal plate
Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, equilibrium, UART communication, etc.
Application field: AGV, cargo van, track car
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
