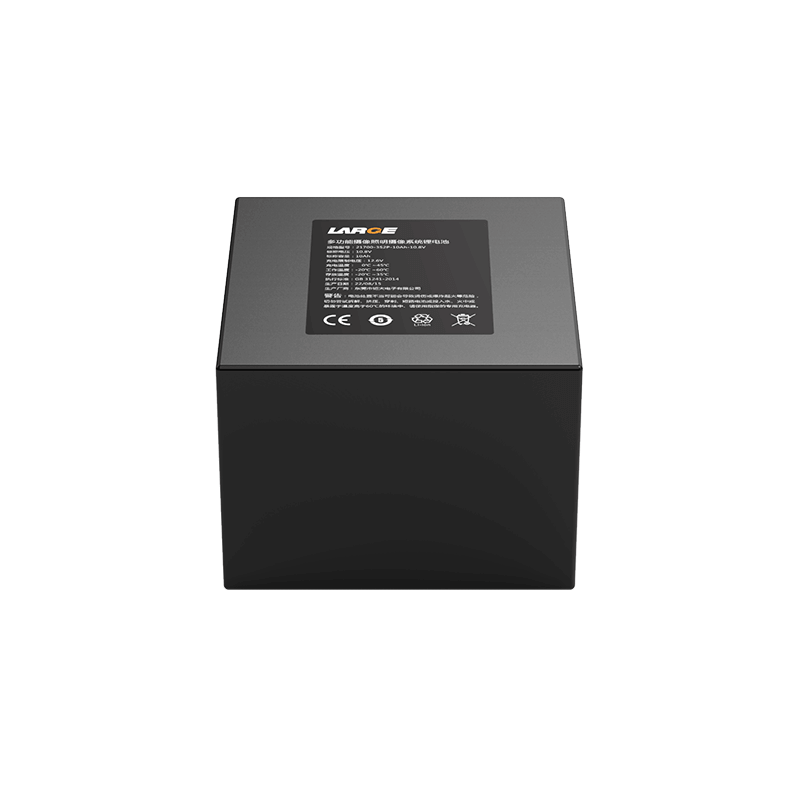

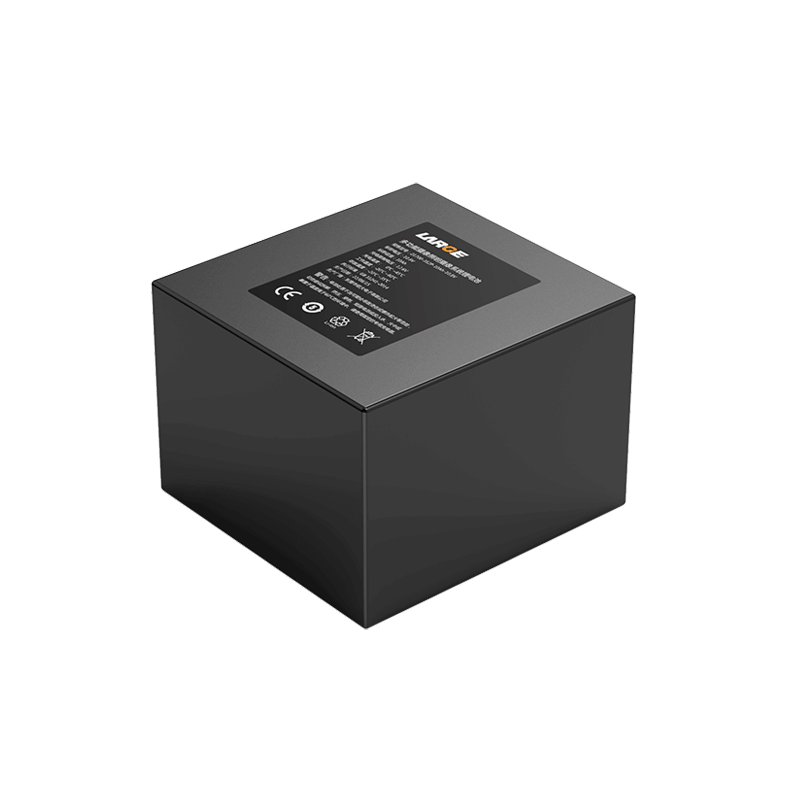

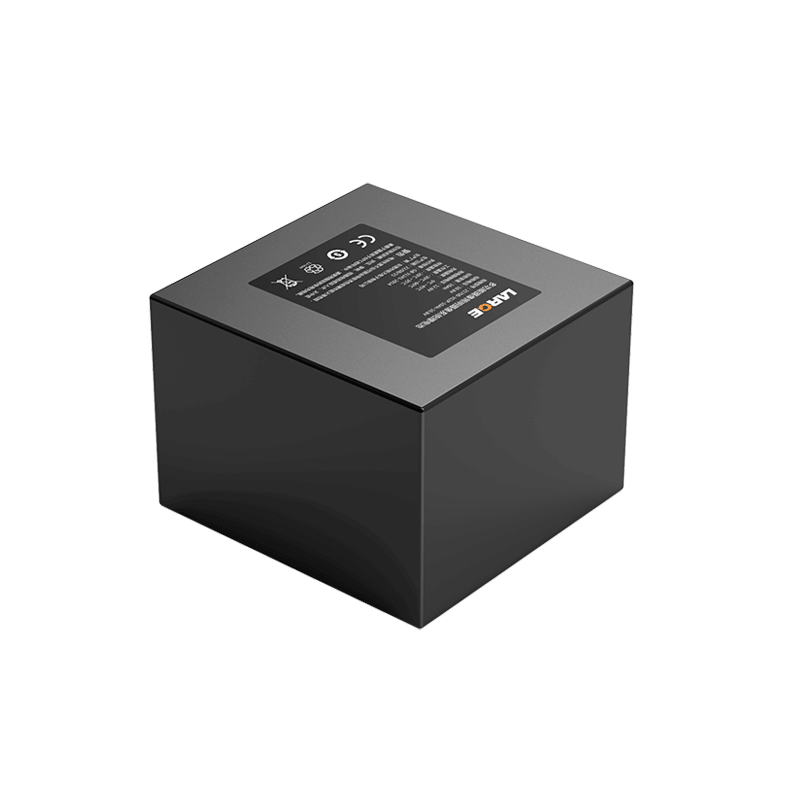

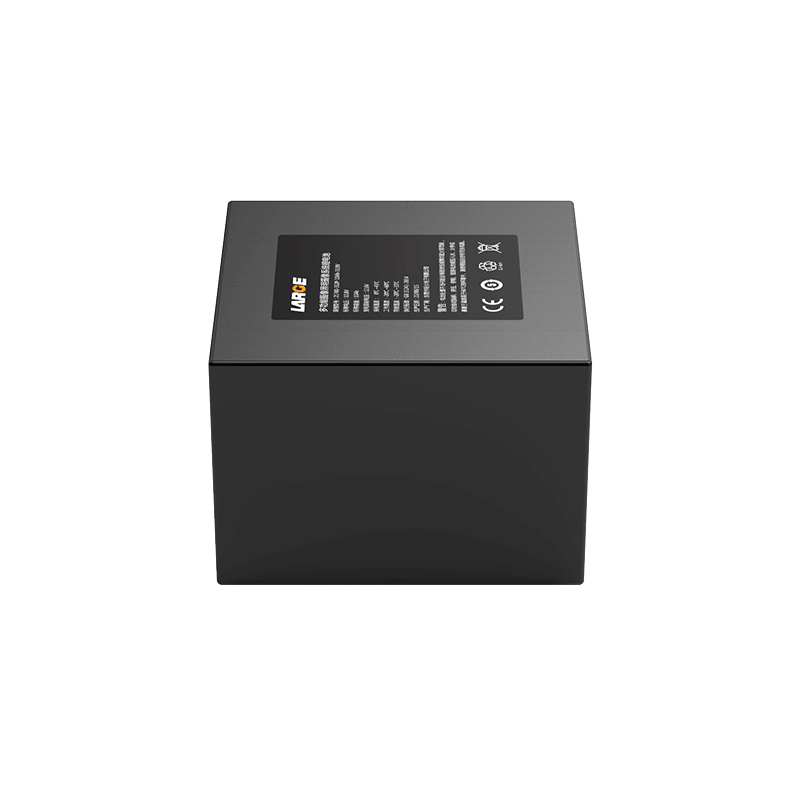

21700 11.1V 10Ah Lithium-ion Battery for Multifunctional Lighting Camera System

Customization | Free Battery Solution

Product Detail

Product number: 04BQ118-36

Cell model: 21700-5000mAh-3.6V

Battery specifications: 21700-3S2P-10Ah-10.8V

Product size: 75*53*72mm

Nominal voltage: 10.8V

Nominal capacity: 10Ah

Finished internal resistance: ≤300mΩ

Charging voltage: 12.6V

Charging current: ≤5.0A

Discharge current: ≤7.0A

Discharge cut-off voltage: 8.1V

Battery weight: 540g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 35℃

Battery package: blue PVC heat shrinkable film

Output mode: JST special connector

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over temperature protection, over current protection,ESD protection and so on

Application: Multifunctional camera lighting device, portable lighting device, mobile lighting device
