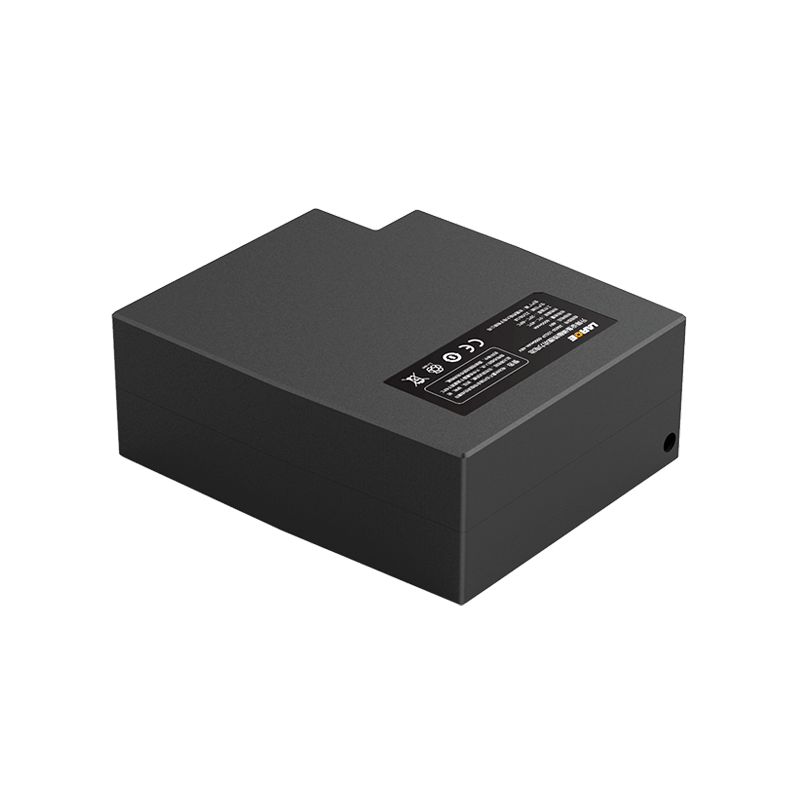

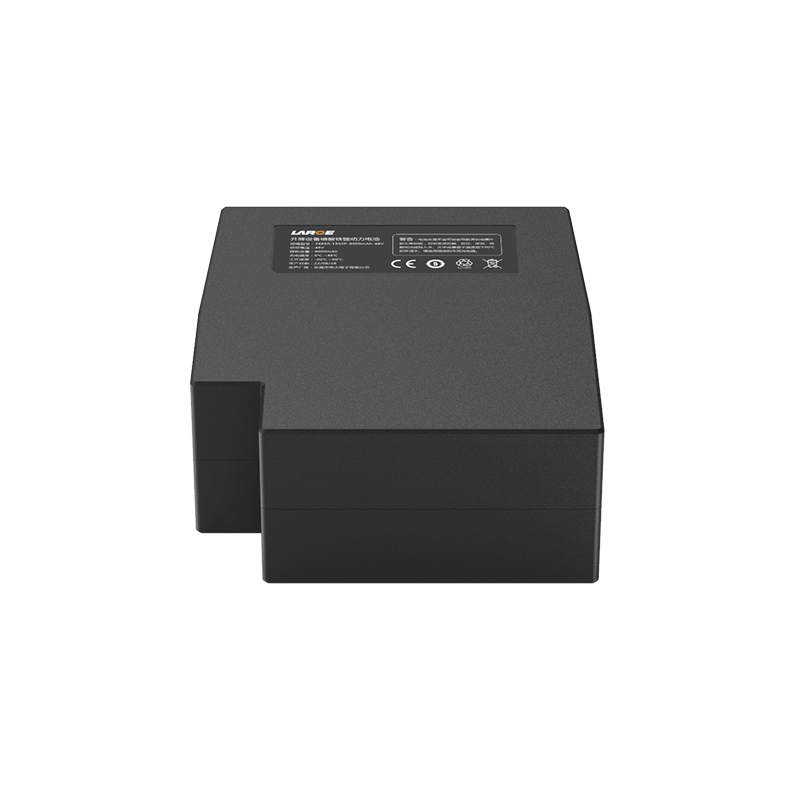

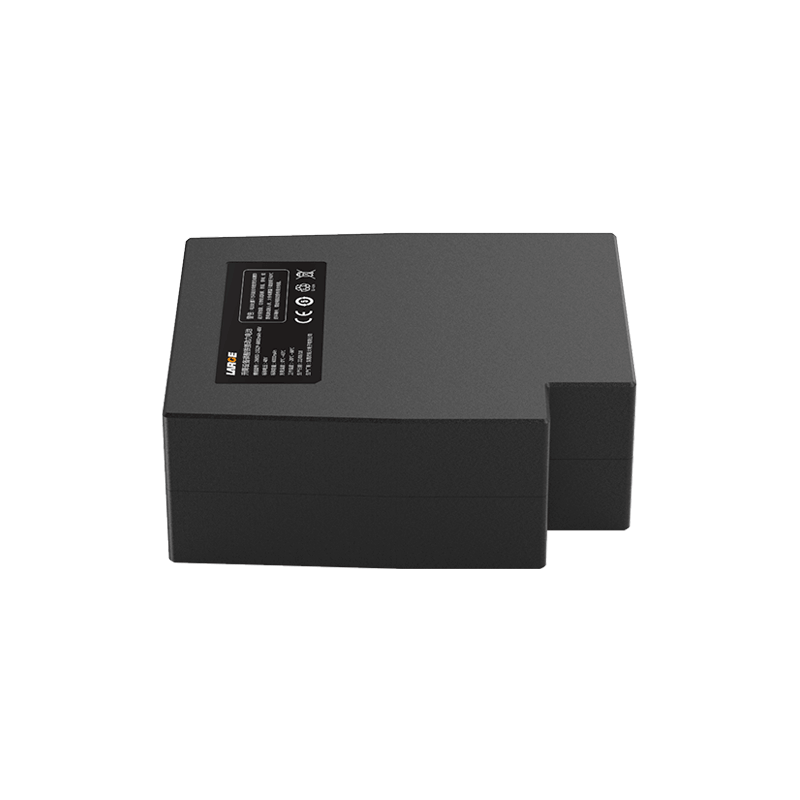

26650 48V 6000mAh Lifting Equipment Lithium Iron Phosphate Power Battery

Customization | Free Battery Solution

Product Detail

Product number: 08DQ0021-03

Cell MODEL: 26650-3000mAh-3.2V

Battery specification: 26650-15S2P-6000mAh-48V

Product size: 200*170*75mm

Nominal voltage: 48V

Nominal capacity: 6000mAh

Internal resistance of finished product: ≤250mΩ

Charging voltage: 54.7V

Charging current: ≤3A

Discharge current: ≤30A

Discharge cut-off voltage: 39V

Battery weight: 3500g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 35 ° C

Battery case: ABS+PC case

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over temperature protection, over current protection,ESD protection, etc.

Application: lifting equipment, mobile equipment, industrial control equipment

Product Features

1.ABS + PC case increases the reliability and stability of the battery;

2.The battery uses special cell stent assembly, epoxy board protection, special nickel piece connection, nice shock impact resistant performance;

3.Connector plug output: Use MOLEX plug output mode to increase conductive reliability;

4.Battery protection and control: Adopt special lithium battery protection chip with nice stability, high precision monitoring, accurate control and temperature protection to maximize the elimination of safety risks;

5.BMS product support CAN bus, physical data link layer completely follow CAN2.0 protocol B, which is optional for customer.The communication baud rate is 250Kbps

6.The battery has good safety, nice discharge performance, high ratio, and supports 5 c discharge, discharge 90% or more;

7.The battery has good safety, nice discharge performance and long cycle life.

8.The battery pack has high cycle life, in line with low carbon, energy saving, environmental protection value concept;
