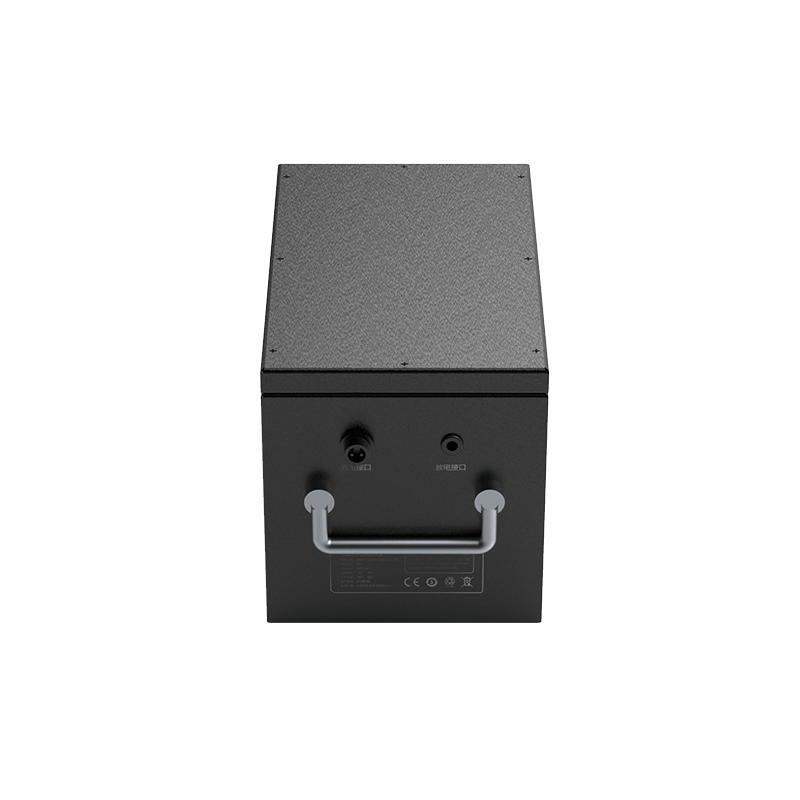

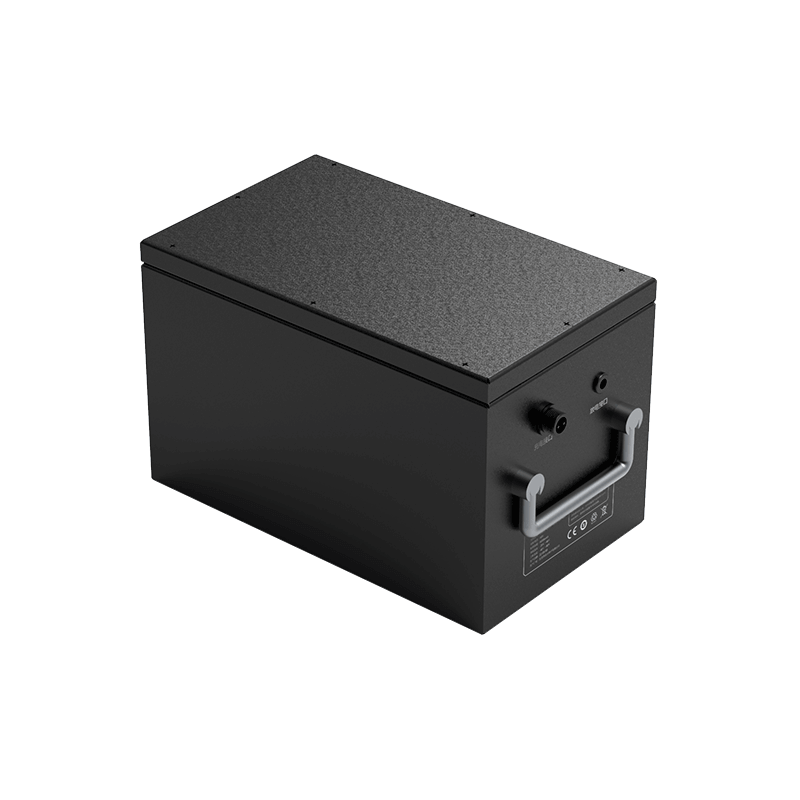

26650 48V 9000mAh Low Temperature Charge and Discharge Lithium Iron Phosphate Lithium Battery for Communication Equipment

Customization | Free Battery Solution

Product Detail

Product number: 35AQ547-01

Cell model: 26650-3300mAh-3.2V

Battery specification: 26650-15S3P-9000mAh-48V

Product size: 250*150*160mm

Nominal voltage: 48V

Nominal capacity: 9000mAh

Internal resistance of finished product: ≤200mΩ

Charging voltage: 54V

Charging current: ≤4.5A

Discharge current: ≤2.0A

Discharge cut-off voltage: 30V

Battery weight: 6000g

Charging temperature: -20 ~ 45℃

Discharge temperature: -40 ~ 60 ℃

Storage temperature: -20 ~ 35 ° C

Battery case: ABS+PC case aluminum alloy case

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over temperature protection, over current protection,ESD protection, etc.

Application: Communication equipment, portable communication equipment

Product Feature

1.ABS + PC shell and aluminum alloy shell increases the reliability and stability of the battery;

2.The battery uss special cell stent assembly, epoxy board protection, special nickel piece connection, nice shock impact resistant performance;

3.Connector plug output: Use aviation plug output mode to increase conductive reliability;

4.Battery protection and control: Adopt special lithium battery protection chipwith nice stability, high precision monitoring, accurate control and temperature protection to maximize the elimination of safety risks;

5.The battery has nice safety, good charge and discharge in low temperature performance, and support - 40 ℃ discharge, discharge of 90% or more;

6.The battery has nice safety, good discharge performance and long cycle life.

7.The battery has long cycle life,which accord with low carbon, energy saving, environmental protection value concept;
