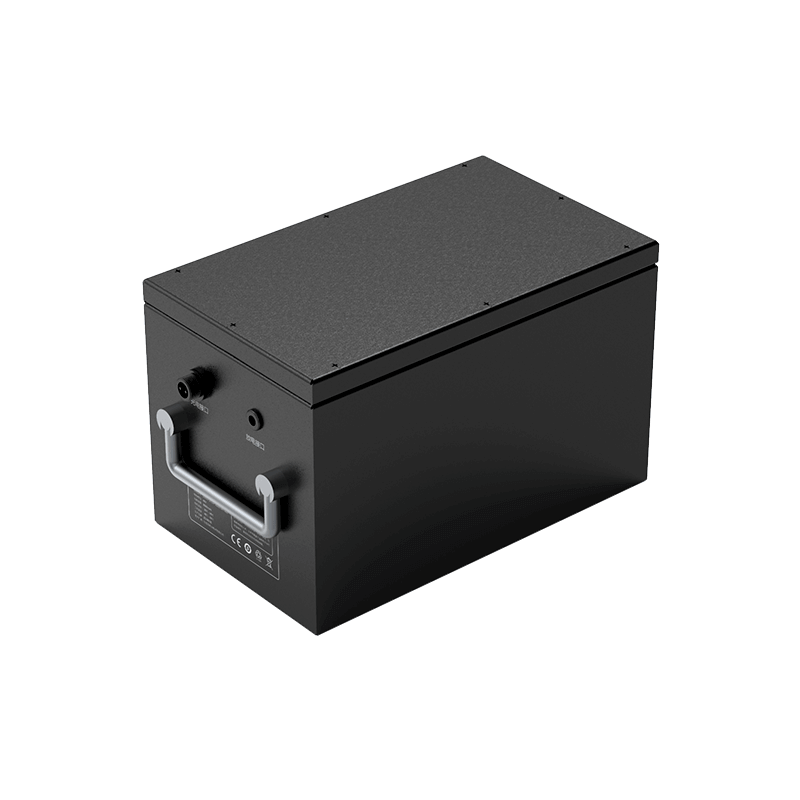

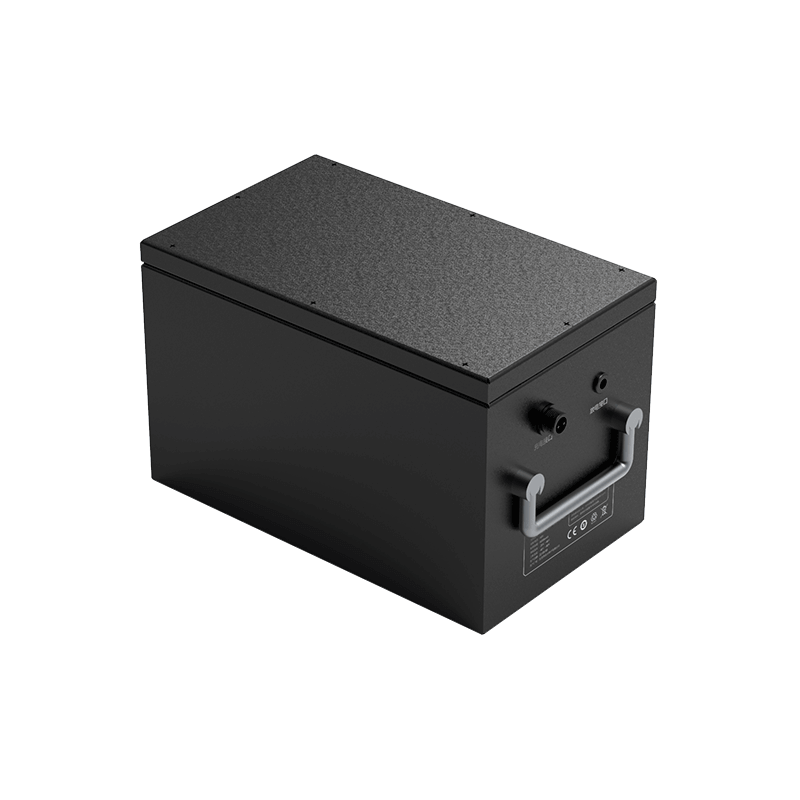

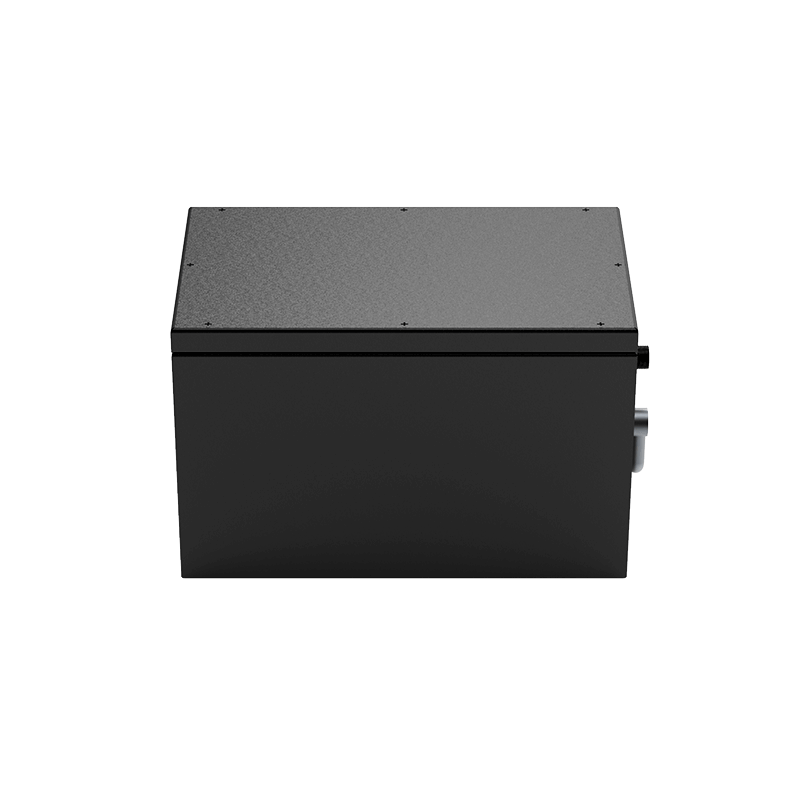

Custom Lithium ion Battery Pack
Product number: 35AQ547-02
Cell model: 26650-3400mAh-3.2V
Battery specification: 26650-15S3P-9600mAh-48V
Product dimension: 250*150*160mm
Nominal voltage: 48V
Nominal capacity: 9600mAh
Internal resistance of finished product: ≤200mΩ
Charging voltage: 54V
Charging current: ≤4.5A
Discharge current: ≤2.0A
Discharge cut-off voltage: 30V
Battery weight: 6000g
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 ~ 35 ° C
Battery case: ABS+PC aluminum alloy case
Output mode: aviation plug
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over temperature protection, over current protection,ESD protection, etc.
Application: Communication equipment, portable communication equipment
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
