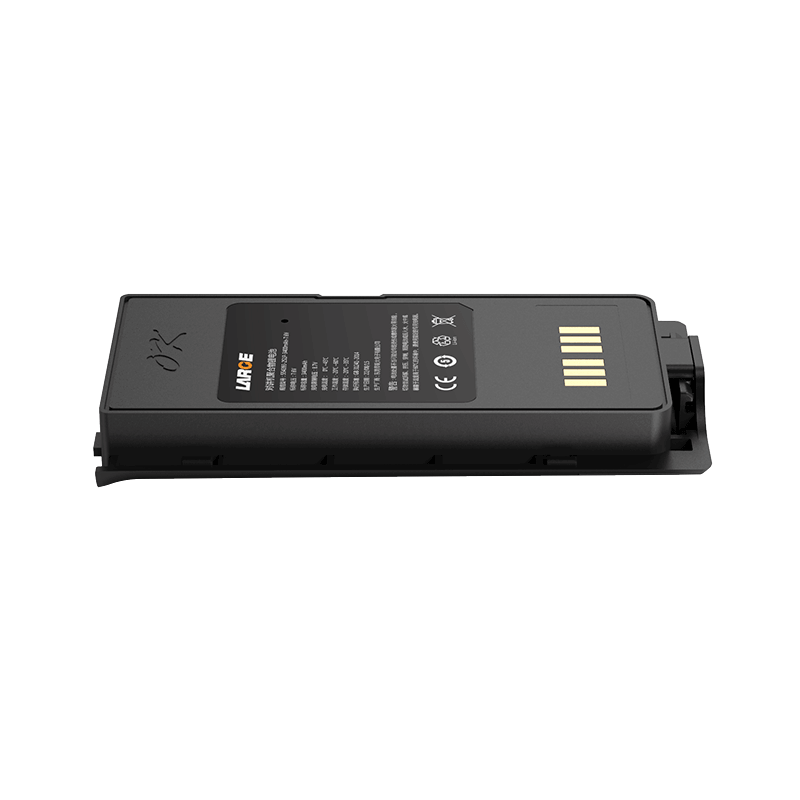

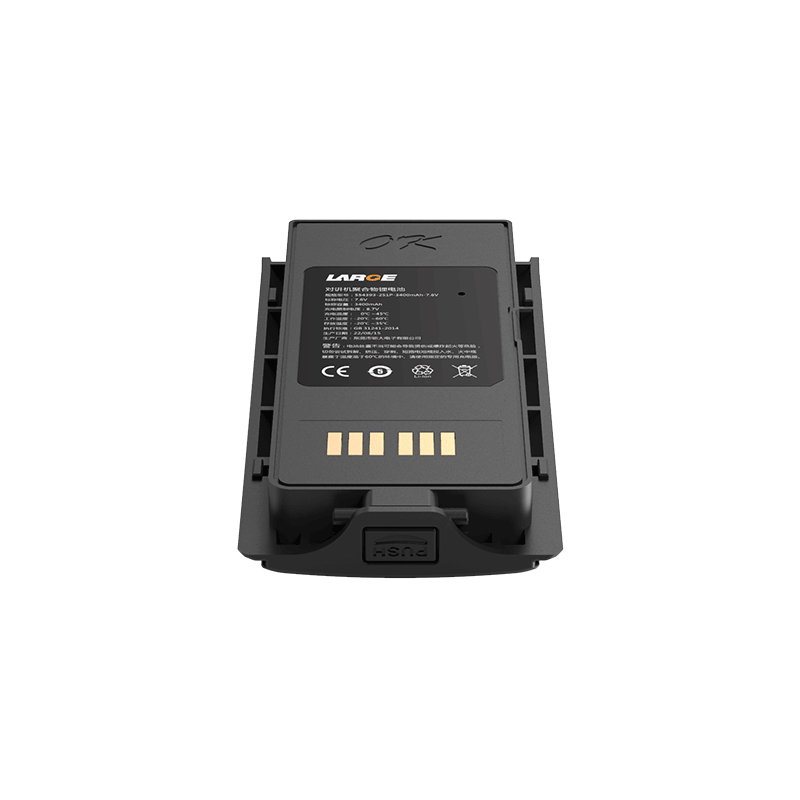

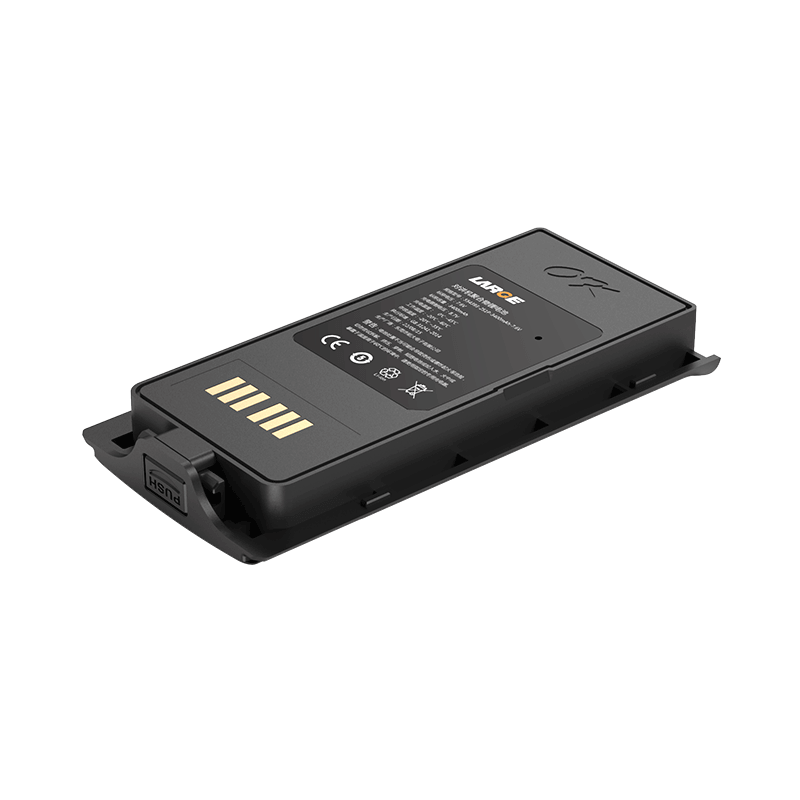

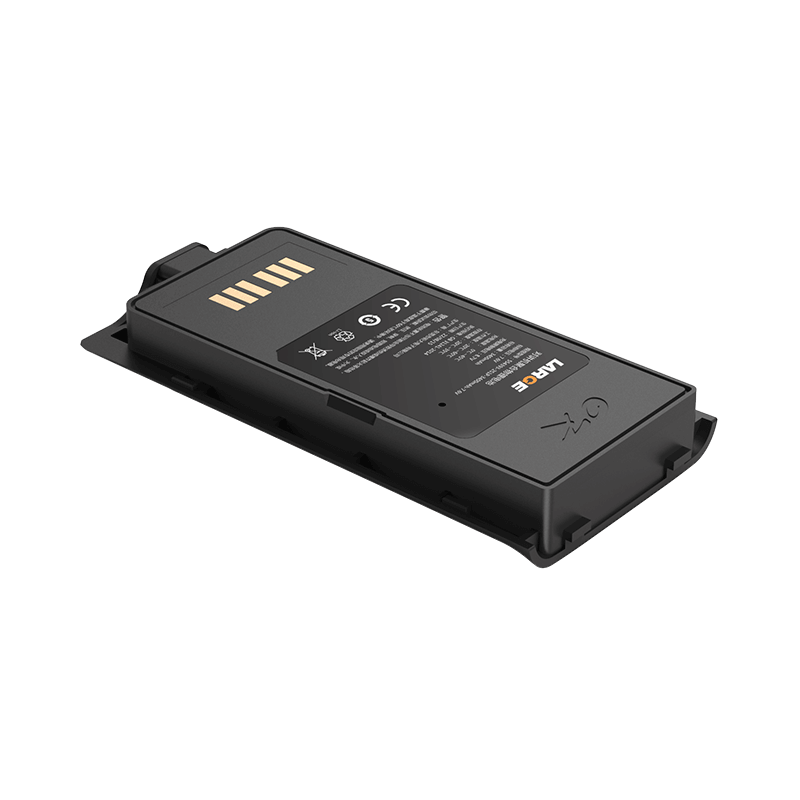

554393 7.6V 3400mAh Polymer Lithium Battery for Interphone

Customization | Free Battery Solution

Product Detail

Product number: 04BQ118-41

Cell model: 554393-3400mAh-3.8V

Battery specification: 554393-2S1P-3400mAh-7.6V

Product size: 119*61*17mm

Nominal voltage: 7.6V

Nominal capacity: 3400mAh

Internal resistance of finished product: ≤250mΩ

Charging voltage: 8.7V

Charging current: ≤1.7A

Discharge current: ≤3.4A

Discharge cut-off voltage: 6.0V

Battery weight: 150g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 35 ° C

Battery case: ABS+PC case

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection,ESD protection, etc.

Application: Intercom equipment, communication equipment, portable equipment

Product Feature

1.ABS + PC case increases the reliability and stability of the battery, and is easy to install;

2.The battery uses IP65 waterproof design, increasing the silicone fixed resistance of shock impact;

3.Hardware output: Use gold-plated shrapnel output method, in order to increase conductive reliability;

4.Battery protection and control: Adopt special lithium battery protection chip with good stability, high precision monitoring and accurate control,so as to maximize the elimination of safety hazards;

5.The battery has good safety, nice discharge performance and long cycle life.

6.The battery has long cycle life, which accord with low carbon, energy saving, environmental protection value concept;
