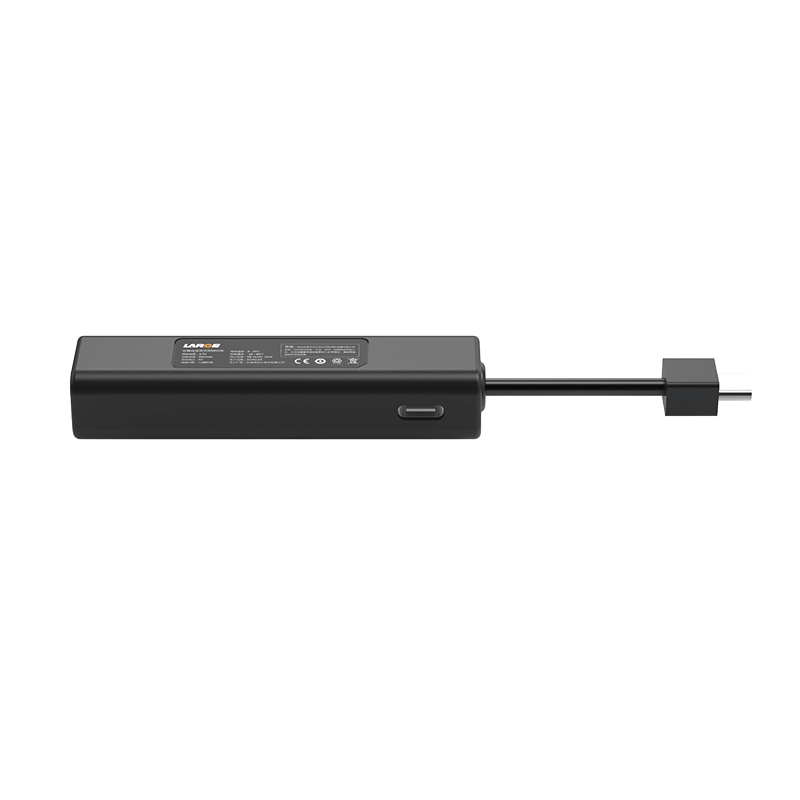

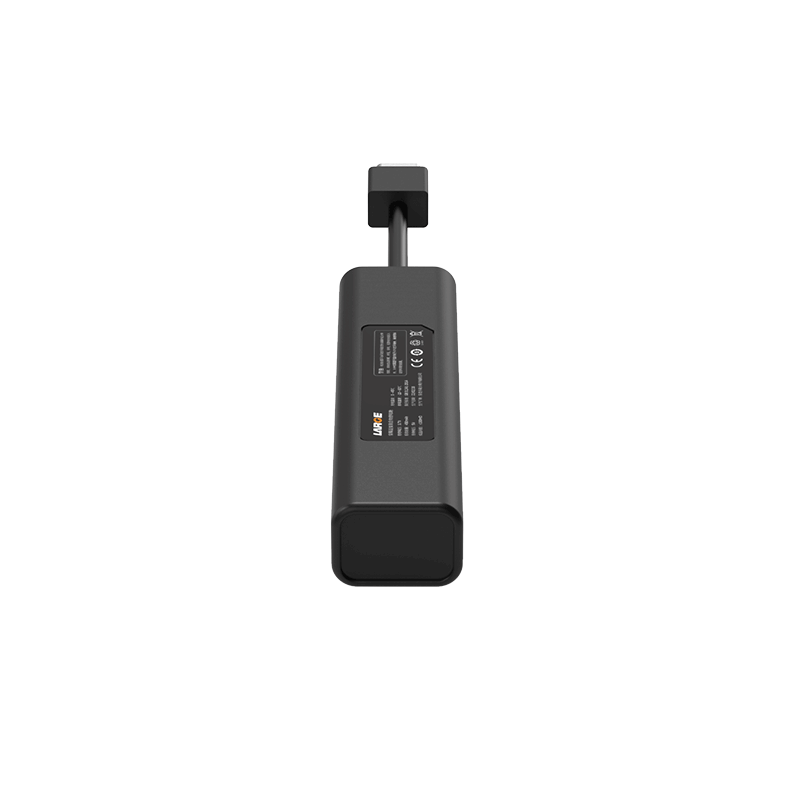

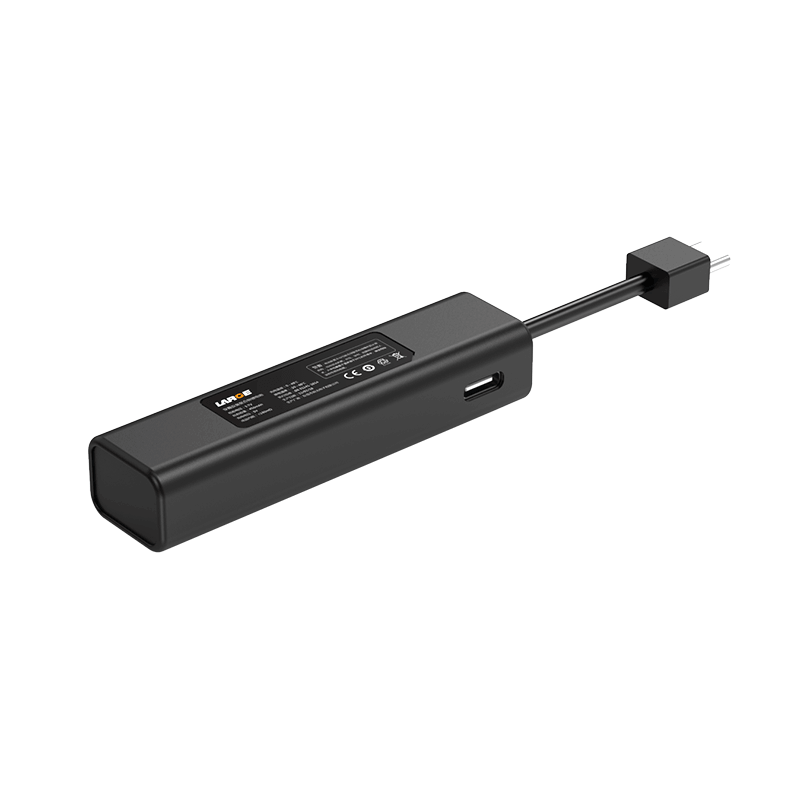

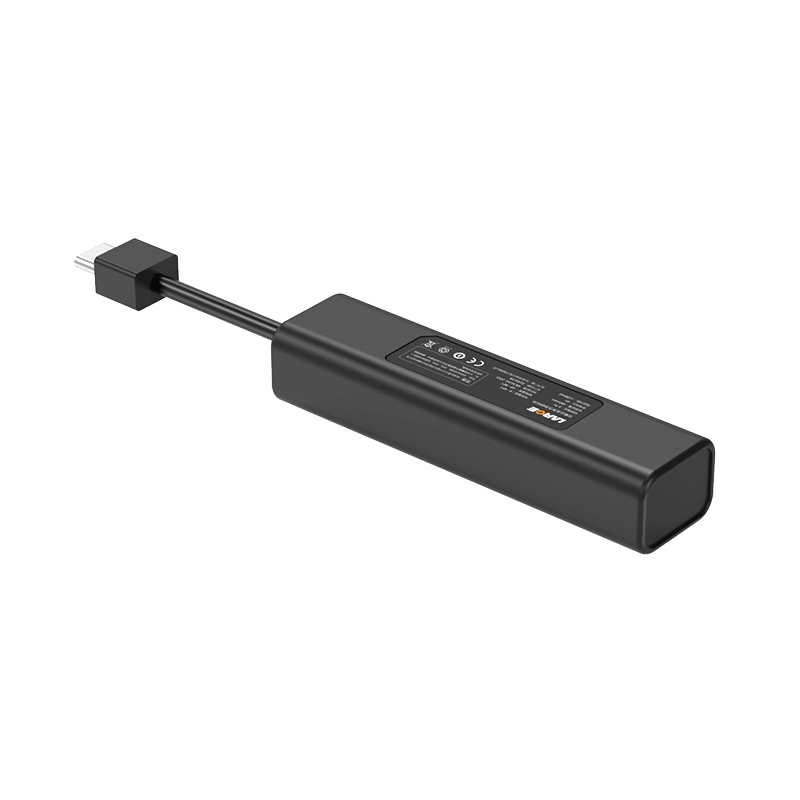

Product number: 36AQ517-20
Cell model: JD701356-450mAh-3.7V
Battery specification: JD701356-1S1P-450mAh-3.7V
Product size: Length 78× width 20× height 15 (±0.3mm)
Nominal voltage: 3.7V
Nominal capacity: 450mAh
Charging voltage: 5V
Charging current: 450mA
Discharge current: 285mA
Discharge cut-off voltage: 2.8V
Internal resistance of finished product: ≤180mΩ
Battery weight: ≤100g
Charging temperature: 0 ~ 45℃
Discharge temperature: -10 ~ 60℃
Battery package: plastic case, fixed with screws
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: Wearable devices
1.Plastic shell with screws is simple and reliable, and is easy to be installed.
2.Charging scheme design, intelligent logical UI control and accurate power display
3.Output: terminal: Use national standard UL wire output mode, in order to increase conductive reliability;
4.Battery protection management: imported famous brand protection chip with high stability, nice precision monitoring and accurate control, so as to eliminate safety hidden trouble.
5.The battery has good safety, nice discharge performanceand long cycle life.
7.The battery has long cycle life, accord with low carbon, energy saving and environmental protection value concept;
