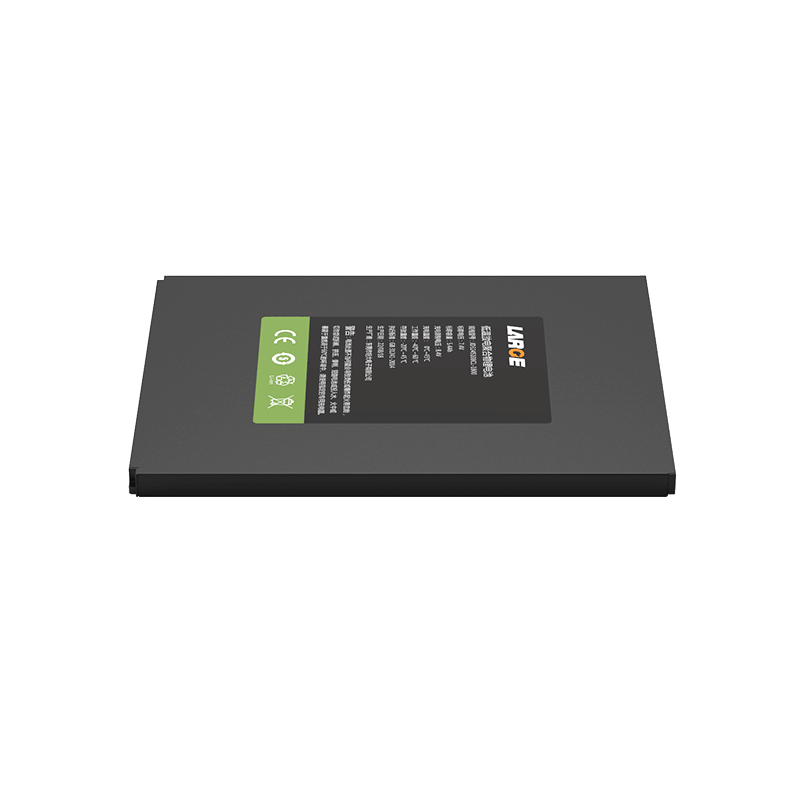

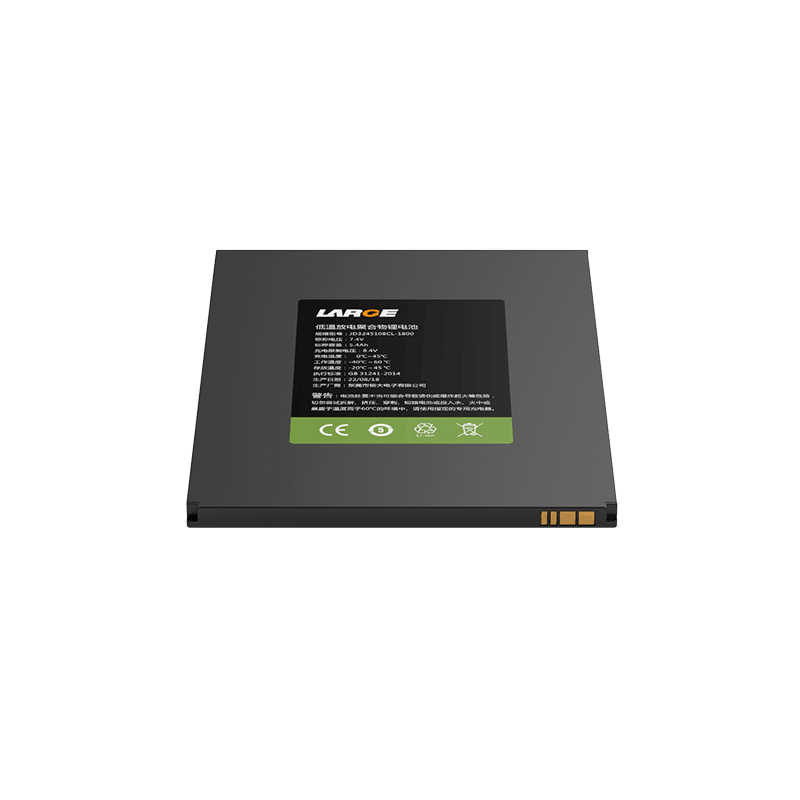

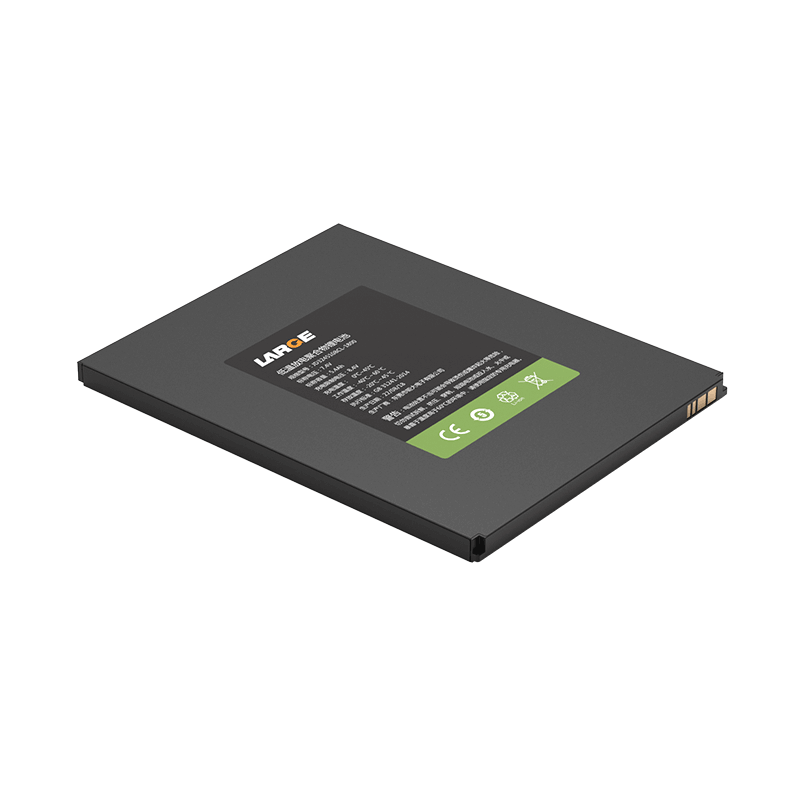

Custom Lithium ion Battery Pack
Product number: 35AQ528-05
Cell model: JD3245108CL-1800
Battery specification: 7.4V-5.4Ah
Product size: 150.5mm×116.5mm×7.8mm
Nominal voltage: 7.4V
Nominal capacity: 5.4Ah
Charging voltage: 8.4V
Charging current: 5A
Discharge current: 5A
Discharge cut-off voltage: 5V
Internal resistance of finished product: ≤180mΩ
Battery weight: ≤280g
Charging temperature: 0 ~ 45℃
Discharge temperature: -40 ~ 60℃
Storage temperature: -20~+45℃ (less than 1 month) -20~ 35 ℃(less than 3 months); -20~+25℃ (less than 6 months)
Battery case: plastic case
Communication mode: I2C communication protocol
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, over temperature protection, etc.
Application: laptop
