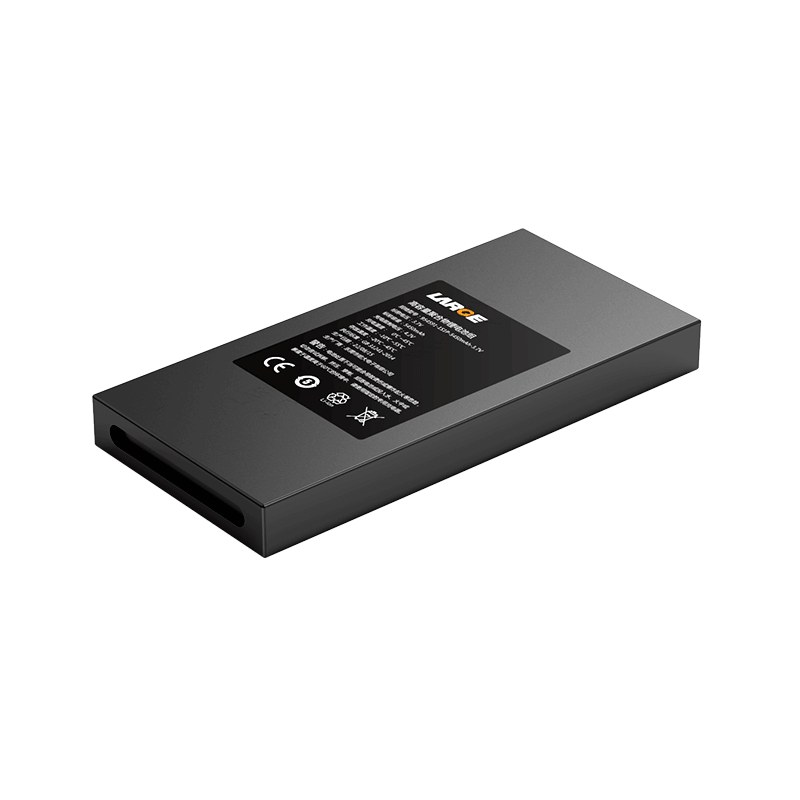

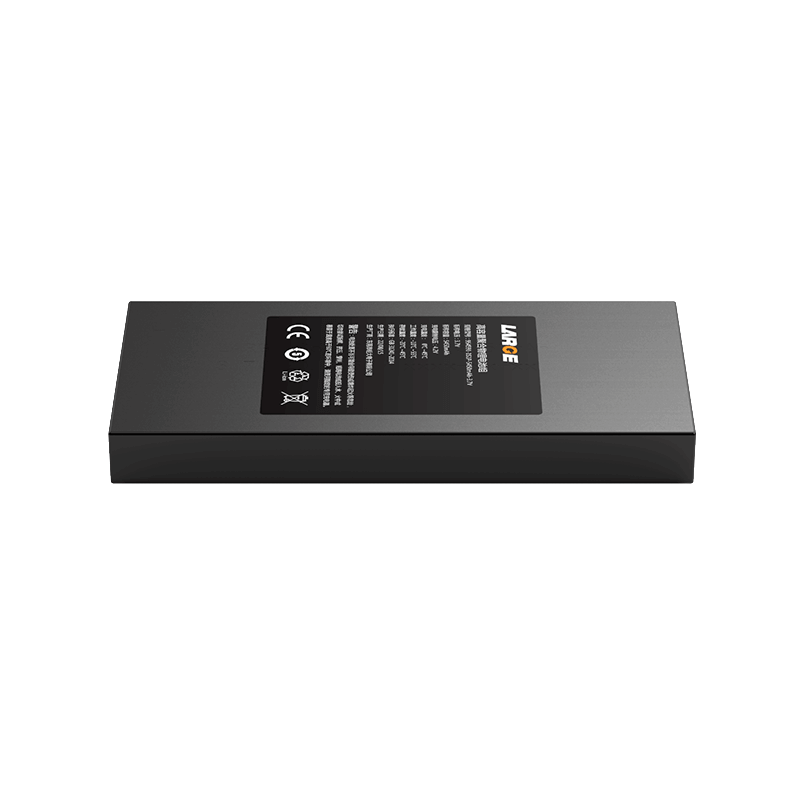

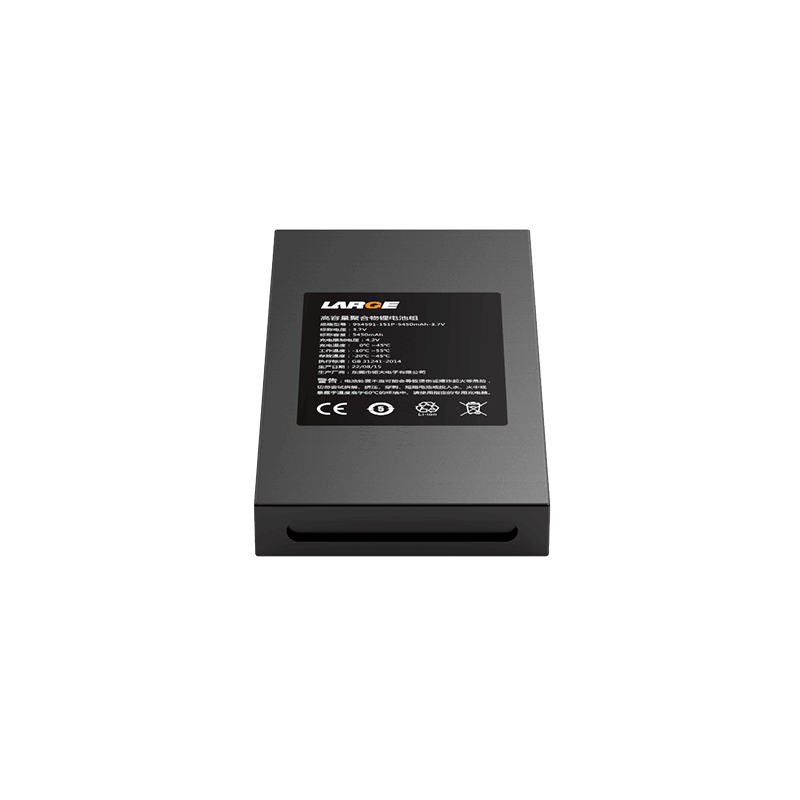

Custom Lithium ion Battery Pack
Product number: 41DZ003-02B
Cell model: 954591-5450mAh/3.7V
Battery specification: 954591-1S1P-5450mAh-3.7V
Nominal voltage: 3.7V
Nominal capacity: 5.45Ah
Charging voltage: 4.2V
Charging current: ≤2.7A
Discharge current: 4A
Instantaneous discharge current: 5A
Discharge cut-off voltage: 3V
Internal resistance of finished product: ≤180mΩ
Battery weight: 60g
Packaging mode: PVC
Product size: Max95×46×10mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -10 ~ 55℃
Storage temperature: -20 ~ 45 ° C
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application field: Medical equipment
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
