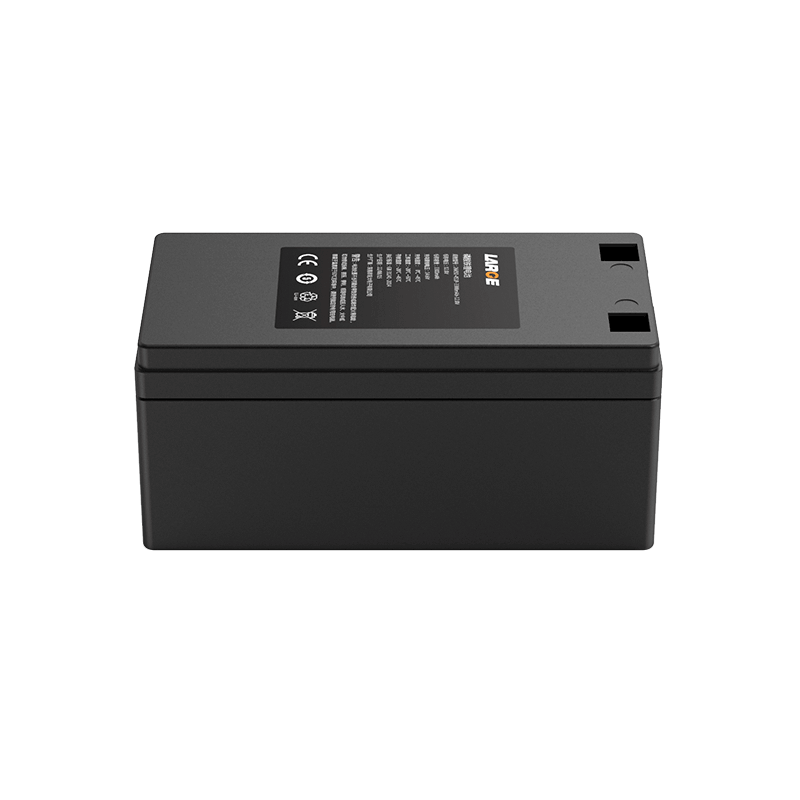

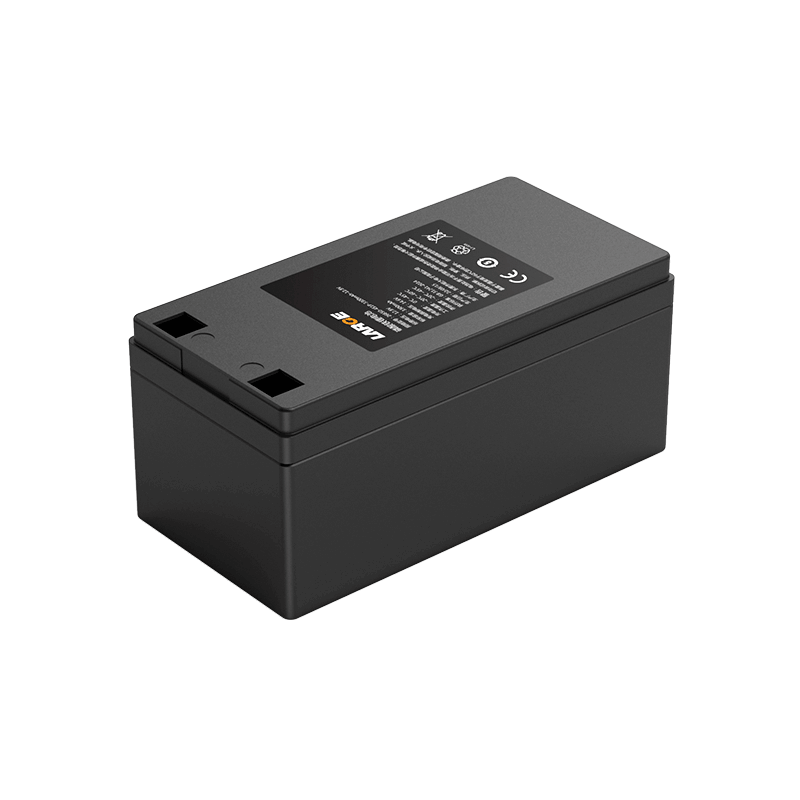

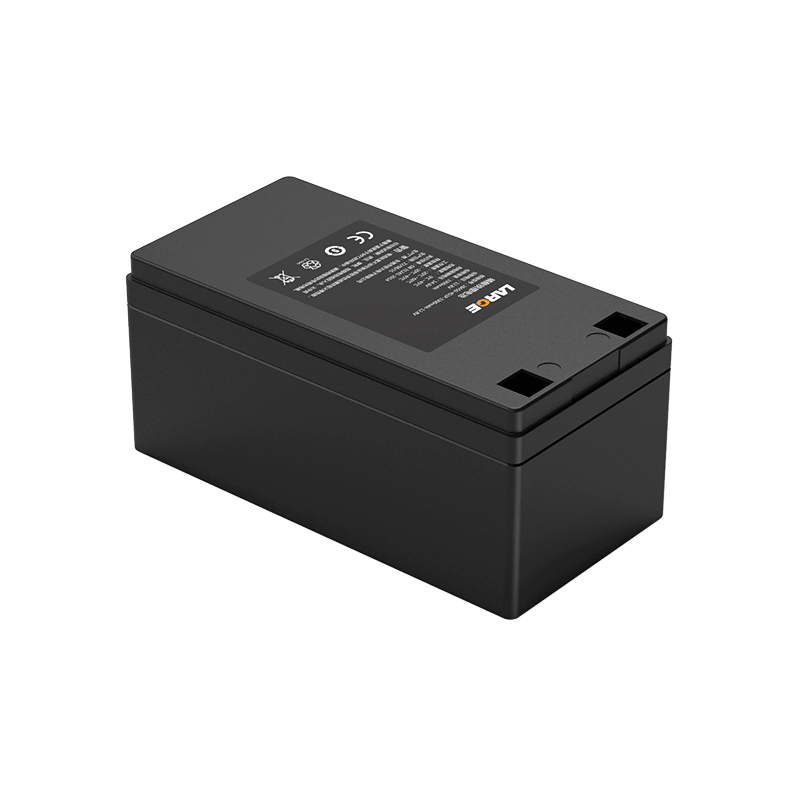

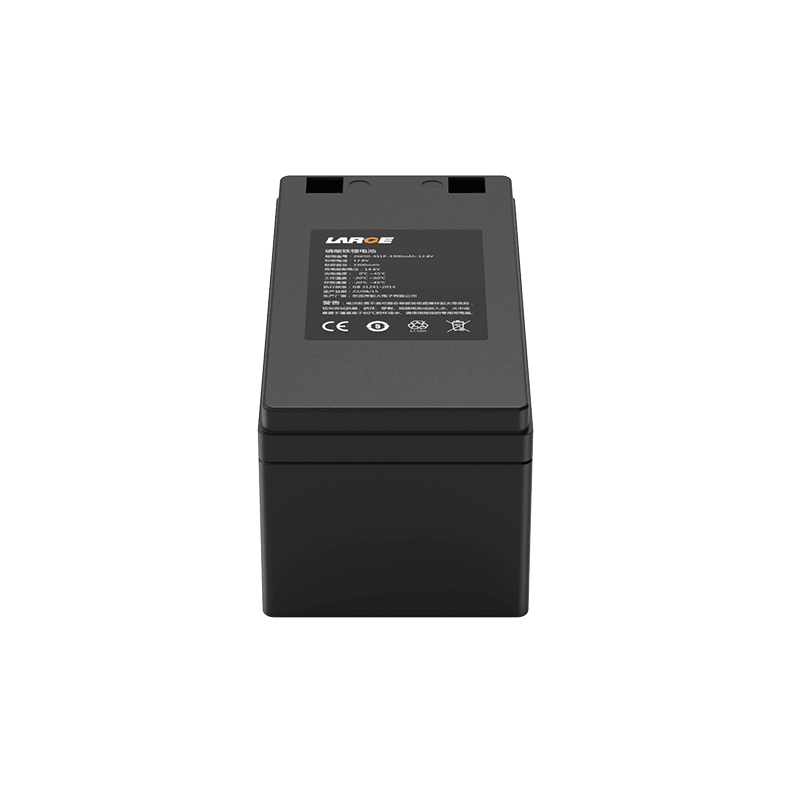

Custom Lithium ion Battery Pack
Product number: 33DZ023-01
Cell type: 26650/3.2V/3400mAh
Battery specification: 26650-4S1P-3300mAh-12.8V
Nominal voltage: 12.8V
Nominal capacity: 3300mAh
Charging voltage: 14.6V
Charging current: ≤1650mA
Discharge current: ≤3300mA
Instant discharge current: 6-13A
Discharge cut-off voltage: 8.8V
Internal resistance of finished product: ≤200mΩ
Battery weight: 400G
Product size: 135*68*60mm (L*W*H)
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 ~ 45 ° C
Battery case: plastic case
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, over temperature, etc
Application: Backup power supply
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
