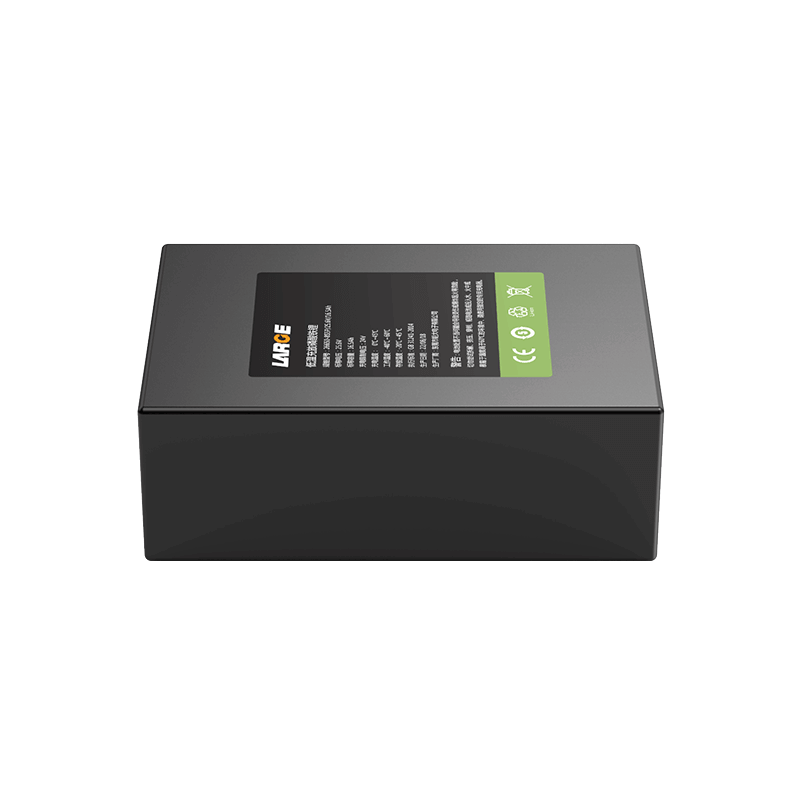

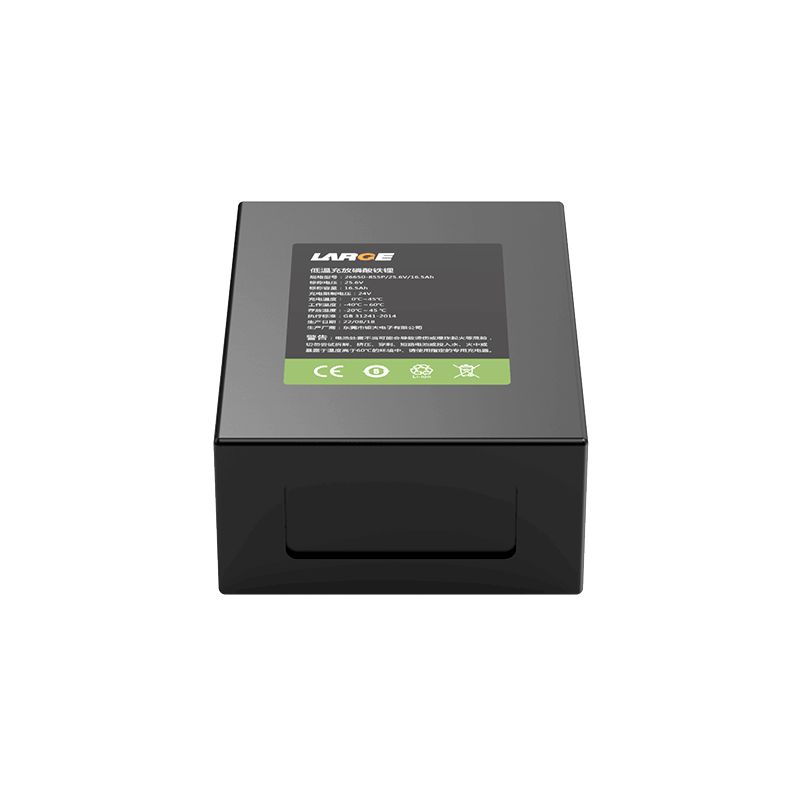

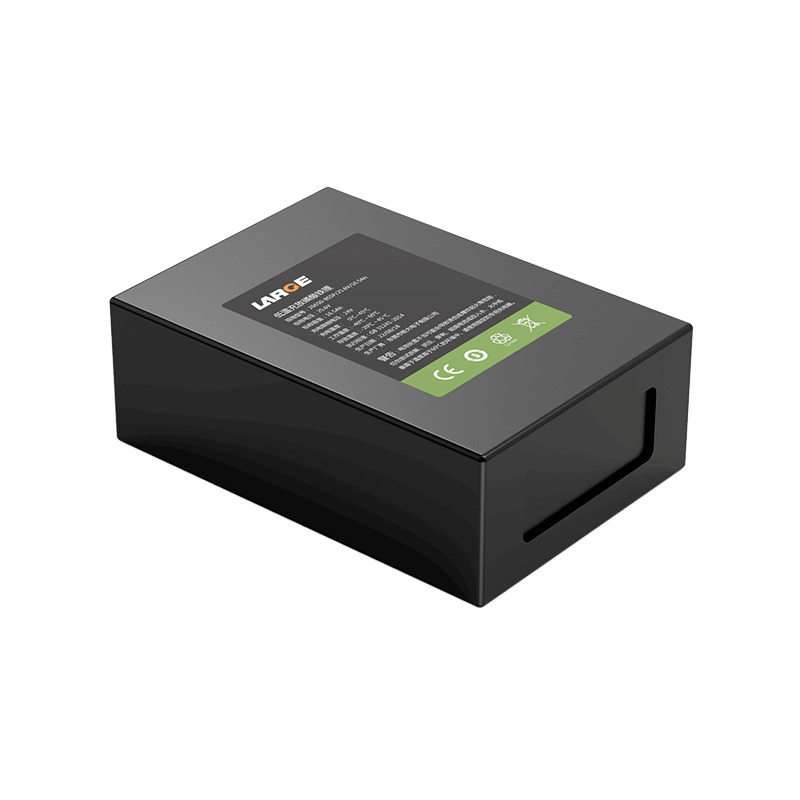

Custom Lithium ion Battery Pack
Project number: 37DZ079-05
Cell model: 26650/3.2V/3.3Ah
Battery specification: 26650-8S5P/25.6V/16.5Ah
Nominal voltage: 25.6V
Nominal capacity: 16.5Ah
Charging input voltage: 24V
Charging current: 3A (constant current and constant voltage management)
Discharge voltage: 16-29.2(voltage regulator)
Discharge cut-off voltage: 16V
Internal resistance of finished product: ≤200mΩ
Battery weight: 13.5Kg
Product size: 80*162*230mm
Charging temperature: -20 ~ 45℃
Discharge temperature: -40 ~ 60℃
Storage temperature: -20 ~ 45 ° C
Temperature protection: 65℃±5℃
Battery case: bracket PVC construction
Communication: 485 communication with LCD display
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, temperature protection, etc.
Application: Industrial equipment, backup power supply
