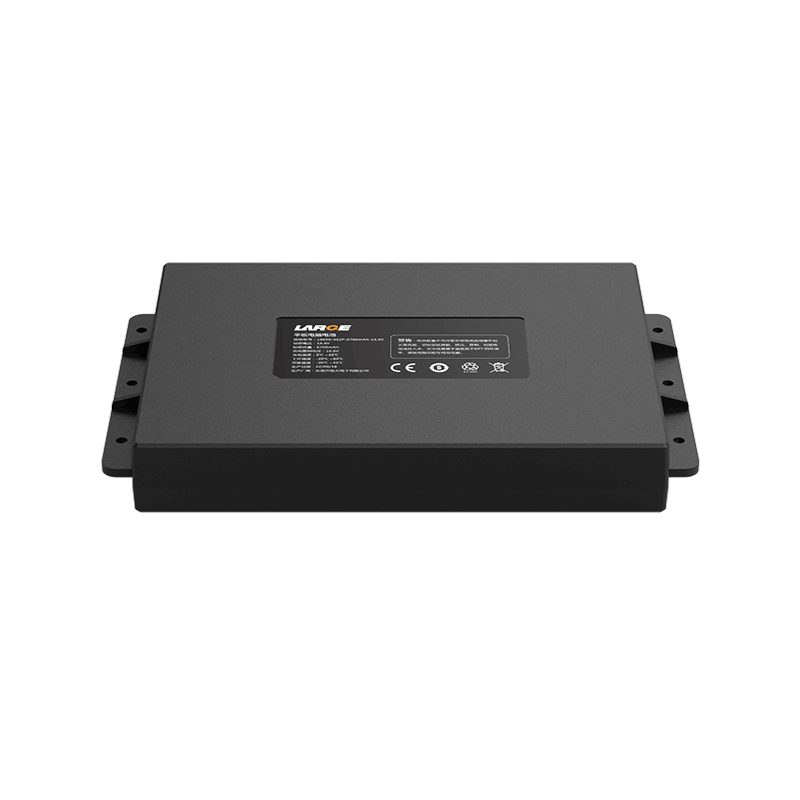

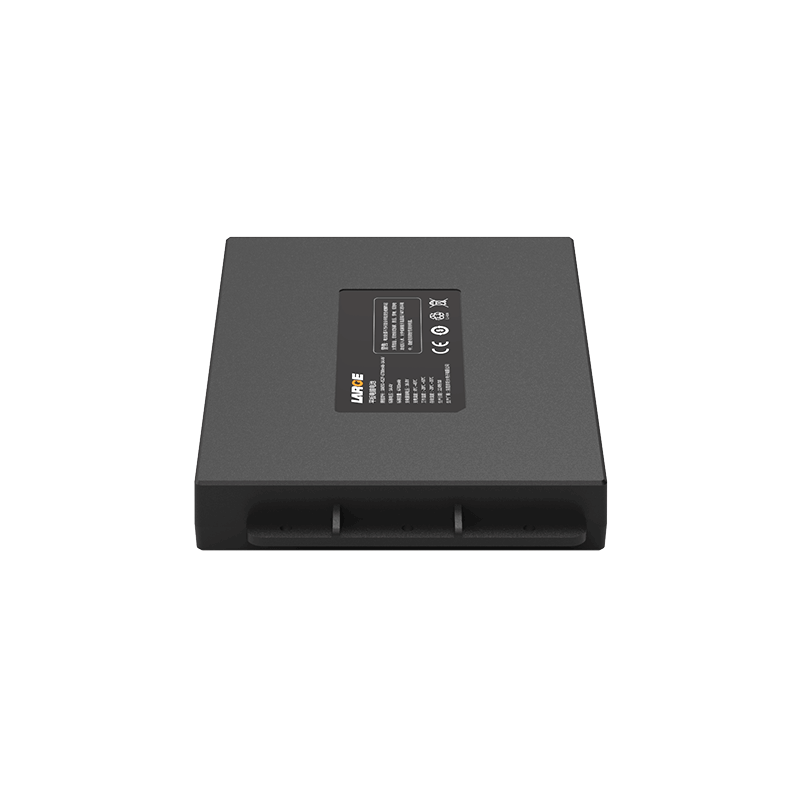

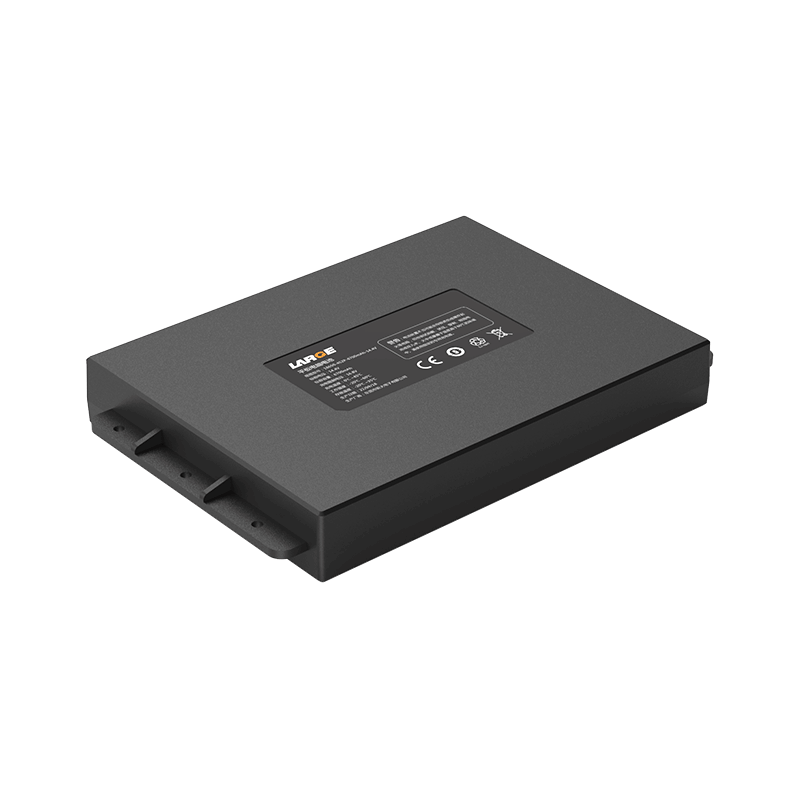

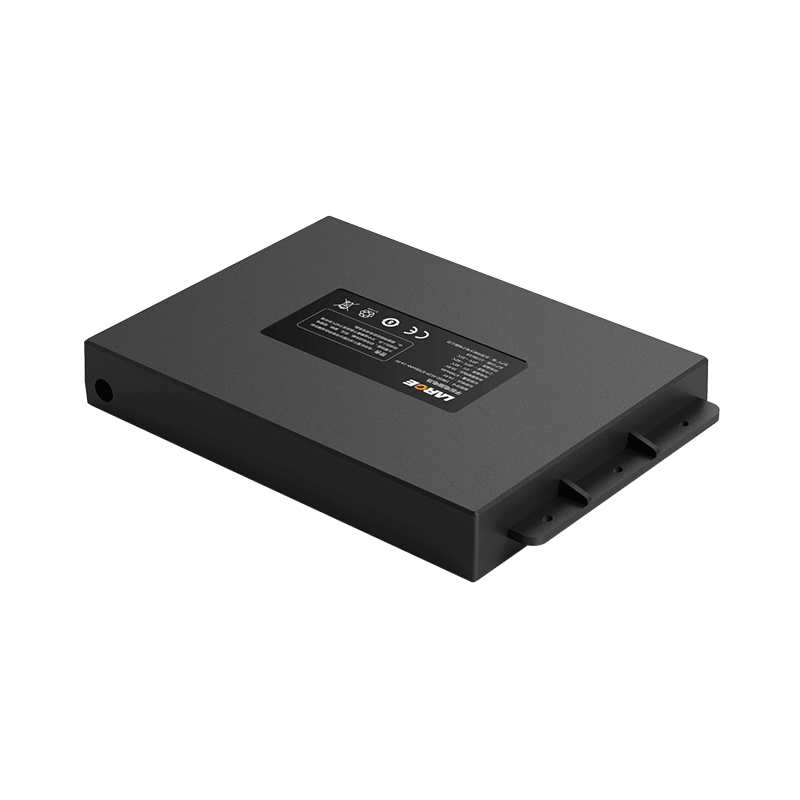

Custom Lithium ion Battery Pack
Product number: 01DQ0136-03
Cell model: 18650-3350mAh-3.6V
Battery specification: 18650-4S2P-6700mAh-14.4V
Product size: 120*180*24mm
Nominal voltage: 14.4V
Nominal capacity: 6700mAh
Internal resistance of finished product: ≤150mΩ
Charging voltage: 16.8V
Charging current: ≤3A
Discharge current: ≤4.5A
Discharge cut-off voltage: 10.8V
Battery weight: 550g
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60 ℃
Storage temperature: -20 ~ 35 ° C
Battery package: engineering plastic ABS+PC
Battery case: ABS+PC case
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over temperature protection, over current protection,ESD protection, etc.
Application: Tablet computer, industrial notebook, portable computer equipment
Product Features
1.ABS + PC case increases the reliability and stability of the battery;
2.Connector plug output: Use MOLEX plug output mode to increase conductive reliability;
3.Battery protection and control: Adopt special lithium battery protection chip with high stability, good precision monitoring, accrate control, temperature protection and other functions, so as to maximize the elimination of safety risks;
4.Data communications management: Use TI - SMBus software management chip, SMBus communication data transmission, accurate temperature control precision, so as to eliminate the potential safety problems.
5.The battery has good safety, nice discharge performance and long cycle life.
6.The battery has long cycle life, accord with low carbon, energy saving, environmental protection value concept.
